Laboratory Equipment-Standard Muffle Furnace
,

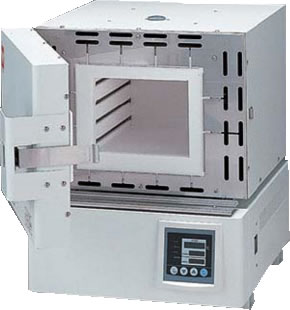

FO100CR/110CR/200CR/210CR/300CR/310CR/410CR Standard Muffle Furnace Yamato

Add to Wishlist
Compare

$2,391.40 – $3,114.10

Clear
Add to Wishlist

Yamato muffle furnaces are recognized for their durability and tightly sealed doors which is of utmost importance when the furnace reaches their maximum temperatures of over 1000°C. The FO Series represents the standard type of muffle furnaces that use a microprocessor-controlled thermoregulator characterized by excellent repeatability. They are used for high temperature applications such as fusing glass, creating enamel coatings, ceramics, soldering and brazing metals, alloying, fusion, heat treating, melting, annealing, metallurgy, mining, environmental testing, pharmaceutical development, in R&D and more.

Features

  • Wide selection of space-saving compact units with maximum inner capacity

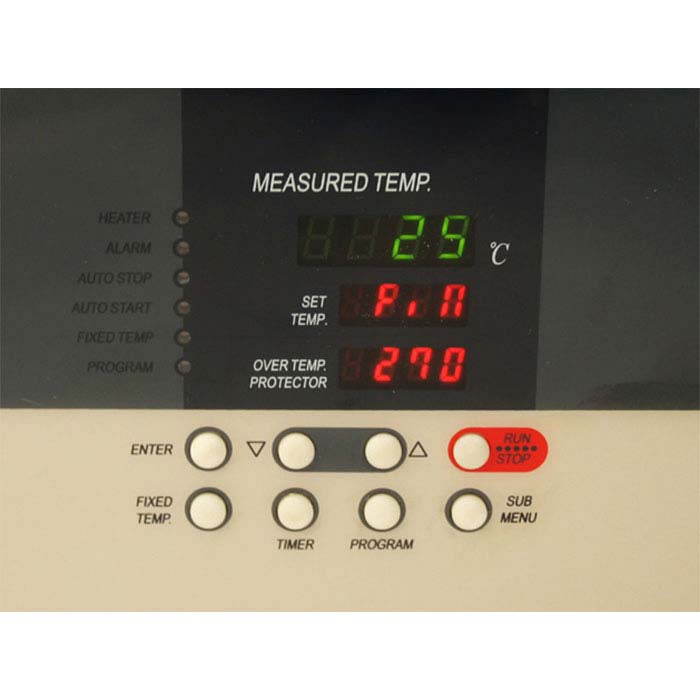

  • Easy to use controller
  • Excellent heat tightness with a firmly sealed chamber door
  • High temperature accuracy at ±2.0°C
  • Program operation of maximum of 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns
  • Safety features include self-diagnostic functions, calibration off-set, lock function, auto-recovery after power failure, earth leakage breaker and automatic overheat prevention device

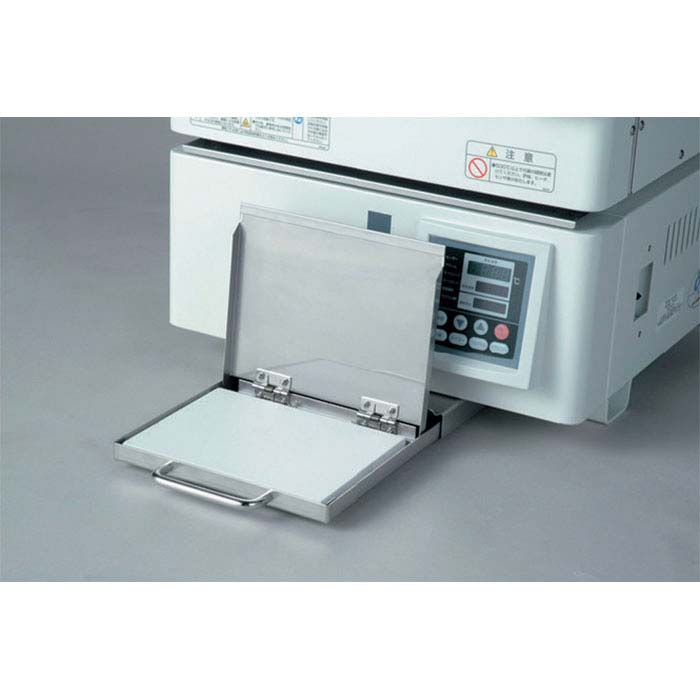

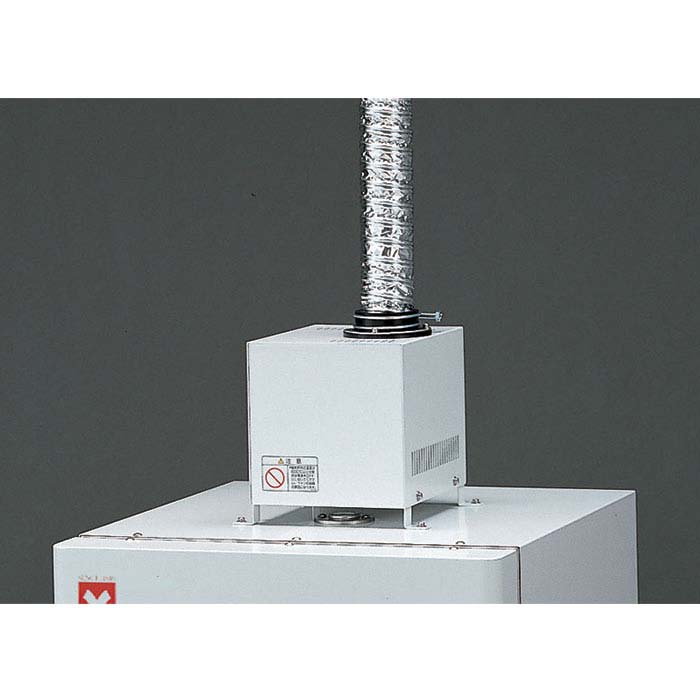

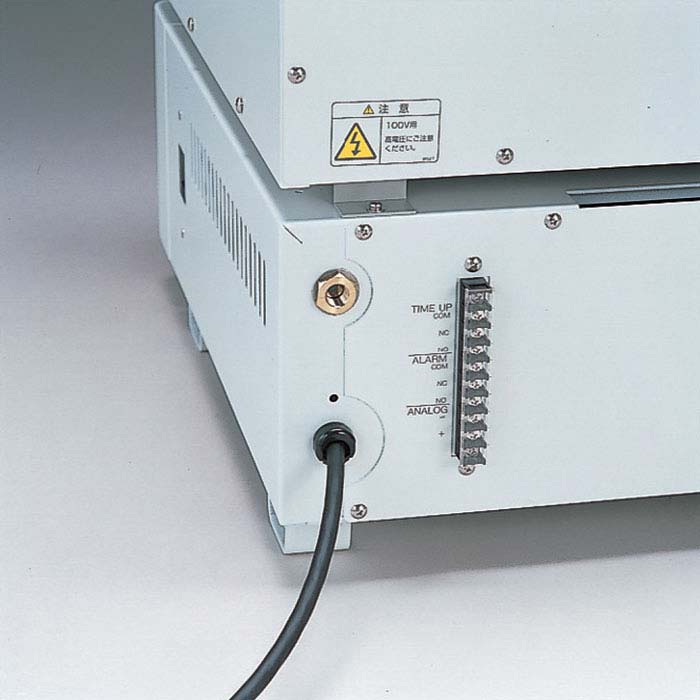

  • Selectable options include exhaust system unit, N₂ gas loading device (with flow meter), temperature output terminal, time up/alarm output terminal and sample tray
  • Upgraded with long life R-thermocouple sensors
  • Designed with communication port
Model FO100CR
FO110CR		 FO200CR
FO210CR		 FO300CR
FO310CR		 FO410CR
Operating Temp. Range 100~1150°C
Temp. Control Accuracy ±2°C (at 1150 ° C)
Max. Temp. Reaching Time ~60min. ~60min. ~70min. ~70min.
Exterior Material Cold rolled steel plate with baked-on melamine resin finish
Internal Material Ceramic fiber
Sensor R-thermocouple
Heater Iron-chrome wire
1kW 1.5kW 2kW 2.2kW
Exhaust Port ø20mm (top)
Cooling Fan Type Axial fan motor
Temp. Controller PID controll by microprocessor
Temp. Setting/Display Method Digital setting by▲/▼ keys / Digital display
Operation Function Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns)
Additional Functions Calibration off-set, power failure compensation, lock, RS485 communication interface
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Safe Device Self diagnostic (memory error, heater disconnection, sensor error, SSR short curcuit), Electric leakage breaker, Overheat prevention device
Internal Dimensions WxDxH 100×150×100 mm 100×250×150 mm 200×250×150 mm 200×300×150 mm
External Dimensions WxDxH 346×405×517 mm 346×505×567 mm 446×505×567 mm 446×554×567 mm
Internal Capacity 1.5L 3.75L 7.5L 9L
Power Source (50/60Hz) AC115V 10A
AC220V 5A		 AC115V 14.5A
AC220V 7.5A		 AC115V 19A
AC220V 9.5A		 AC220V 10.5A single phase
Weight ~24kg ~30kg ~37kg ~38kg
SKU: FO100CR/110CR/200CR/210CR/300CR/310CR/410CR Categories: , Tags: , , , , , , , , Brand:
Weight N/A
Dimensions N/A
Product

FO100CR (Muffle Furnace With Communication Port 1.5L 115V 10A 50/60hz), FO110CR (Muffle Furnace With Communication Port 1.5L 220V 5A 50/60hz), FO200CR (Muffle Furnace With Communication Port 3.75L 115V 14.5A 50/60hz), FO210CR (Muffle Furnace With Communication Port 3.75L 220V 7.5A 50/60hz), FO300CR (Muffle Furnace With Communication Port 7.5L 115V 19A 50/60hz), FO310CR (Muffle Furnace With Communication Port 7.5L 220V 9.5A 50/60hz), FO410CR (Muffle Furnace With Communication Port 9L 220V 10.5A 50/60hz)
