AC505/AC515/AC706/AC716/ AC505A/AC515A – Anaerobic Chambers – Yamato


Compare

$15,832.00$27,245.00

Clear

Description

Create more scientific breakthroughs with our top-grade anaerobic chambers. We can provide you with two types of anaerobic chambers: manual and auto-purge models. Each of our units will bring unparalleled efficiency and competence to your lab

Manual Anaerobic Chambers: Flexibility & functionality

Our manual models come with high-power features such as a catalyst heater, drying train, and molecular sieves. These features will give you flexibility and help you process oxygen-sensitive materials with ease. Not only that, but our manual models also have self-sealing quick disconnects, which can save you time in inspection and maintenance.

Auto Purge Anaerobic Chambers: Convenience & efficiency

Our auto-purge models are designed with smart features, which will bring that convenience you desire in a high-demand lab workspace. They have incredible one-touch features—a “Go Anaerobic” button to start purging and a one-touch button for logging on-screen data. Besides those, our automatic models also show the atmospheric oxygen conditions and oxygen switching to ppm when the O2 levels is < 0.5%.

Yamato Anaerobic Chambers: Ideal for high-demand applications

Our anaerobic chambers are ideal for microbiology, biochemistry, plasma environment, animal science, and electronic sub-assembly applications. You can use our anaerobic chambers to isolate anaerobes, regulate nitrous oxide emissions from manure storage systems, or treat organic waste materials through fermentation.

We want you to create breakthroughs.

Yamato Scientific is committed to creating opportunities in the scientific community. We want you to get lab equipment conveniently and start working on your breakthrough. That’s why we ship these well-designed manual and automatic anaerobic chambers as complete units. All you need to add are your preferred gas and work samples.

Manual Anaerobic Chambers

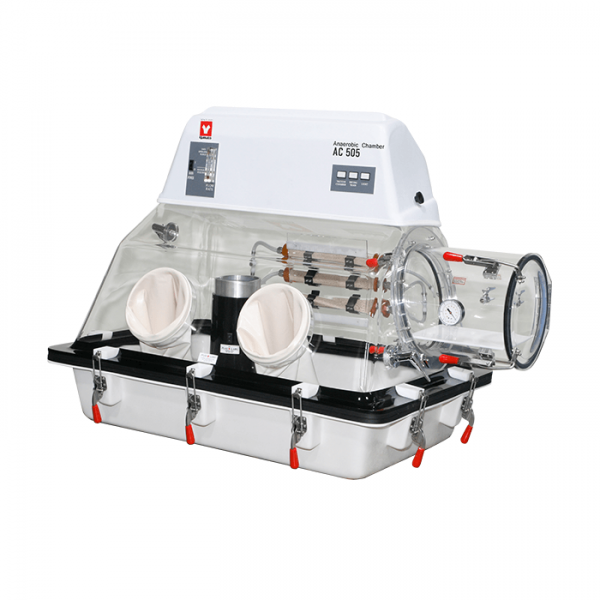

Anaerobic Chamber for Single Operator

  • AC505 (115-120V, 60Hz, 10 amps)
  • AC505 (115-120V, 60Hz, 10 amps)

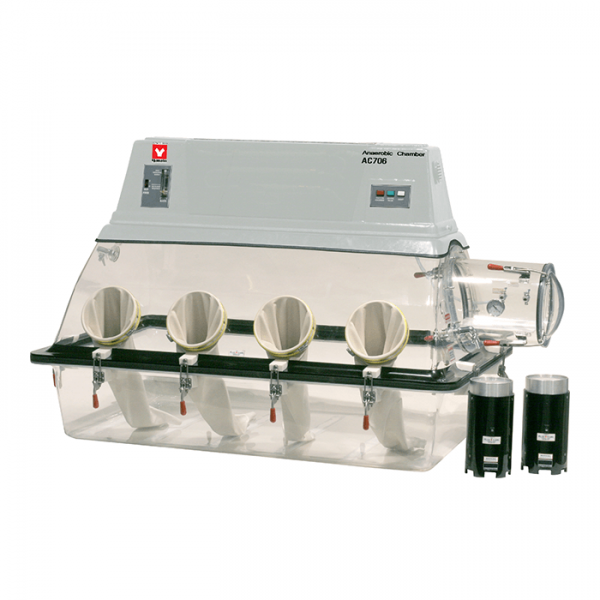

Anaerobic Chamber for Multiple Operators

  • AC706 (115-120V, 60Hz, 10 amps)
  • AC716 (115-120V, 60Hz, 10 amps)

Features of Manual Purge Models

  • Two-vacuum diaphragm pumps for the drying train and the transfer chamber (purging)
  • “Bright Light” illumination system with a 40,000-hour lamp guarantee
  • Self-sealing quick disconnects for changing of the drying train without disturbing the internal atmosphere
  • Adjustable vacuum gauge on transfer chamber
  • Four (4) ground key-cock valves for purging
  • Convenient, backlit controls
  • Anti-wear, adjustable clamps
  • Transfer chamber is 12’ (305 mm) long x 11’ (280 mm) I.D.
  • Electric outlet (socket) strip (UL, CSA, CE)

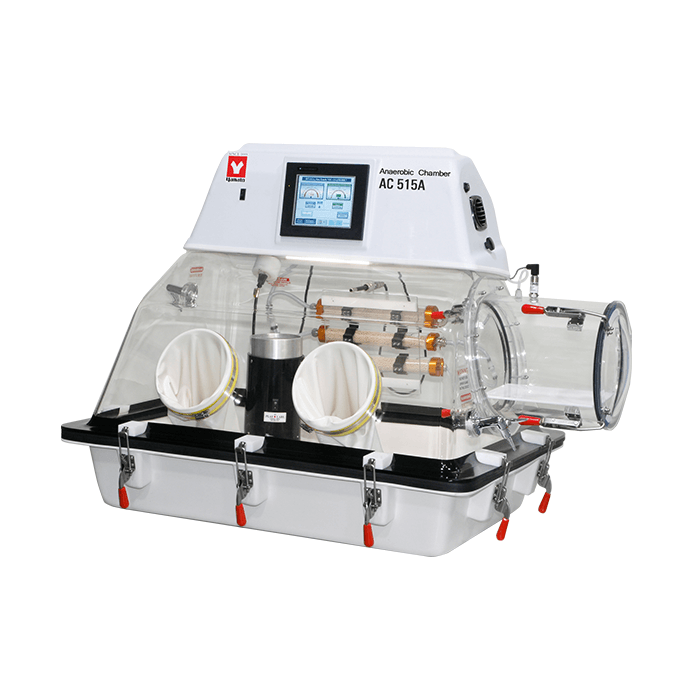

Auto Purge Anaerobic Chambers

  • AC505A (110-120V, 50/60Hz, 5 amps)
  • AC515A (220V, 50/60Hz, 3 amps)

Features of Manual Purge Models

  • One-Touch, “Go Anaerobic” button to initiate purging sequence
  • One-Touch, on-screen data-logging with USB port for long term studies
  • Larger, easy-to-use operator touch screen display, 24 hr. data logging
  • Automatic pressure hold function. Pressure control maintains user selected pressure levels
  • Automatic purging cycles for the main chamber and transfer chamber
  • Continual display of atmospheric oxygen conditions in percentage (%) and parts-per-million (ppm)
  • Oxygen display automatically switches to ppm when the O2 level is <0.5%
  • User selectable gas: Nitrogen and Anaerobic gas mixture
  • High- and low-level alarms with alarm history log
  • Password-protected administration window
  • Optional Rh monitoring and control

Applications

  • Microbiology
  • Biochemistry
  • Animal science studies
  • Plasma environment work
  • Electronic sub-assembly work
Models AC505/515 AC706/716 AC505A/515A
Purge Manual Manual Automatic “One Touch” to automatically create anaerobic atmosphere
Top And Bottom Sections* Top: Formed one-piece clear plastic with “Easy Clean” corners Bottom: Matched die-molded white thermoset with “Easy Clean” corners Optically clear top and bottom sections with
“Easy Clean” corners
Top: Formed one-piece clear plastic with “Easy Clean” corners Bottom: Matched die-molded white thermoset with “Easy Clean” corners
Drying Train* Includes three (3) clear plastic canisters filled with molecular sieve Includes six (6) polycarbonate canisters filled with molecular sieve Includes three (3) clear plastic canisters filled with molecular sieve
White Ambidextrous Hypalon Gloves* One (1) pair Two (2) pairs One (1) pair
Inside Dimension (WxDxH)* 41″ x 28″ x 26″
1040 x 710 x 660 mm
60″ x 38″ x 31″
1520 x 960 x 790 mm
41″ x 28″ x 26″
1040 x 710 x 660 mm
Outside Dimension (WxDxH) (Includes Transfer Chamber 12″ Long) 55″ x 35″ x 38″
1400 x 890 x 970 mm
76″ x 47″ x 42″
1930 x 1190 x 1070 mm
55″ x 35″ x 38″
1400 x 890 x 970 mm
Approximate Volume 17.3 cubic ft. / 489L 40.9 cubic ft. / 1157L 17.3 cubic ft. / 489L
Power Source 120V / 240V 120V / 240V 120V / 240V
Approximate Shipping Weight (Crated) 315 lbs. / 143 kg (AC505)
395 lbs. / 180 kg (AC515)
685 lbs. / 311 kg 315 lbs. / 143 kg (AC505A)
395 lbs. / 180 kg (AC515A)
SKU: AC505/AC515/AC706/AC716/ AC505A/AC515A Categories: , Tags: , , , , , Brand:
Weight N/A
Dimensions N/A
Products

AC-505 (55" TWO GLOVE ANAEROBIC CHAMBER, MANUAL PURGE 115V-120V), AC-515(55" TWO GLOVE ANAEROBIC CHAMBER, MANUAL PURGE, 220V-240V), AC-706 (76" FOUR GLOVE ANAEROBIC CHAMBER, MANUAL PURGE 115V-120V), AC-716 (76" FOUR GLOVE ANAEROBIC CHAMBER, MANUAL PURGE, 220V-240V), AC-505A (55" TWO GLOVE ANAEROBIC CHAMBER, AUTO PURGE 115V-120V), AC-515A (55" TWO GLOVE ANAEROBIC CHAMBER, AUTO PURGE, 220V-240V)
