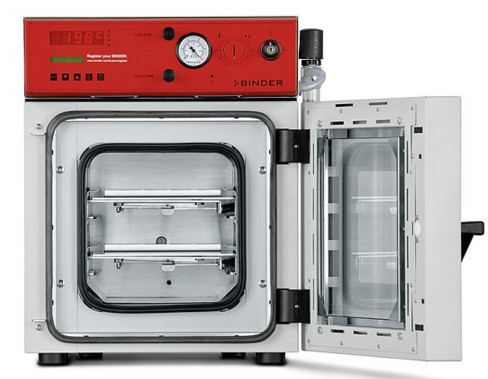

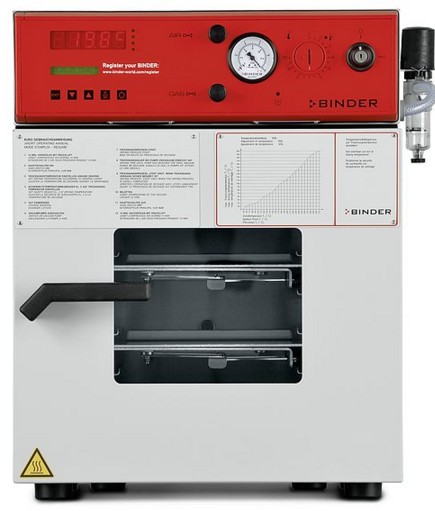

9030-0038 VDL 23 Vacuum Drying Chamber for flammable solvents, 23L, 230V/50-60 Hz/1 ph Binder
A BINDER safety vacuum drying oven of the VDL series ensures maximum safety when drying organic solvents standard with TÜV/GS.
$20,018.00
A BINDER safety vacuum drying oven of the VDL series ensures maximum safety when drying organic solvents standard with TÜV/GS. The inner chamber of the VDL safety vacuum drying oven is designed according to ATEX guidelines 2014/34/EU Ex II -/3G c IIB T3-T1 Gc X.
Important characteristics
- Temperature range: room temperature plus 15 °C to 200 °C
- ATEX compliance chamber’s interior: Ex II -/3G c IIB T3-T1 Gc X
- APT.line™ preheating chamber technology
- Controller with time-segment and real-time programming
- APT.line™ preheating chamber technology
- 2 aluminum expansion racks
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Pressurized instrument panel with compressed air connection
- Pressure control device for heating activated < 125 mbar
- Flame protection gasket
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422
| Designation | VDL023-230V¹ | |
| Option model | Standard | |
| Order number | 9030-0038 | |
| Measures | ||
| Interior volume [L] | 23 | |
| Net weight of the unit (empty) [kg] | 63 | |
| permitted load [kg] | 35 | |
| Load per rack [kg] | 20 | |
| Doors | ||
| Unit doors | 2 | |
| Internal Dimensions | ||
| Width [mm] | 285 | |
| Height [mm] | 285 | |
| Depth [mm] | 295 | |

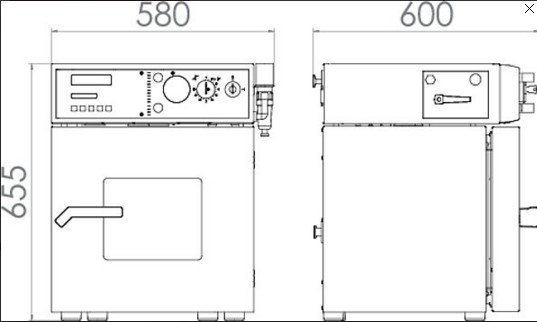

| Outer dimensions | ||
| Width net [mm] | 515 | |
| Height net [mm] | 655 | |
| Depth net [mm] | 500 | |
| Wall clearance back [mm] | 100 | |
| Wall clearance sidewise [mm] | 135 | |
| Viewing window width [mm] | 250 | |
| Viewing window height [mm] | 207 | |
| Fixtures | ||
| Number of shelves (std./max.) | 2/4 | |
| Performance Data Temperature | ||
| Temperature range 15 °C above ambient temperature to [°C] | 200 | |
| Temperature variation at 100 °C [± K] | 1.5 | |
| Temperature fluctuation [± K] | 0,1 ± K | |
| Heating-up time to 100 °C [min] | 65 | |
| Vacuum Data | ||
| Permitted end vacuum [mbar] | 0.01 | |
| Leak rate [bar/h] | 0.01 | |
| Electrical data | ||
| Rated Voltage [V] | 230 | |
| Power frequency [Hz] | 50/60 | |
| Nominal power [kW] | 0.8 | |
| Unit fuse [A] | 10 | |
| Phase (Nominal voltage) [ph] | 1 | |
| Connections | ||
| Vacuum connection with small flange [DN mm] | 16 | |
| Measuring access port with small flange [DN mm] | 16 | |
| Inert gas connection with flow limiter (RP”) | 3/8 | |
| Compressed air connection for pressure-encapsulation [mm] | 8 | |
| Weight | 138.9 lbs |
|---|---|
| Dimensions | 19.7 × 20.3 × 25.8 in |
