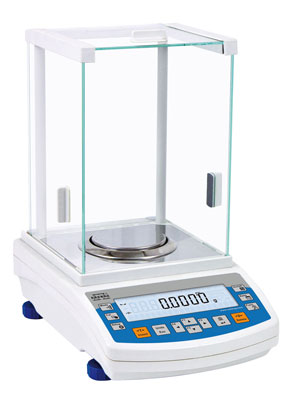

WL-104-1014/WL-104-1018/WL-104-0047/WL-104-0050, Analytical Balance 220g x 0.1mg Radwag AS 60/220.R2
The Radwag AS.R series represent standard level of analytical balances. They feature backlit LCD display. Accuracy and measurement reliability are assured by automatic internal adjustment/calibration system, triggered by time or temperature changes.
$1,286.00 – $1,628.00
The Radwag AS.R series represent standard level of analytical balances. They feature backlit LCD display. Accuracy and measurement reliability are assured by automatic internal adjustment/calibration system, triggered by time or temperature changes.
The AS.R series are offered with two weighing options: 220 or 310g
User has access to spacious weighing chamber with sliding top and side glass doors. Each balance is equipped with RS 232 and two USB output with the possibility of connecting additional accessories such as a keyboard or mouse.
The AS.R has a under hook weighing feature. This is ideal for loads with non-standard dimensions and shapes and those which create magnetic field. Under hook weighing can also be used for density determination procedures.
| Specification | WL-104-1014 (AS 60/220.R2) | WL-104-1018 (AS 82/220.R2) | WL-104-0047 (AS 220.R2) |
WL-104-0050 (AS 310.R2) |
| Max capacity [Max] | 60/220 g | 82g / 220g | 220 g | 310 g |
| Minimum load | 1 mg | 1 mg | 10 mg | 10 mg |
| Readability [d] | 0,01/0,1 mg | 0,01/0,1 mg | 0,1mg | 0,1mg |
| Tare range | –220 g | –220 g | –220 g | –310 g |
| Repeatability | 0,03/0,1 mg | 0,015 mg | 0,1 mg | 0,1 mg |
| Linearity | ±0,07/0,2 mg | ±0,06 mg | ± 0,2 mg | ± 0,3 mg |
| Pan Size | ø 70 mm | Ø 90 mm | ø 85 mm | ø 100 mm |
| Stabilization time | 6/3,5 s | 6/3,5 s | 3,5 s | 3,5 s |
| Sensitivity drift | 1 ppm/°C in temperature +10 ° – +40 °C | |||
| Working temperature | +10 ° – +40 °C | +10 ° – +40 °C | +10 ° – +40 °C | +10 ° – +40 °C |
| Power supply | 12 ÷ 16 V DC / 250 mA (350 mA for scales with WiFi) | |||
| Adjustment/calibration | internal (automatic load alternator kitic) | |||
| Display | LCD (backlit) | LCD (backlit) | LCD (backlit) | LCD (backlit) |
| Interface | 2×RS 232, USB-A, USB-B, WiFi (option) | |||
| Net weight/Gross weight | 5,6/7,7 kg | 5,6/7,7 kg | 5,6/7,7 kg | 5,6/7,7 kg |
| Packaging size | 490×400×505 mm | 490×400×505 mm | 490×400×505 mm | 490×400×505 mm |
| Weight | 16.98 lbs |
|---|---|
| Dimensions | 20.28 × 19.29 × 19.88 in |
| Model | WL-104-1014 (AS 60/220.R2), WL-104-1018 (AS 82/220.R2), WL-104-0047 (AS 220.R2), WL-104-0050 (AS 310.R2) |
