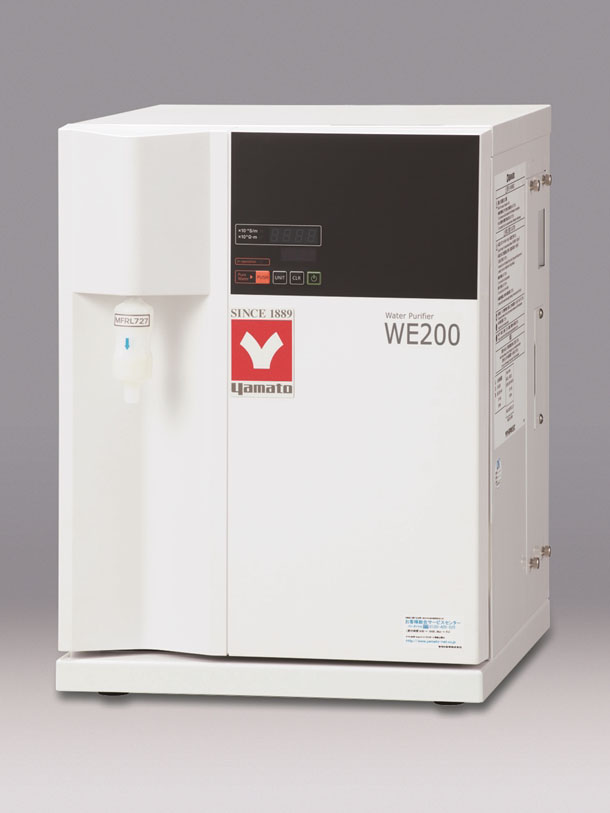

Type 1 (ASTM D 1193) / A4 (JIS K 0057) level purity benchtop water purifier.
- Lower running cost.
- By adopting reverse osmosis (RO) membrane cartridge set, life span of consumables has been expanded significantly.
- Benchtop type, space saving.
- Easy water sampling by attaching to water faucet.
- Easy to operate digital display.
- Displays replacement of consumables and its exchange history.
- Standard equipped with membrane filter to protect pure water production from contamination.
- Electromagnetic valve equipped at sampling water port for leakage prevention.
- Universal power supply: works with 100 to 240VAC.
|Purified water||Deionized water: JIS K0057 A4|
|Water purifying method||RO membrane→Ion exchange→filtration|
|Pure water delivery rate||0.5 to 1.0L/min continuous production|
|Raw water filter||Pre-treatment cartridge (activated charcoal + 0.1μm hollow fiber membrane)|
|Filtration||Reverse osmosis membrane (RO)|
|Ion-exchange resin cartridge||2L ion exchange resin containing activated charcoal (CPC-T)|
|Final filtration||0.1μm membrane filter|
|Leakage detection||Water supply solenoid valve forcibly shut off when leak is detected|
|Raw water press range||0.13 to 0.5MPa (1.3 to 5.0kgf/cm²)|
|Raw water temperature range||10 to 30°C|
|Water sampling port||250mm above floor, RC1/4 (Connected with membrane filter)|
|Drainage port||ø10 rigid tube|
|Drainage rate||Maximum 2.2L/min. (in flushing operation)|
|Safety device||Water cut-off error, Water quality sensor error, Controller error, Pressure limit error, Leak error, Flow alarm/Error, Earth leakage circuit breaker|
|Water quality display||7-segment LED display (Conductivity / Resistivity / Water temperature)|
|Other display||Consumables replacement display (Ion exchange resin, Pre-treatment cartridge, Reverse osmosis (RO) membrane, Membrane filter), Warning / Error display|
|Accessories||Supply water hoses, Pre-treatment cartridge, Reverse osmosis (RO) membrane cartridge set, Ion-exchange cartridge CPC-T, Membrane filter, Drain hose, Power cord, Seal tape|
|External dimensions（W×D×H mm）||350×430×470mm|
|Power Source||AC100 to 240V 1.3A
