VE-B10 PHASE CONTRAST MICROSCOPE – VELAB


Compare

$1,546.00

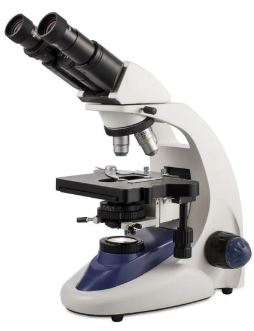

Binocular microscope with phase contrast condenser.

Specification
Eyepiece WF 10X / 20 mm with protective rubber bands, diopter adjustment on one of the eyepieces.
Head Siedentopf type binocular, 45 ° inclined, 360 ° rotatable with interpupillary distance adjustment of 48-75 mm
Revolver Quadruple with anti-slip ring and stop.
Objectives 10x, 20x (retractable), 40x (retractable) and 100x immersion (retractable) for phase contrast with achromatic plan optics, metallic finish and color ring for easy identification.
Body Stable, robust, reinforced and finished in epoxy paint.
Stage Double plate with X-Y coaxial movements, 150 X 132 mm with vernier. millimeter scale, caliper and stop with height adjustment.
Capacitor Zernike for phase contrast with aperture for 10X, 20X, 40X, 100X and brightfield position.
Diaphragm Iris with filter holder.
Lighting Kohler LED with variable intensity control and field diaphragm in the lamp.
Focus Coaxial non-slip macrometric and micrometric with tension adjustment.
Power 3 rechargeable 1.2V AA batteries (included) for 4 hours of continuous operation. AC120V, 50 / 60Hz
