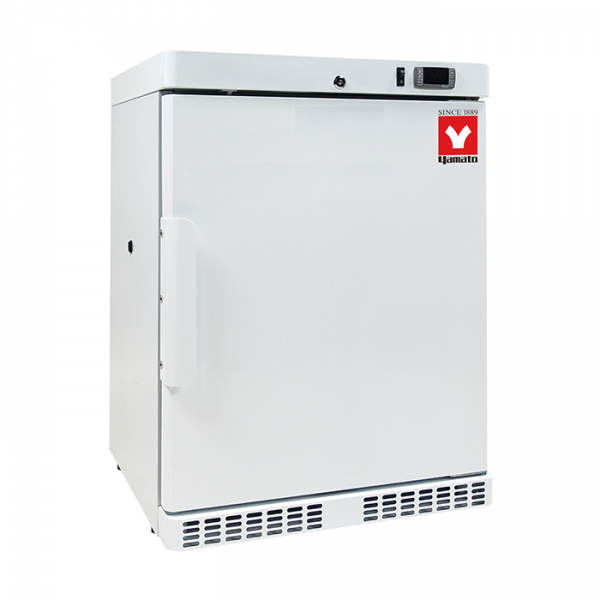

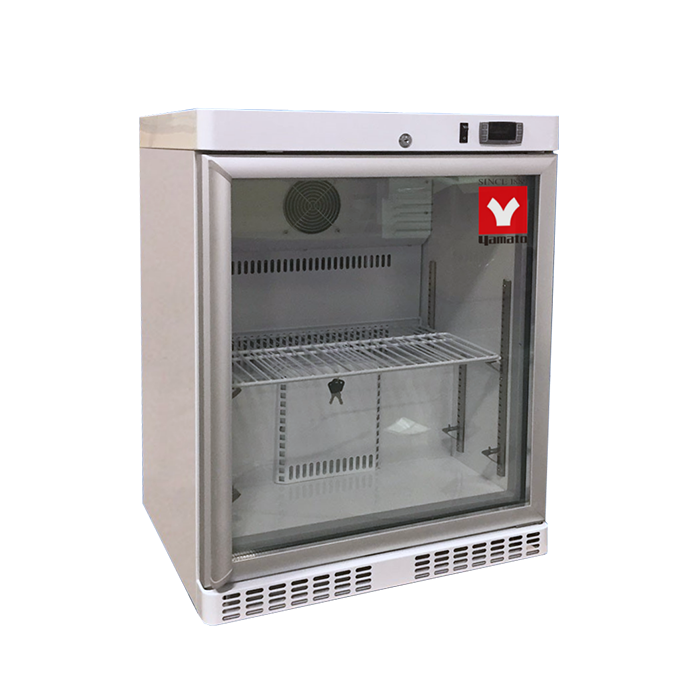

UCR001/UCR001G/UCR101/UCR101G- UCR Series Undercounter & Countertop Refrigerators – Yamato
$1,569.00 – $1,995.00
Undercounter and countertop refrigerators
Features
- Temperature range of 2°C to 8°C
- Digital control with hi / low alarm
- Dry alarm relay contacts
- Access port 1/2″ diameter
- Auto defrost cycle
- Available in solid or glass door
| Models | UCR001 | UCR001G | UCR101 | UCR101G | |
| Capacity | 70L / 2.5 cu.ft. | 70L / 2.5 cu.ft. | 113L / 4 cu.ft. | 113L / 4 cu.ft. | |
| Door | Single solid, locking | Single glass, locking | Single solid, locking | Single glass, locking | |
| Temperature Range | 2°C to 8°C / 36°F to 46°F | ||||
| Temperature Control | Digital display with hi/low alarm, Alarm relay dry contacts | ||||
| Access Port | 1/2″ | 1/2″ | 1/2″ | 1/2″ | |
| Shelves | 2 full | 2 full | 2 adjustable, 1 full, 1 half | 2 full, 1 half | |
| Insulation | Polyurethane foam | ||||
| Refrigerant | R600 | ||||
| Compressor | – | – | 1/3 hp | 1/3 hp | |
| Air Circulation | Forced air | Forced air | Forced air | Forced air | |
| Defrost | Cycle, Auto | Cycle, Auto | Cycle, Auto | Cycle, Auto | |
| Exterior Construction | Painted white | Painted white | Painted white | Painted white | |
| Internal Dimension (WxDxH) | 17” x 15” x 17” 43 x 38 x 43 cm |
20” x 15.25” x 22.75” 51 x 38 x 57 cm |
20” x 17.75” x 24.5” 51 x 45 x 62 cm |
||
| External Dimensions (WxDxH) | 20” x 21.5” x 25” 50 x 54 x 63 cm |
23.75” x 21.5” x 32” 60 x 64 x 84 cm |
|||
| Weight | 110 lbs. | 110 lbs. | 150 lbs. | 150 lbs. | |
| Voltage | 115 volts, 60 hertz, 1/10 HP | ||||
| Running Amps/Breaker | 1.2 /15 | ||||
| Supply Plug | 5-15P NEMA | ||||
| Optional Accessory | Chart recorder | ||||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Products | UCR-001 (UNDERCOUNTER & COUNTERTOP REFRIGERATOR 2ºC to 8ºC, 2.5 cu.ft., Cycle Defrost, 115V), UCR-001G (UNDERCOUNTER & COUNTERTOP REFRIGERATOR 2ºC to 8ºC, 2.5 cu.ft., with Glass Door Cycle Defrost, 115V), UCR-101 (UNDERCOUNTER & COUNTERTOP REFRIGERATOR 2ºC to 8ºC, 4.6 cu.ft., Cycle Defrost, 115V), UCR-101G (UNDERCOUNTER & COUNTERTOP REFRIGERATOR 2ºC to 8ºC, 4.6 cu.ft., with Glass Door Cycle Defrost, 115V) |
