SMI7/SMI11/SMI12- SMI Series – Shellab


Compare

The SHEL LAB high-performance water baths are accurate, easy to use, safe and durable. The water bath design incorporates a drip free cover holster and pocket handles so users can easily transport the water bath.

$3,454.00$6,182.00

Clear

SHEL LAB SMI Incubators are available in 100-120V or 220-240V configurations.

Heating – SMI Incubators rely on natural heat radiation for heating.
These units can achieve ambient room temperature plus 8°C to 70°C.

Over Temperature Limit system – The OTL is a mechanical heating cutoff included with each incubator and operates independently of the incubator microprocessor temperature controller. The OTL helps safeguard the incubator by preventing runaway heating in the event of hardware failures or a sudden external heat spike.

Applications

  • Hematological Studies
  • Microbiological Determinations
  • Pharmaceutical Stability Assays
  • Bacterial Culturing and Research
  • Food Processing Quality Control
  • Biochemical Studies
SMI Model
Part ID 100-120V
[Part ID 220-240V]
Model Number

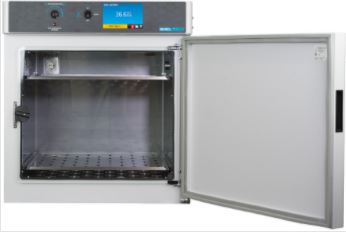

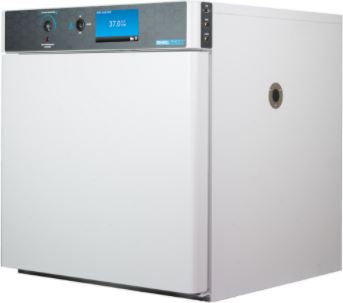

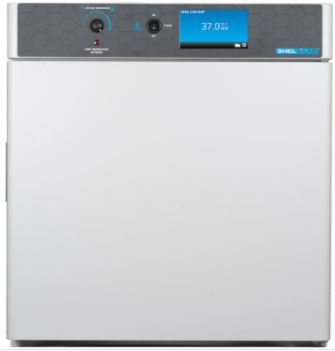

SMI7
SLM722
SLM722-E

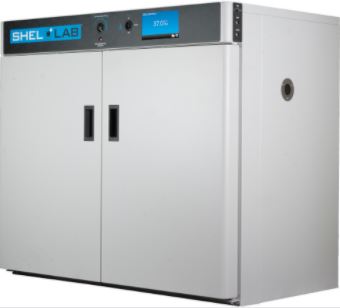

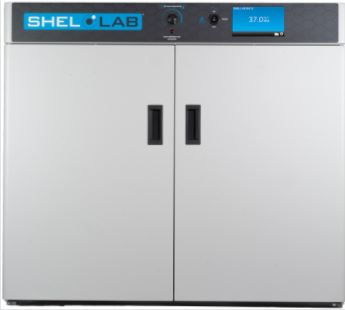

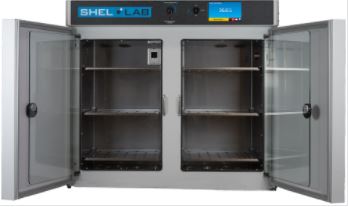

SMI11
SLM1122
SLM1122-E

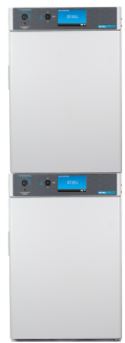

SMI12
SLM1222
SLM1222-E
Interior Chamber Volume 6.5 cu. ft / 184 L 10.9 cu. ft / 309 L 11.7 cu. ft / 332 L
Interior Dimensions (w x d x h) 23.7 x 24.0 x 20.0 in
602 x 610 x 508 mm
36.2 x 20.0 x 26.0 in
920 x 508 x 660 mm
19.5 x 20.0 x 26.0 in*
495 x 508 x 660 mm
Exterior Dimensions(w x d x h) 30.0 x 31.0 x 32.0 in
762 x 787 x 813 mm
42.0 x 27.0 x 38.0 in
1067 x 686 x 965 mm
25.3 x 27.3 x 76.0 in
643 x 693 x 1930 mm
Unit Weight 162 lb / 73.5 kg 195 lb / 88.5 kg 316 lb / 143.3 kg
Shipping Weight 198 lb / 90 kg 300 lb / 136 kg 550 lb / 250 kg
Incubator Performance
Temperature Range Ambient + 8°C to 70°C Ambient + 8°C to 70°C Ambient + 8°C to 70°C
Temperature Stability (+/-) 0.1°C @ 37°C (+/-) 0.1°C @ 37°C (+/-) 0.1°C @ 37°C
Temperature Uniformity (+/-) 0.5°C @ 37°C (+/-) 0.5°C @ 37°C (+/-) 0.5°C @ 37°C
Electrical
Amperage 6.5 Amps / 5.0 Amps 10.0 Amps / 5.0 Amps 6.0 Amps / 4.0 Amps*
Misc.
Shelves 2 Standard, 9 Total 6 Standard, 12 Total 6 Standard, 12 Total
Maximum Weight per Shelf 35 lb / 15.9 kg 35 lb / 15.9 kg 35 lb / 15.9 kg
Permitted Total Load 70 lb / 31.8 kg 210 lb / 95.3 kg 210 lb / 95.3 kg
SKU: SMI7/SMI11/SMI12 Categories: , , Tags: , , , Brand:
Weight N/A
Dimensions N/A
Product

SLM722 (100-120V ), SLM722-E (220-230V), SLM1122 (110-120V ), SLM1122-E (220-230V), SLM1222 (110-120V ), SLM1222-E (220-230V)
