Autoclave, Laboratory Equipment

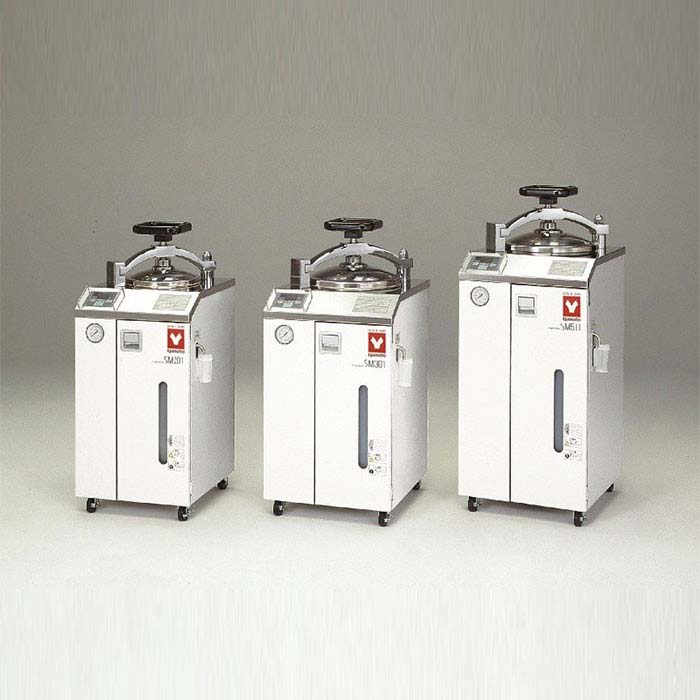

SM201/211/301/311/501/511 Steam Sterilizer with Dryer Yamato
High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
$6,124.00 – $7,940.00
High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
Operation and functions
- Automatic operations from sterilization to drying carried out with an interactive key input system
- Quick sample drying capability makes samples ready to use right after sterilization
- Drying temperature can be set according to sample material, quantity, etc.
- Timer range from 1~999 hours

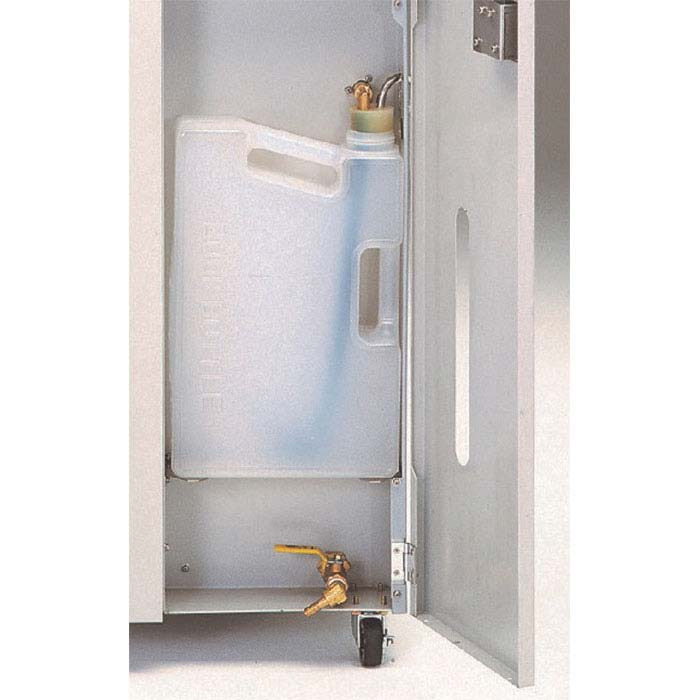

- Drain bottle water level can be quickly confirmed on the front panel level indicator
- Drain valve located in front for easy access

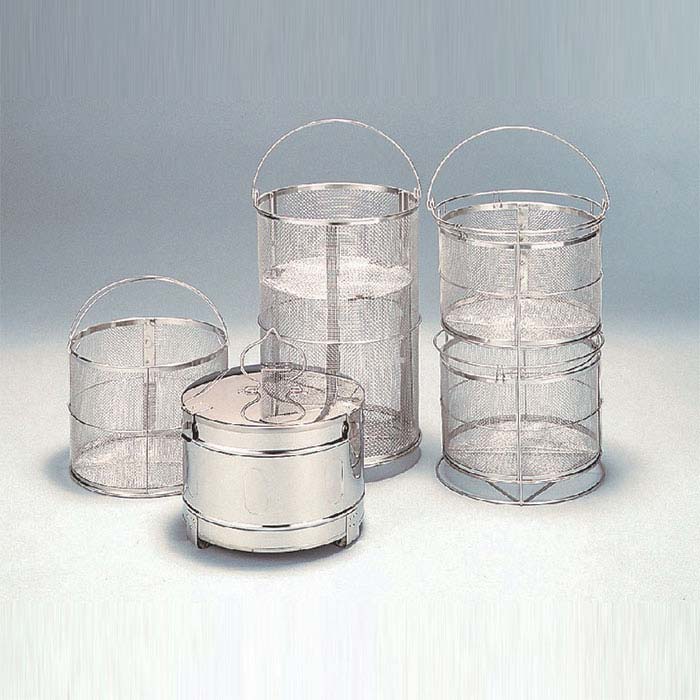

- Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
- Self-diagnostic functions make operation safer and error recovery quicker

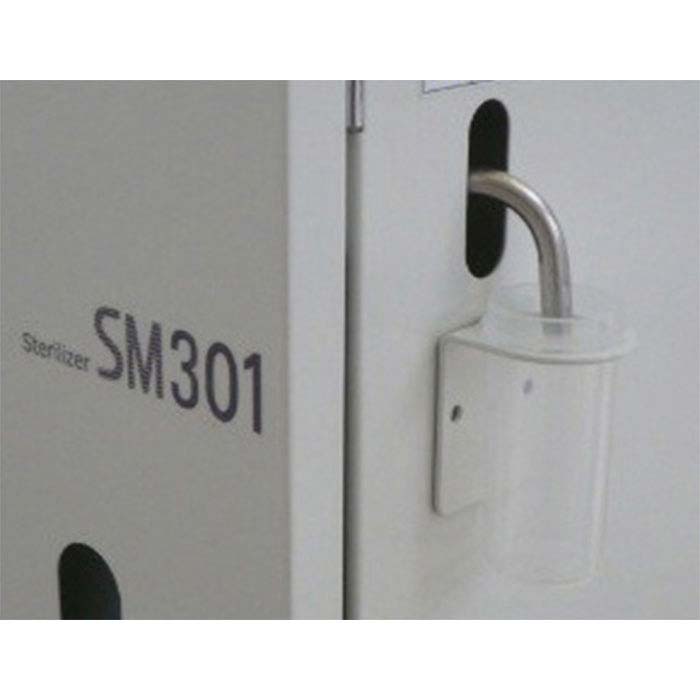

- Condensation collector neutralizes high temperature exhaust steam safely
| Model | SM201 SM211 |
SM301 SM311 |
SM501 SM511 |
||
| System | Automatic high pressure steam sterilization | ||||
| Operating Temperature Sterilization | 105 to 123°C | 105 to 128°C | |||
| Operating Temperature Drying | 150 to 180°C | ||||
| Maximum Pressure Capacity | 0.18MPa | 0.2MPa | |||
| Interior | Stainless steel | ||||
| Heater Sterilization | 1.3kW | 1.7kW | 1.7kW (SM501) 2.0kW (SM511) |
||
| Heater Drying | 1.0kW | 1.5kW | |||
| Temp. Controller | PID control by microprocessor | ||||

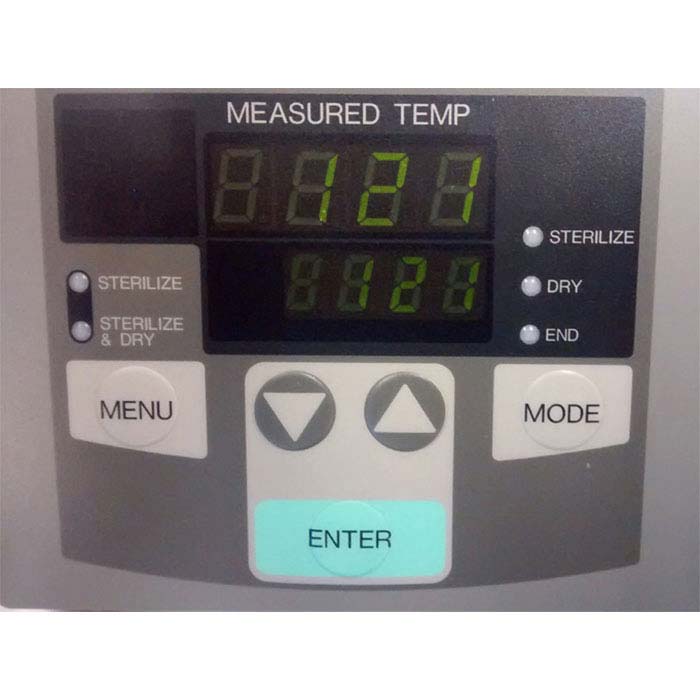

| Temp. Display | Digital display by green LED and setting via ▲▼ keys | ||||
| Timer / Timer Resolution | 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr. | ||||
| Safety Device | Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch | ||||
| External Dimensions WxDxH | 410 x 470 x 957 mm | 440 x 530 x 968 mm | 440 x 530 x 1088 mm | ||
| Internal Dimensions | ø240 x D445 mm | ø300 x D445 mm | ø300 x D665 mm | ||
| Internal Capacity | 20L | 32L | 47L | ||
| Power Source (50/60Hz Single Phase) |
AC115V 13A (with plug) AC220V 7A (no plug, round terminal) |
AC115V 17.5A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
AC115V 15A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
||
| Weight | ~65kg | ~80kg | ~85kg | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SM201 (Standard Laboratory Use Sterilizer With Dryer 20L 115V 13A 50/60hz), SM211 (Standard Laboratory Use Sterilizer With Dryer 20L 220V 7A 50/60hz), SM301 (Standard Laboratory Use Sterilizer With Dryer 32L 115V 17.5A 50/60hz), SM311 (Standard Laboratory Use Sterilizer With Dryer 32L 220V 9.5A 50/60hz), SM501 (Standard Laboratory Use Sterilizer With Dryer 47L 115V 15A 50/60hz), SM511 (Standard Laboratory Use Sterilizer With Dryer 47L 220V 9.5A 50/60hz) |
