Autoclave, Laboratory Equipment

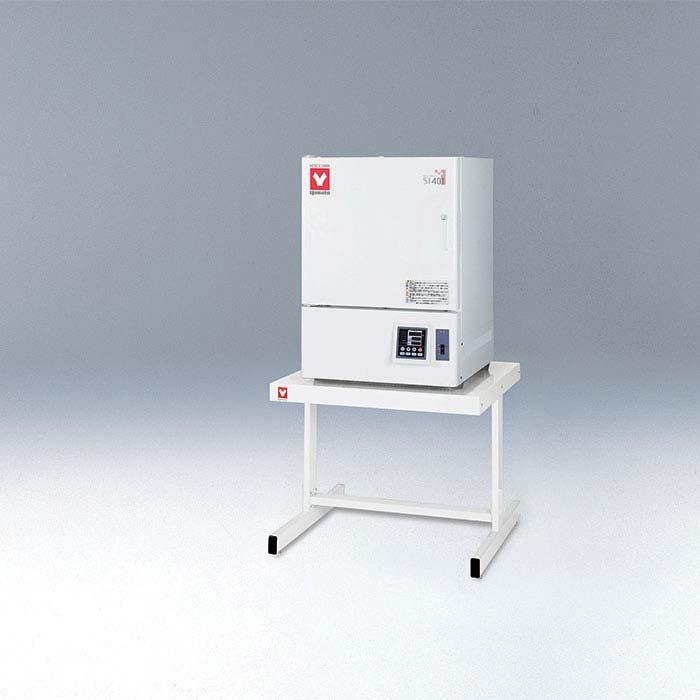

SI401/601 Dry Sterilizer Yamato
Programmable natural convection laboratory dry sterilizers
$3,468.30 – $3,964.40
Programmable natural convection laboratory dry sterilizers
Operation and functions
- Improved temperature controller with better operability
- Digital setting by main menu and ▲▼ keys for fixed temperature, program, quick auto stop, auto stop and auto start operations
- Standard equipped with calibration off-set, lock function, power failure recovery mode
- Programmable with maximum 30 steps, 6 patterns, repeat operation
Increased Safety Features
- Standard equipped with self diagnostic functions, earth leakage breaker and overheat prevention device
| Model | SI401 | SI601 | ||
| Circulation Method | Natural convection dry laboratory sterilizers | |||
| Operating Temp. Range* | Room temp. +5~260°C | |||
| Temp. Adjustment Accuracy | 2°C (at 260°C) | |||
| Temp. Distribution Accuracy | 20°C (at 260°C) | |||
| Max. Temp. Reaching Time | ~70min. | |||
| Interior / Exterior | Stainless steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish | |||
| Heater | Iron chromium wire heater / 1.2kW | Iron chromium wire heater / 1.36kW | ||
| Sensor | K type Thermocouple | |||
| Exhaust Port | I.D.30 mm x 2 (top) | |||
| Temp. Controller | PID control | |||
| Temp. Display | Measured temp. display: green 4 digit LED digital display / Setting temp. display: red 4 digit LED digital display | |||
| Timer | 1 min~99hr 59 min and 100~999 hrs 30 min. (with timer wait function) | |||
| Operation Function | Fixed temperature, quick auto stop, auto stop, auto start, program (6 pattern: 30 steps x 1, 15 steps x 2, 10 steps x 3, pattern repeat function) | |||
| Additional Functions | Lock function, auto recovery after power failure, calibration off-set | |||
| Safety Device | Self diagnostic functions (temp. sensor failure, heater disconnection, SSR short circuit, memory error, internal communication error, measurement temperature error, automatic overheat prevention), overheat prevention device, earth leakage breaker | |||
| Internal Dimensions WxDxH | 450 x 430 x 400 mm | 600 x 530 x 500 mm | ||
| External Dimensions WxDxH | 550 x 540 x 777 mm | 700 x 640 x 877 mm | ||
| Internal Capacity | 77L | 159L | ||
| Shelf Plate With Standard Load | ~15 kg/pc. | |||
| Shelf Rest Step Number / Pitch | 10 steps / 30 mm | 13 steps / 30 mm | ||
| Power Source (50/60Hz) | AC115V 10.6A (with plug) | AC115V 11.8A (with plug) | ||
| Weight | ~42 kg | ~59 kg | ||
| Shelf Plate Material | Stainless punching metal | |||
| Shelf Plate / Bracket | 2pcs./4pcs. (bottom one is screwed) | |||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SI401 (Economical Natural Convection Laboratory Dry Sterilizer 77L 115V/220V 50/60hz), SI601 (Economical Natural Convection Laboratory Dry Sterilizer 159L 115V/220V 50/60hz) |
