Laboratory Equipment, Stirrers

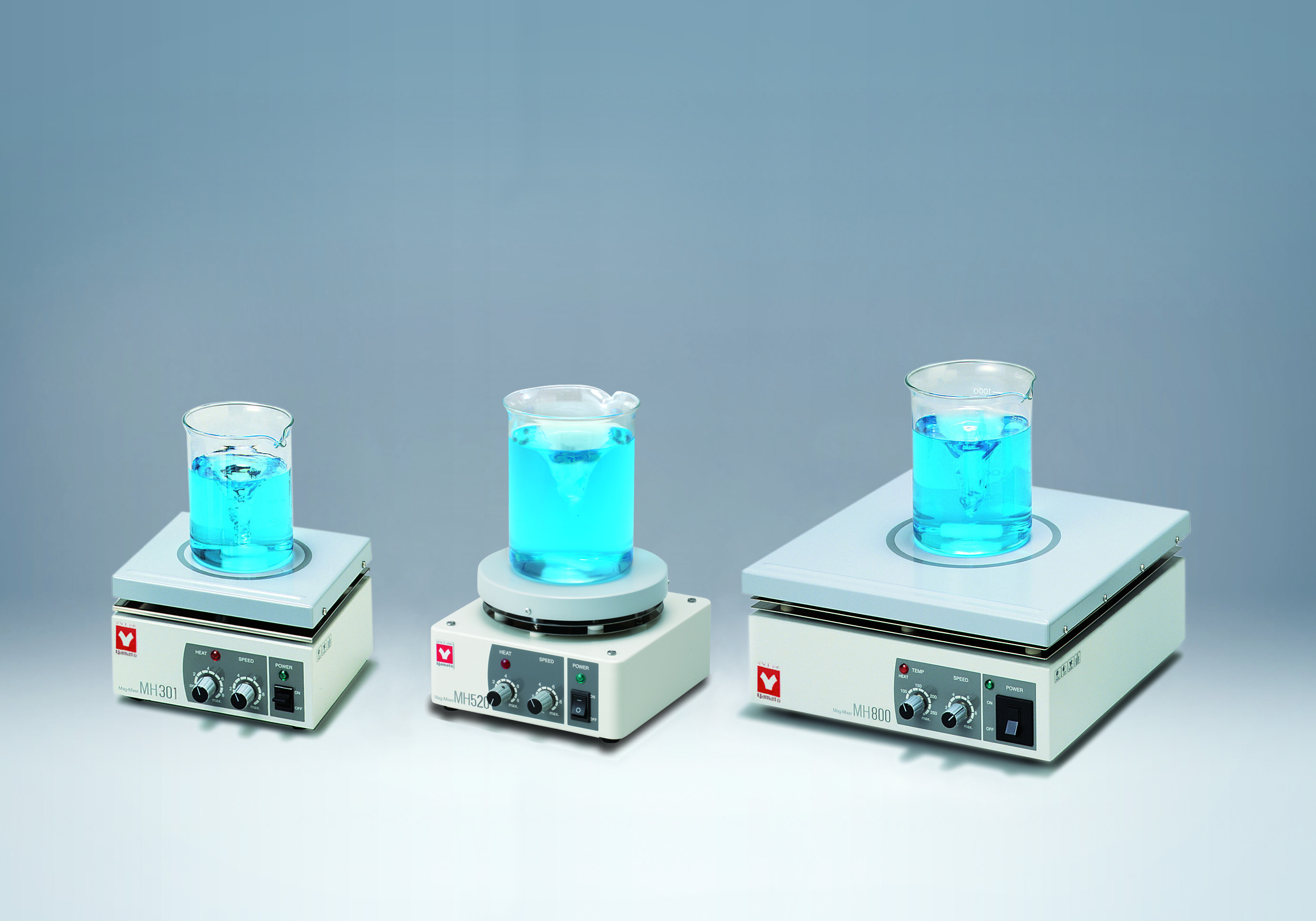

MH-800-115V/MH-800-220V- Magnetic Stirrer with Hot Plate (MH800)- Yamato
$2,198.00
Features
- Hot plate is made of chemical resistant, heat conductive aluminum with ceramic coating
- Stirrable for high viscosity sample
- Volume knob type temperature control
| Specifications | ||
| Item Code | 231309 | |
| Model | MH800 | |
| Plate material | Aluminum with ceramic coating | |
| Stirring capacity | 200 to 10000ml | |
| Stirring rate | 100 to 1400rpm | |
| Heater | 1000W | |
| Temp. control | Triac input control type | |
| Hot plate temp. | Max.250°C (Set by volume with OFF) | |
| Motor | AC motor, condenser electronic control 3W | |
| Accessory | Stirrer bar 40mm 1pc. | |
| External dimensions（W×D×H mm） | 309×315×151mm | |
| Remarks(dimensions) | Stirring stage size : W299 x D285 mm | |
| Power Source | AC115V / AC220V Single-phase with step-down transformer |
|
| Weight | 6.7kg | |
| Weight | 14.77 lbs |
|---|---|
| Dimensions | 12.40 × 12.16 × 5.94 in |
| Product | MH-800-115V (MAGNETIC STIRRER WITH HOT PLATE 100~1400 rpm 115V with external transformer), MH-800-220V (MAGNETIC STIRRER WITH HOT PLATE 100~1400 rpm 220V with external transformer) |
