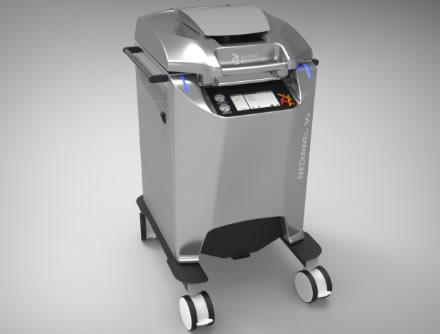

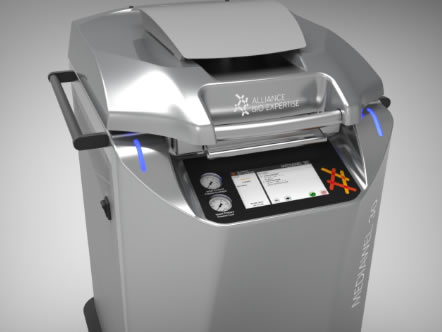

MEDW1001 MEDIAWEL Automated Media preparator 2-30L Alliance Bio Express
The latest generation of the Mediawel is both very ergonomic and versatile.
$17.50 – $47,125.00
The latest generation of the Mediawel is both very ergonomic and versatile. Compatible with all types of agar and thinners, the Mediawel 30 is very easy to use, thanks to its touch screen. Record up to 50 programs, configurable from 1 to 4 temperature steps. With a large tank and a very large agitator, the Mediawel 30 is very easy to clean and avoids any risk of contamination. Equipped with large wheels, the Mediawel 30 is very easy to move. You can also cover all your needs since the design of its tank allows the preparation of 3 liters up to 30 liters.
- Versatile: from 3 to 30 liters.
- Productivity: Up to 50 programs with fast cycles
- Ergonomic: Touch screen, large tank and large wheels
Contains:
- 1 user manual (MEDW2000)
- 1 control certificate
- 1 large magnetic stirrer (MEDW2008)
- 1 sampling tube (MEDW2009)
- 1 draining plug (MEDW2010)
- 1 Sampling nozzle seals x2 (MEDW4011)
- 2 sampling nozzles (MEDW2003 : Ø 12mm + MEDW2004: Ø 6.4mm)
- Inlet and outlet water tubing (4 m) + 4 tubing clamps (MEDW4012)
- 2 decompression filters (MEDW3001)
- Carded cotton (100g) (MEDW3002)
- 2 Sliding washer stirrer axis (MEDW4003)
- 1 x WIRELESS TRACEABILITY PACK (WIFI key + Technote + eTRACE conf software
| Specificactions | ||
| Capacity | 3 to 30 liters | |
| Sterilization temperature | 95 ° C to 125 ° C | |
| Sterilization time | 1 to 99 min | |
| Distribution temperatures | 25 ° C to 80 ° C | |
| Precision of temperature | ± 1 ° C | |
| Preparation of blood agar | YES | |
| Interface | Tactile | |
| Number of configurable programs | 50 | |
| Traceability | CSV file via USB | |
| Mobility / Stability | 4 large wheels with brakes | |
| French made | Yes | |
| Dimensions (cm) | 585 x 1053 x 735 mm | |
| Food | 400V-50-60Hz-16A or 230V-50-60HZ-22A | |
| Accesories | ||
| MEDW4010 | Additional temperature probe | |
| MEDW2002 | Quick connector kit (2u) | |
| MEDW2001 | Reference probe adapter – 6mm | |
| MEDW2003 | Sampling nozzle – 12 mm | |
| MEDW2004 | Sampling nozzle – 6.4 mm | |
| MEDW2005 | Y connector | |
| MEDW2006 | Plug adapter (400V towards 230V) EU standard monophase – (only for dispensing phase) | |
| MEDW2007 | Plug adapter (400V towards 230V) Industrial monophase (IEC 60309) (only for dispensing phase) | |
| MEDW2008 | Magnetic stirrer for MEDIAWEL 30 | |
| MEDW2009 | Sampling tube for MEDIAWEL 30 | |
| MEDW2010 | Draining plug for MEDIAWEL 30 | |
| Consumables | ||
| MEDW3001 | Decompression filters 50 mm (0.2µm) hydrophobic – x5 | |
| MEDW3002 | Sterile Hydrophobic Carded cotton (used as prefilter to prevent main filters’ lifetime x3) – sold in packs of 100g (approx. 100 cycles) | |
| Spare Parts | ||
| MEDW4005 | Cover seal | |
| MEDW4006 | Seal for addition cap | |
| MEDW4011 | Sampling nozzle seals – x2 | |
| MEDW4008 | V ring seal on stirrer axis | |
| MEDW4009 | O ring seal on stirrer axis | |
| MEDW4012 | Water supply hose (4 m) | |
| MEDW3008 | In line water circuit filter | |
| Qualification Seal | ||
| MEDW4001 | Qualification protocol IQ/OQ (English) | |
| MEDW4002 | Qualification protocol IQ/OQ (French) | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Producto | MEDW1001, Automated Media preparator 2.5-30 L- 380V, MEDW4010,Additional temperature probe, MEDW2002, Quick connector kit (2u), MEDW2001, Reference probe adapter – 6mm, MEDW2003, Sampling nozzle – 12 mm, MEDW2004, Sampling nozzle – 6.4 mm, MEDW2005, Y connector, MEDW2006, Plug adapter (400V towards 230V) EU standard monophase, MEDW2007,Plug adapter (400V towards 230V) Industrial monophase (IEC 60309), MEDW2008, Magnetic stirrer for MEDIAWEL 30, MEDW2009, Sampling tube for MEDIAWEL 30, MEDW2010, Draining plug for MEDIAWEL 30, MEDW3001, Decompression filters 50 mm (0.2µm) hydrophobic – x5, MEDW3002, Sterile Hydrophobic Carded cotton – sold in packs of 100g, MEDW4005, Cover sealMEDW4006, Seal for addition cap, MEDW4011, Sampling nozzle seals – x2, MEDW4008, V ring seal on stirrer axis, MEDW4009, O ring seal on stirrer axis, MEDW4012, Water supply hose (4 m), MEDW3008, In line water circuit filter, MEDW4001, Qualification protocol IQOQ (English), MEDW4002, Qualification protocol IQOQ (French) |
