Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics
Models LTF PLATINUM SERIES
Temperature Range 0°C ~ -40°C / 32°F ~ -40°F
Temperature Control System Touch Screen control
Displays set point and chamber temperature
Hi/Low Alarm W/ Email and SMS notification
Alarm Relay Dry Contacts
Power Failure Dry Contacts
Battery Back-up
Viewable Temperature graph
Data logging downloadable via USB or FTP
Multi-Level Security
VNC Remote Access via PC / smart devices
Digital Alarm System With Relay Battery operated alarm system will emit an audible and visual signal when there is a mechanical or
electrical failure. The alarm has an over and under temperature setting, alarm silencing switch. A relay
for a remote alarm hook-up is also provided.
Access Port Mounted in left hand side of the cabinet will be a 1/2″ porthole leading into the chilling chamber, complete with plugs
Refrigeration System Single stage system with one hermetic compressors.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical Requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional Accessories Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves
Models CAPACITY RACK CAPACITY TEMP. RANGE INTERNAL DIMENSIONS EXTERNAL DIMENSIONS

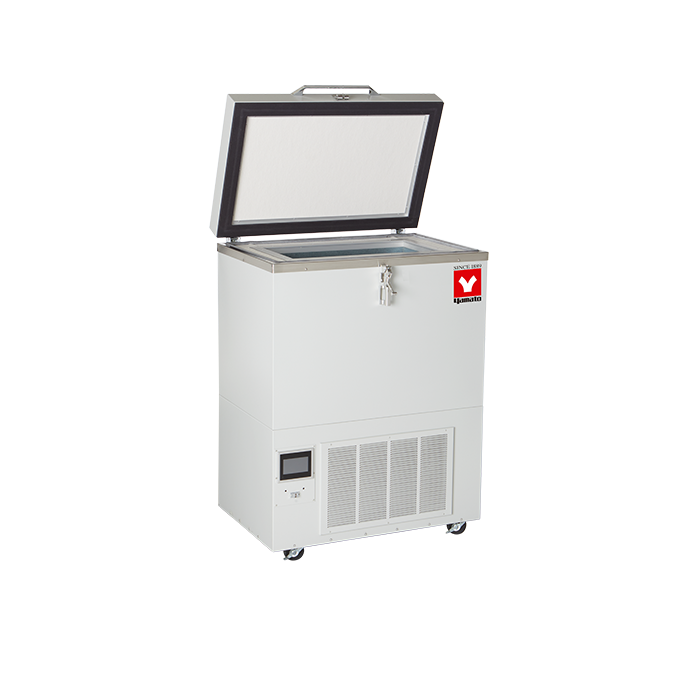

LTF101CP 83L / 3 cu. ft. 8 -40ºC to -85ºC 24” x 12” x 18”
60 x 30 x 45 cm		 34.5″ x 25.25″ x 48″
87 x 64 x 121

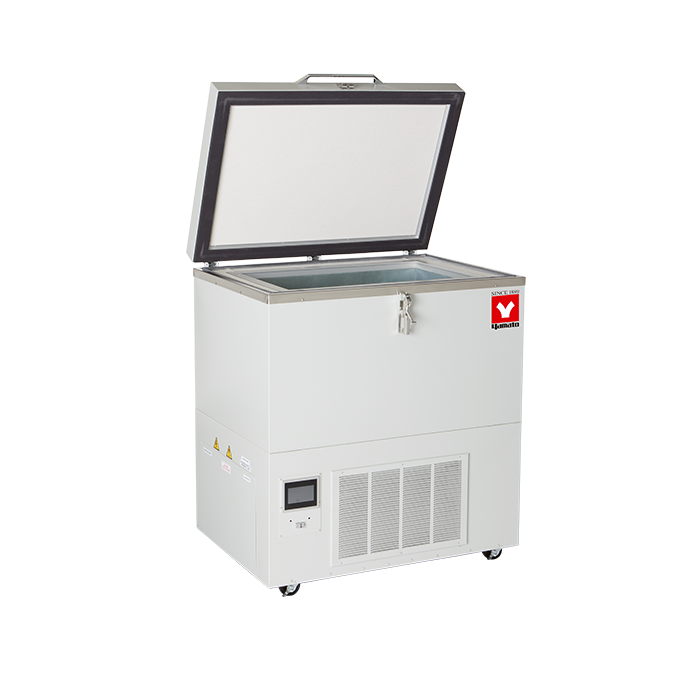

LTF201CP 142L / 5 cu. ft. 15 -40ºC to -85ºC 30” x 18” x 16”
76 x 45 x 40		 40.5” x 31” x 47”
102 x 81 x 119

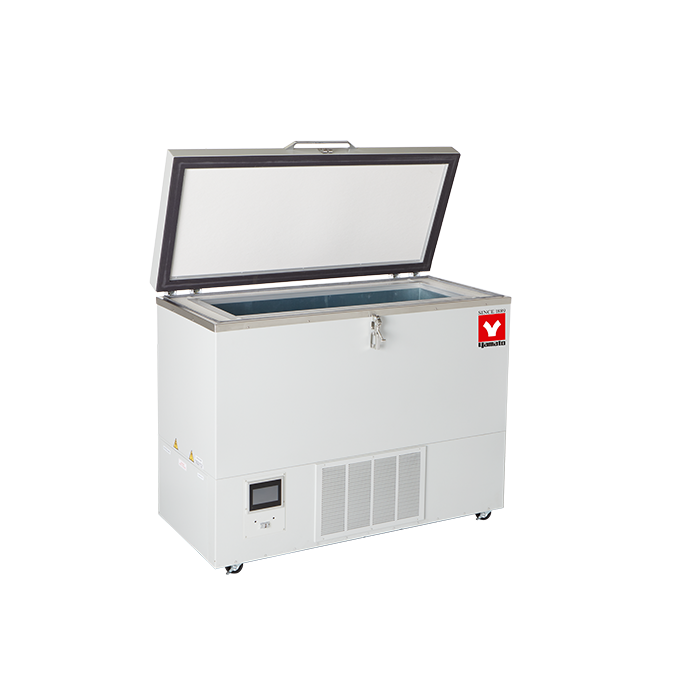

LTF301CP 255L / 9 cu. ft. 16 -40ºC to -85ºC 46” x 16” x 20”
116 x 40 x 50		 57.5″ x 29″ x 46.5″
146 x 73 x 116
LTF401CP 340L / 12 cu. ft. 27 -40ºC to -85ºC 55” x 19” x 20”
139 x 48 x 50		 65.5″ x 32″ x 47.5″
166 x 81 x 120
LTF501CP 400L / 14 cu. ft. 30 -40ºC to -85ºC 62” x 20” x 20”
157 x 50 x 50		 72.5″ x 33″ x 47.5″
184 x 83 x 120

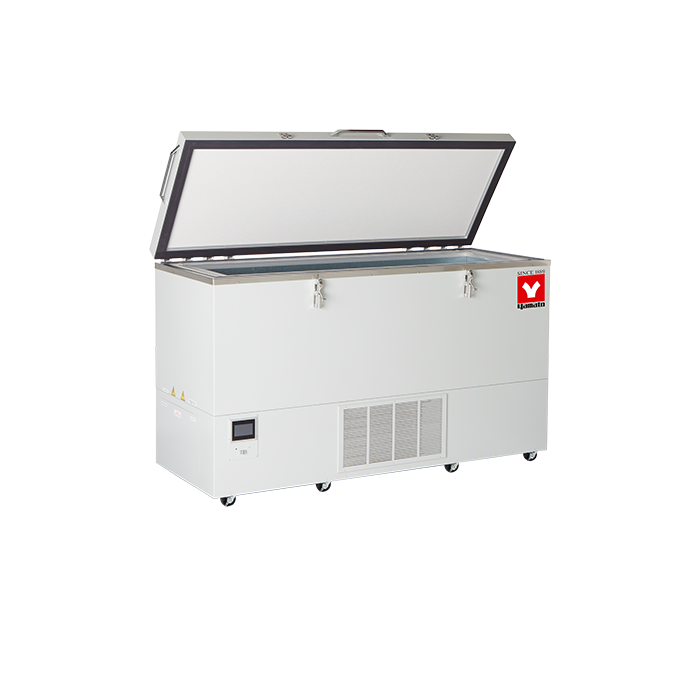

LTF601CP 480L / 17 cu. ft. 36 -40ºC to -85ºC 69” x 20” x 21”
175 x 50 x 53		 81.25″ x 33.5″ x 48.5″
206 x 85 x 123
LTF801CP 626L / 22 cu. ft. 36 -40ºC to -85ºC 67” x 19” x 30”
170 x 48 x 76		 98” x 36” x 43.5”
248 x 91 x 110
LTF801CP 766L / 27 cu. ft. 48 -40ºC to -80ºC 67” x 23” x 31.25”
170 x 57 x 79		 98” x 36” x 43.5”
248 x 91 x 110
SKU: LTF101CP/LTF101CP/LTF201CP/LTF301CP/LTF401CP/LTF501CP/LTF601CP/LTF801CP/LTF901CP Categories: , , Tags: , , , , , , , Brand:
Dimensions N/A
Products

LTF-101CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 3 cu.ft., Manual Defrost), LTF-201CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 5 cu.ft., Manual Defrost), LTF-301CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 9 u.ft., Manual Defrost), LTF-401CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 12 cu.ft., Manual Defrost), LTF-501CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 14 cu.ft., Manual Defrost), LTF-601CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 17 cu.ft., Manual Defrost), LTF-801CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 22 cu.ft., Manual Defrost), LTF-901CP (PLATINUM CHEST STYLE LOW TEMPERATURE FREEZERS 0ºC to -40ºC, 27 cu.ft., Manual Defrost)
