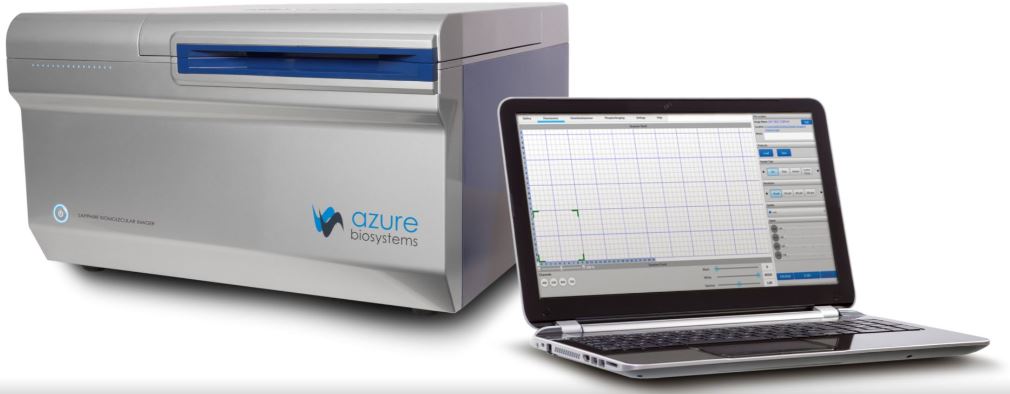

IS1024/IS1025/IS1026/IS1027-Sapphire Biomolecular Imager-Azure BioSystems
$63,244.25 – $113,844.25
The next generation lab imaging platform.
- With most imaging systems a decision between application flexibility and image quality has to be made
- Next generation laser scanning system which offers the best of both worlds
- Unparalleled flexibility with excellent sensitivity and image quality
- Capture software will deliver high quality quantifiable data
Up to four solid state lasers (488, 520, 658 and 784 nm) offering ultimate excitation sensitivity. Photon multiplier tube (PMT) for fluorescence and phosphor imaging, avalanche photodiodies (APD) for near-infrared imaging and a CCD sensor for chemiluminescent and visible imaging. Ultra-wide dynamic range for imaging and quantifying low and high abundance samples simultaneously. Image resolution down to 10 microns for high-quality image analysis.
Resources: Azure Imaging Systems Brochure (PDF)
| Specifications | Sapphire NIR | Sapphire RGB | Sapphire RGBNIR | Sapphire PI | |
| Part number | IS1024 | IS1025 | IS1026 | IS1027 | |
| Laser excitation wavelengths | 685, 784 | 488, 520, 658 | 488, 520, 658, 784 | 658 | |
| Bit depth | 16 bit | 16 bit | 16 bit | 16 bit | |
| Scanning area | 25 cm X 25 cm | 25 cm X 25 cm | 25 cm X 25 cm | 25 cm X 25 cm | |
| Scanning mode | Simultaneous or Sequential | Simultaneous or Sequential | Simultaneous or Sequential | Phosphor Imaging | |
| Resolution | 10 micron – 1000 micron | 10 micron – 1000 micron | 10 micron – 1000 micron | 10 micron – 1000 micron | |
| Detectors | Avalanche Photodiode | Photomultiplier Tube, Avalanche Photodiode |
Photomultiplier Tube, Avalanche Photodiod |
Photomultiplier Tube | |
| Scanning speed | 50 cm/s | 50 cm/s | 50 cm/s | 50 cm/s | |
| Filters | Red 725BP40, IR 832BP37 | Blue 518BP22, Green 565BP24, Red 710BP40 |
Blue 518BP22, Green 565BP24, Red 710BP40, IR 832BP37 |
390BP40 | |
| Dimensions(W X H X D) | 75 cm X 45 cm X 70 cm | 75 cm X 45 cm X 70 cm | 75 cm X 45 cm X 70 cm | 75 cm X 45 cm X 70 cm | |
| Weight | 140 lbs | 140 lbs | 140 lbs | 140 lbs | |
| Power requirements | 100 – 240 VAC ± 10%, 50/60 Hz | 100 – 240 VAC ± 10%, 50/60 Hz | 100 – 240 VAC ± 10%, 50/60 Hz | 100 – 240 VAC ± 10%, 50/60 Hz | |
| Computer options | Windows 10 laptop or Windows Pro desktop PC and 4K monitor |
Windows 10 laptop or Windows Pro desktop PC and 4K monitor |
Windows 10 laptop or Windows Pro desktop PC and 4K monitor |
Windows 10 laptop or Windows Pro desktop PC and 4K monitor |
|
| Q-Module | Optional | N/A | N/A | N/A | |
| Laser excitation wavelength | 520 | – | – | – | |
| Chemiluminescent Upgrade | Optional | Optional | Optional | Optional | |
| Imaging area, chemiluminescent |
16 cm X 13 cm | 16 cm X 13 cm | 16 cm X 13 cm | 16 cm X 13 cm | |
| Bit depth | 16 bit | 16 bit | 16 bit | 16 bit | |
| Resolution | 2688 X 2200 | 2688 X 2200 | 2688 X 2200 | 2688 X 2200 | |
| Imaging time | 0-60 minutes | 0-60 minutes | 0-60 minutes | 0-60 minutes | |
| Visible imaging | Yes | Yes | Yes | Yes | |
| Phosphor Imaging Module | Optional | Optional | Optional | N/A | |
| Sample types | Storage phosphor screen (imaging plate) |
Storage phosphor screen (imaging plate) |
Storage phosphor screen (imaging plate) |
– | |
| Weight | 140 lbs |
|---|---|
| Dimensions | 27.56 × 29.53 × 17.72 in |
| Product | IS1024 (Sapphire NIR), IS1025 (Sapphire RGB), IS1026 (Sapphire RGBNIR), IS1027 (Sapphire PI) |
