IN604/604W/804/804W Forced Convection Incubator Yamato
Standard low temperature forced convection incubators applicable for low temperature tests and environmental tests
$4,657.00 – $8,132.00
Standard low temperature forced convection incubators applicable for low temperature tests and environmental tests
Operation and functions
- High accuracy temperature control and temperature distribution

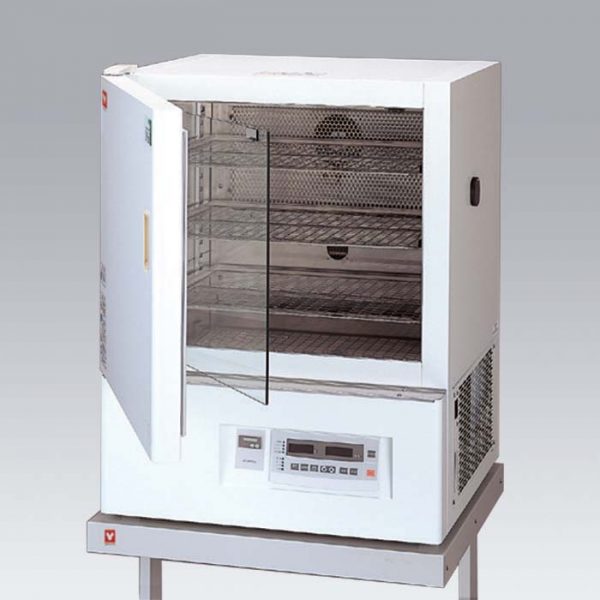

- Inner glass door keeps temperature stable during sample observation

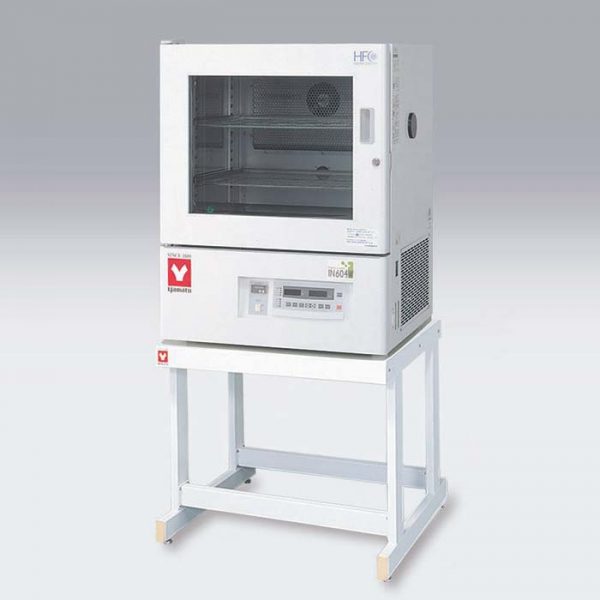

- Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention (IN604W/804W)
- Interior light for better sample visibility (IN604W/804W)
- Optional slide shaker table available to put in and take out samples easily (IN604W/804W)
| Model | IN604 | IN604W | IN804 | IN804W | ||
| System | Forced air convection | |||||
| Operating Temperature Range | -10°C~+50°C | |||||
| Temperature Adjustment Accuracy | ±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation) | |||||
| Temp. Distribution Accuracy | ±1.0°C (refrigerator in continuous operation at 37°C) | |||||
| Max. Temp. Reaching Time | 20~50°C ~20min | 20~50°C ~30min | Data unavailable | |||
| Minimum Temp. Reaching Time | 20~-10°C ~ 45min | 20~-10°C ~55min | 20~-10°C ~65min | Data unavailable | ||
| Interior Material | Stainless steel | |||||
| Exterior Material | Chrome free electronic galvanized plated steel plate chemical proof baking finish | |||||
| Observation Window | — | W516 x H416mm (with key) | — | Data unavailbale | ||
| Heat Insulation Material | Styrene foam | |||||
| Refrigerator | Air-cooled fully closed compressor 250W | Air-cooled fully closed compressor 300W | ||||
| Refrigerator Medium | R134A | R404A | ||||
| Defrosting Mechanism | Manual ON / Auto OFF, Timer operation, Cycle operation | |||||
| Blower Fan | Axial fan | |||||
| Heater | Iron-chrome wire heater: 550W | Iron-chrome wire heater: 750W | ||||
| Sensor | Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device) | |||||
| Cable Port (Right Side) | I.D.: 32 mm | I.D.: 50 mm | I.D.: 32 mm | I.D.: 32 mm | ||
| Temperature Control | PID control | |||||
| Temperature Setting | Digital setting with ▲▼ keys | |||||
| Temperature Display | Measured temperature: 4-digit orange LED digital display + VFD fluorescent display | |||||
| Timer / Timer Resolution | 0 min. ~ 999 hrs. 59 min. / 1 min. | |||||
| Operation Function | Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation) | |||||
| Additional Functions | Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display | |||||
| Safety Device | Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device | |||||
| Internal Dimensions W X D X H | 600 x 477 x 500 mm | 600 x 477 x 1000 mm | ||||
| External Dimensions W X D X H | 710 x 645 x 913 mm | 710 x 645 x 1630 mm | ||||
| Internal Capacity | 143L | 286L | ||||
| Shelf Plate Load | 15kg / pc. | |||||
| Shelf Rest Step Number / Pitch | 13 steps / 30mm | 23 steps / 30mm | ||||
| Power Supply (50/60Hz) | AC115V 9A (with plug) AC220V 5.5A (no plug, round terminal) |
AC115V 10.5A (with plug) AC220V 7.5A (no plug, round terminal) |
AC115V 10.5A (with plug) AC220V 6A (no plug, round terminal) |
AC115V AC220V | ||
| Weight | ~89kg | ~ 120kg | ||||
| Shelf / Shelf Brackets | 3 pcs. / 6 pcs. stainless steel punched metal | 5 pcs. / 10 pcs. stainless steel punched metal | ||||
| Door Keys | — | 2 keys | — | 2 keys | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | IN-604 115V (Refrigerant Incubator Programmable 143L 115V 50/60hz), IN-604 220V (Refrigerant Incubator Programmable 143L 220V 50/60hz), IN-604W 115V (Refrigerant Incubator Programmable With Window & Shaker Power Hook Up 143L 115V 50/60hz), IN-604W 220V (Refrigerant Incubator Programmable With Window & Shaker Power Hook Up 143L 220V 50/60hz), IN-804 115V (Refrigerant Incubator 286L 115V 50/60hz), IN-804 220V(Refrigerant Incubator 286L 220V 50/60hz), IN-804W 115V (Refrigerant Incubator Programmable With Window & Shaker Power Hook Up 286L 115V 50/60hz), IN-804W 220V (Refrigerant Incubator Programmable With Window & Shaker Power Hook Up 286L 220V 50/60hz) |
