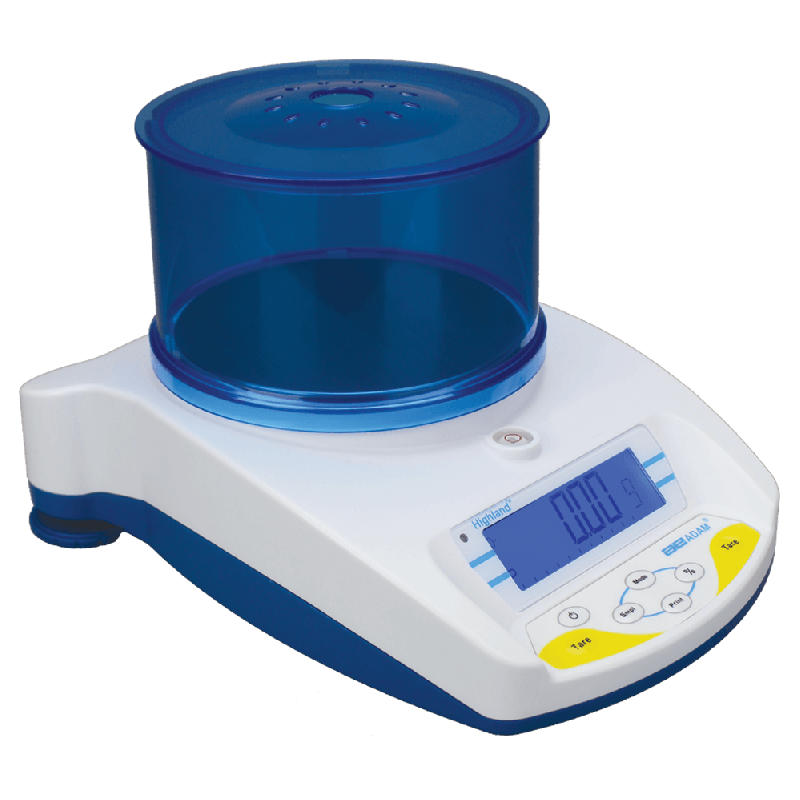

The Highland® portable precision balance offers advanced features in a compact, durable balance that stacks for easy storage.
Featuring multiple weighing applications including parts counting, percent weighing and accumulation, the Highland provides fast, accurate weighing in a number of different environments – from science research in the laboratory or field, to manufacturing operations. Sturdy ABS construction allows the Highland to stand up to demanding lab use, while Highland’s ShockProtect® offers advanced overload protection to keep the balance safe. HandiCal® facilitates internal calibration without the need for external weights.
Features and Benefits
Hardware
- Balances stack efficiently and safely to save space (120mm pan size only)
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Dual tare keys operate with either the left or right hand
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows swift cleaning
- Solid ABS housing is durable for industrial use
- Three-point ShockProtect feature helps prevent overload damage to internal components
- Hook included for weighing below the balance
- HandiCal® internal calibration eliminates need for external weight set
- USB and RS-232 interfaces provide speedy communication with computers and printers
Software
- Audible overload alarm warns when capacity is exceeded
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering helps minimize effects of vibration and disturbances
- Parts counting with preset sample sizes
- Memory accumulation totals results
- Zero-tracking feature ensures display returns to zero reading
Display
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to “always on,” “always off” or “light only when weighing”
- Capacity tracker built into display for easily monitoring possible overloads
Power
- AC adapter included
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
| Specifications | ||
| Capacity | 1000g | |
| Repeatability | 0.01g | |
| Calibration | External calibration / Internal manual calibration | |
| Pan Size | 4.7″ ø / 120mm ø | |
| Power Supply | 12VDC 800mA adapter / Internal rechargeable battery | |
| Interface | RS-232, USB | |
| Net Weight | 4.4lb / 2kg | |
| Approvals | N/A | |
| Readability | 0.01g | |
| Weighing Units | g, lb, oz, N, GN, ct, dr, dwt, mm, ozt, T, tl.H, tl.S, tl.T | |
| Stabilization Time | 2.0 | |
| Linearity | 0.02g | |
| Construction | ABS plastic | |
| Operating Temperature | 0° to 40°C / 32° to 104°F | |
| Overall Dimensions | 6.9″x9.9″x3.1″ / 174x252x80mm (wxdxh) | |
| Display Digit Height | 0.7″ / 18mm | |
| Electrical Safety Mark | CE, cUL | |
| Battery Life (Hours) | 24.0 | |
