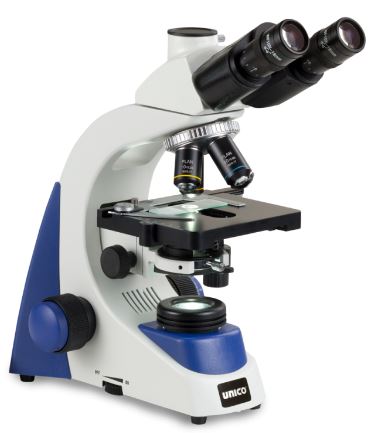

G383-LED / G383SP-LED / G383PL-LED / G383-PH-40 -Med/Vet Practice Microscope- Unico


Compare

$1,504.00$2,142.00

Clear

The G380 combines state of the art design and features with the latest optical coating technologies for crisp, clear imaging on a versatile and ergonomic platform. All models in the G380 series feature “High-Eyepoint” 10x widefield eyepieces. This unique design allows users wearing glasses to comfortably view through the scope without removing their glasses as they would have to with traditional eyepieces.

Available with your choice of Monocular, Dual-View,Binocular, or Trinocular heads, all of which rotate 360°.

Select from standard Achromat, Semi-Plan, or flat-field Plan achromat objectives.Includes a focusable 1.25 NA Abbe condenser with Iris Diaphragm, oversized graduated coaxial coarse and fine focus controls, swing-out filter holder and a port to allow insertion of a Phase Annulus for Phase microscopy. A ballbearing movement mechanical stage is also standard with low position coaxial controls. Features an integrated dual voltage transformer (110V and 220V) and a detachable power cord so you can use this scope anywhere in the world.

  • SEIDENTOPF TRINOCULAR HEAD
  •  WF10X PAIRED EYEPIECES
  •  4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
  •  BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
  •  LED ILLUMINATION



Specifications G383-LED G383SP-LED G383PL-LED G383-PH-40
Head Trinocular Trinocular Trinocular Trinocular
Eyepiece 10X WF Hi-EP 10X WF Hi-EP 10X WF Hi-EP 10X WF Hi-EP
Objectives Achromat 4,10,40,100X Semi-Plan 4X/10X/40X/100X Plan 4X/10X/40X/100X Achromat 4,10,100X and 40X-SP-PH with 40X Phase Slider
Condenser NA 1.25 NA 1.25 NA 1.25 NA 1.25
Diaphragm Iris Iris Iris Iris
Stage Mechanical Mechanical Mechanical Mechanical
Illumination LED LED LED LED
Bulb 3 Watt LED 3 Watt LED 3 Watt LED 3 Watt LED
Focusing Coaxial Coaxial Coaxial Coaxial
SKU: G383-LED / G383SP-LED / G383PL-LED / G383-PH-40 Categories: , , Tags: , , , Brand:
Product

G383-LED (4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES), G383SP-LED (4X,10X,40XR,100XR DIN SEMI-PLAN ACHROMAT OBJECTIVES), G383PL-LED (4X,10X,40XR,100XR DIN PLAN ACHROMAT OBJECTIVE), G383-PH-40 (4X, 10X, 100X BRIGHTFIELD ACHROMAT AND 40X SP-PH OBJECTIVES)
