EC-1648/EC-3024/EC-5108, Evatros T.C.S™ (Total sample Concentration System), Goojung


Compare

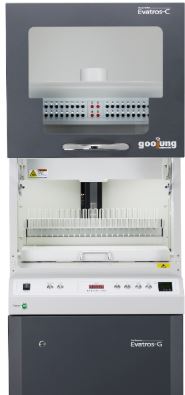

Evatros T.C.S™ is total sample concentration system featuring an evaporator, hood function and a gas generator.

$26,300.00$31,400.00

Clear

Evatros T.C.S™ is total sample concentration system featuring an evaporator, hood function and a gas generator.

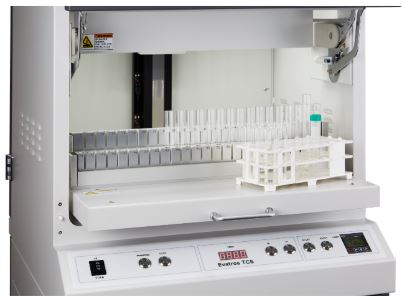

Evatros C, an evaporator concentrates up to 48 samples at the same time and the terraced structure and slit of the aluminum test tube block enables users to monitor the progress of sample preparation.

Evatros G, a gas generator selectively supplies either nitrogen or dry air depending on the experimental purpose of a lab researcher.

Evatros T.C.S™

  • One integrated system featuring an evaporator, hood function and a gas generator
  • Up to 48 sample concentration
  • Independent gas supply contro for each nozzle
  • Up/Down button adusting nozzle position.
  • 5-way gas blowing nozzle drying the condensed solvent vapor on the inner wall of test tubes.
  • Aluminium test tube block with heating function (Ambient~80℃)
  • Easy observation of the progress of sample concentration through slit of the test tube block
  • Production of custom-made test tube block covering a variety of tube shapes or volumes
  • Easily replaceable test tube block depending on the sizes of test tubes
  • Convenient arrangement of test tubes in a test tube block on Pull & Push shelf
  • Timer: automatic gas shut-off with going off alarm when timer setting time is finished
  • Option 1: Acid-proof option for acid-solvent use
  • Option 2: UV blocking option for samples sensitive to UV



Application

  • Food Industry
  • Pharmaceutical Industry
  • Forensic science
  • Chemical Industry
  • Water Quality Environment
  • Agriculture and Fishery products
  • Veterinary research institute
  • Cosmetic Industry
Product name Evatros C
Part number EC-1648 EC-3024 EC-5108
No. of samples 48 24 8
Diameter of test tube(mm) 16 30 51
No. of nozzles 48 24 24*
Heating method Aluminum test tube block (No need to use water)
Temperature range Aluminum test tube block (No need to use water)
Temperature range Ambient ~ 80℃
Electrical requirements 220[V], 50/60[Hz], 2.5[A]
Dimensions(CM) 80(H) x 64(W) x 75(D)
Weight(KG) 98 98 107
Inlet gas requirement(N2)** 60L/min @ 30psi 60L/min @ 30psi 60L/min @ 30psi
Inlet gas requirement(Dry Air)** 120L/min @ 30 psi 120L/min @ 30 psi 120L/min @ 30 psi
SKU: EC-1648/EC-3024/EC-5108 Categories: , Tags: , , , , Brand:
Weight N/A
Dimensions 29.53 × 25.2 × 31.5 in
Product

EC-5108, EC-1648S (Evatros C (2~16ml Tube, 48 Hole) + Evatros G (60L N2 & 200L Dry Air Switching)), EC-1648N (Evatros C (2~16ml Tube, 48 Hole) + Evatros G (60L/min N2)), EC-1648A (Evatros C (2~16ml Tube, 48 Hole) + Evatros G (200L/min Dry Air)), EC-3024S (Evatros C (50ml Tube, 24 Hole) + Evatros G (60L N2 & 200L Dry Air Switching)), EC-3024N (Evatros C (50ml Tube, 24 Hole) + Evatros G (60L/min N2)), EC-3024A( Evatros C (50ml Tube, 24 Hole) + Evatros G (200L/min Dry Air)), EC-5108S (Evatros C (200ml Tube, 8 Hole) + Evatros G (60L N2 & 200L Dry Air Switching)), EC-5108N (Evatros C (200ml Tube, 8 Hole) + Evatros G (60L/min N2))
