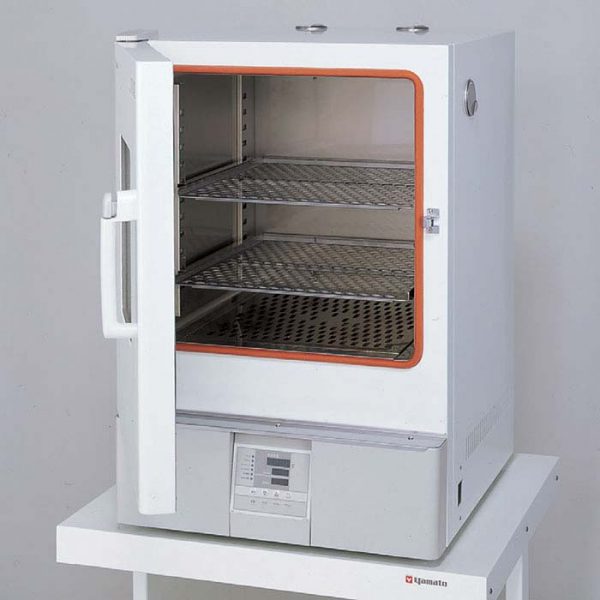

DVS402C/412C/602C/612C Natural Convection Oven Yamato
$1,950.00 – $2,644.00
Programmable natural convection constant temperature drying ovens incorporating programmable operation functions and enhanced safety features and operability
Operation and functions
- Excellent temperature accuracy
- Easy to use and maintain
- Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
- Simultaneous display of set constant and measured temperature
- Quick Auto stop, Auto Stop, Auto Start operations
- Increased safety and self-diagnostic functions
- Calibration off-set function
Safety features
- Self-diagnostic functions (Temp. sensor abnormal, Heater disconnection, Internal communication error, temperature input circuit abnormality, Automatic overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection
| Model | DVS402C DVS412C |
DVS602C DVS612C |
| Circulation Method | Natural convection | |
| Operating temp. range | Room temp.+5 to 260°C | |
| Temperature Control Accuracy | ±1.0°C (at 260°C) | |
| Temperature Distribution Accuracy | ±5.0°C (at 260°C) | |
| Maximum Temperature Reaching Time | ~90 min. (Room temp. +5°C to 260°C) | |
| Interior Material | Stainless steel | |
| Exterior Material | Cold rolled steel plate with melamine resin baking finish | |
| Heat Insulating Material | Glass wool | |
| Heater | Stainless pipe heater / 1.2kW | Stainless pipe heater / 1.36kW |
| Observation Window | 250×280 mm Chemically strengthened glass x 3 | |

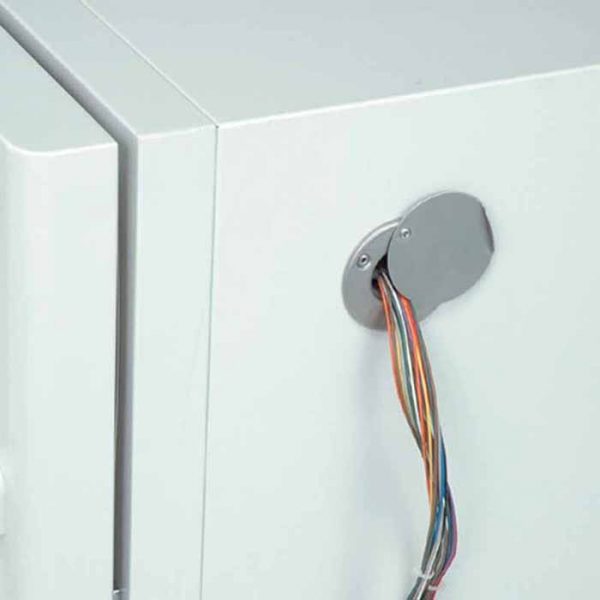

| Cable Hole | 30 mm l.D.×1 pcs. (right side) | |

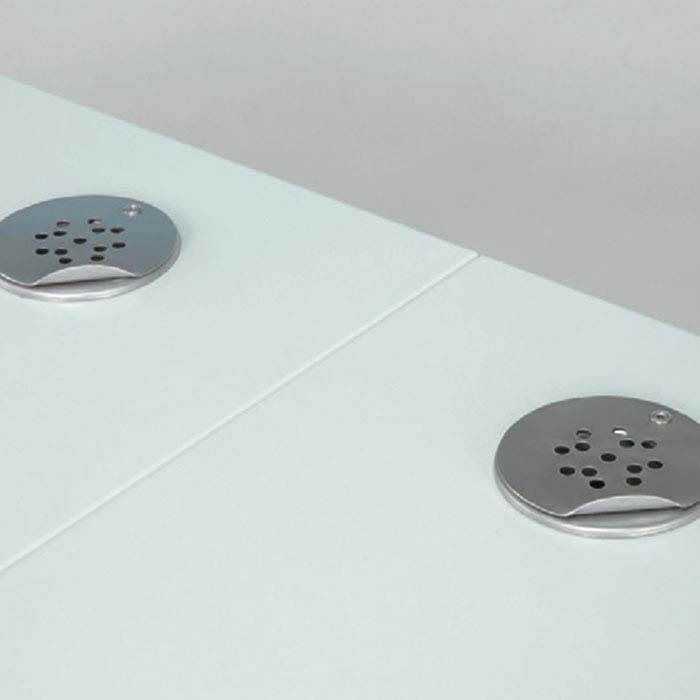

| Exhaust Port | 30 mm l.D.×2 pcs. (on top) | |
| Temp. Controller | 3 patterns program controller, PID control by microprocessor | |
| Temp. Setting Method | Operation menu key and Digital setting by ▲/▼ key | |

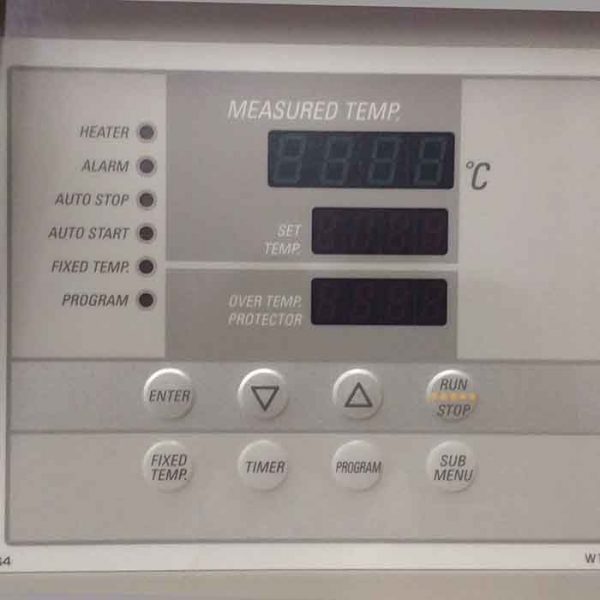

| Temp. Display Method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED | |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. | |
| Operation Function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop | |
| Program Mode | Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) | |
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function | |
| Heater Circuit Control | SSR control | |
| Sensor | K-thermocouple | |
| Safety Device | Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection | |
| Internal Dimensions (W×D×Hmm) | 450×490×450 | 600×540×500 |
| External Dimensions (W×D×Hmm) | 560×601×820 | 710×651×870 |
| Internal Capacity | 99L | 162L |
| Shelf Plate Load | ~15kg / pcs. | |
| Shelf Rest Step Number / Pitch | 9 steps / 30mm | 13 steps / 30mm |
| Power Source 50/60Hz | AC115V 12A (with plug) AC220V 6.5A (no plug, round terminal) | AC115V 13.5A (with plug) AC220V 7.5A (no plug, round terminal) |
| Weight | ~48kg | ~63kg |
| Shelf Plate / Shelf Bracket | Stainless steel, 2 pcs. / 4 pcs. | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | DVS402C (Natural Convection Oven Programmable 99L 115V 11A 50/60hz ), DVS412C (Natural Convection Oven Programmable 99L 220V 6.5A 50/60hz ), DVS602C (Natural Convection Oven Programmable 162L 115V 12.5A 50/60hz), DVS612C (Natural Convection Oven Programmable 162L 220V 7.5A 50/60hz) |
