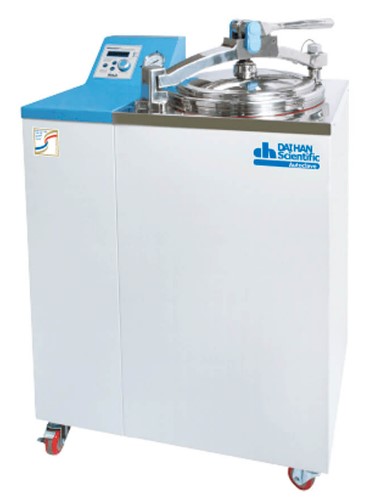

DH.WAC05047P/DH.WAC05060P/DH.WAC05080P/DH.WAC05100P/DH.WAC06047P/DH.WAC06060P/DH.WAC06080P/DH.WAC06100P- Autoclave Fuzzy control – Daihan
$4,595.00 – $7,034.00
witeg® Steam Sterilizers, Digital Fuzzy-controlled Autoclaves, “WAC”, 47-/60-/80-Lit., up to 132°C, Max.2 kgf/cm2
Electronic Door Lock, Steam Condensing Mechanism, Lever-type Sliding Door, Solid-/Liquid-Modes, CE-MDD Certified
- CE and PED Certified
- PL(Product Liability) Insurance
- with Certificate & Traceability : Controlled by Serial Number, Certificate,
- Delivery-information, and Traceable Data Base System
- Patented Special Steam Condensing Mechanism, Lever-type Sliding Door
- Built in DAIHAN® New Generation Controller : patented Jog-Di
- Electronic Door Lock Sensing System for User Safety
* Door Open Button Automatically Lock Over 80℃ for User Safety
* “B-type” Recorder model (only MaXterile 47R·60R·80R·100R models) : Print Sterilization Cycle Data for Validation and Analyze Sterilization (Temperature, Pressure, Time, Error Status, etc.)
* Ideal for Biotechnology, Clinical, Environmental, Medical and Food Industry.
* Digital Timer Function – ‘Delay Time’ and ‘Operation Time’ can be Controlled.
* Water Low Level Detection
* Automatic Over Pressure Release Valve ensures User Safety.
* Sterilization Error Indication : Error Alarm and Message in case of Power Failure and Temperature Error
| Specification | |||||
| A. Standard-type Models | “MaXterile 47” Max. 47Lit | “MaXterile 60” Max. 60Lit | “MaXterile 80” Max. 80Lit | “MaXterile 100” Max. 100Lit | |
| B. Recorder-type Models | “MaXterile 47R” | “MaXterile 60R” | “MaXterile 80R” | “MaXterile 100R” | |
| Capacity | 47 Lit | 60 Lit | 80 Lit | 100 Lit | |
| Temp. Range & Accuracy | Room Temp +5°C to 132°C, ±0.5°C at 121°C | ||||
| Pressure & Gauge | 1.2 kgf/cm2 at 121°C / 2.0 kgf/cm2 at132°C, 0 ~ 3 kgf/cm2 | ||||
| Sterilization Mode | Solid- or Liquid-mode, Chosen by a Customer | ||||
| Heating Power/Consumptio | 2 kW | 3 kW | 2 kW×2 | 2 kW×2 | |
| Timer & Alarm | 60 min, Error status & Timer-end | ||||
| Display | Digital LCD with Back-Light Function | ||||
| Controller | Digital Fuzzy-Control System (Fully Automatic) | ||||
| Door & Closing System | Lever-type Sliding Door / Safety Electronic Door Closing System | ||||
| Safety Circuit | Over-Temp./-Pressure/-Current protection, Sensor Error Detection | ||||
| Recorder with Paper | Recorder Model: Thermal printer with 1 Record Paper Roll: w58 ×Φ40 mm 1000 Sterilization Cycle Data / roll (Date, Temperature, Pressure, Time, Error Status, etc.) | ||||
| Material | Pressure Vessel-Stainless-steel(＃304), External-Powder Coated stee | ||||
| Basket (Included) | 2 Stainless-steel Wire Basket | ||||
| Basket Dimension (mm) | Φ270×h240 | Φ320×h240 | Φ370×h240 | Φ420×h240 | |
| Dimension (w×d×h) inner(mm) | Φ300×h67 | Φ350×h650 | Φ400×h650 | Φ450×h630 | |
| Dimension (w×d×h) outer(mm) | 700×470×1080 | 700×470×1080 | 810×580×1140 | 810×580×1140 | |
| Packing Size (mm) | 840×610×h1,252 mm | 950×730×h1,352 mm | |||
| Gross Weight (kg) | 117 kg | 120 kg | 170 kg | 170 kg | |
| Electric Reqts | 1Phase – AC 120V, 60Hz or 1Phase – AC 230V, 50/60Hz | 1 Phase – AC 120V, 60Hz or -AC 230V, 50/60Hz 3 Phase with Terminal Block | |||
| (1) With PED(Pressure Equipment Directive) Certification, Φ3.0mm Thickness Tank | |||||
| A. Standard-type / Cat. No | 230V | DH.WAC05047P | DH.WAC05060P | DH.WAC05080P | DH.WAC05100P |
| 120V | DH.WAC06047P | DH.WAC06060P | DH.WAC06060P | DH.WAC06100P | |
| 3Phase | – | – | DH.WAC07080P | DH.WAC07100P | |
| B. Recorder-type Cat. No. | 230V | DH.WACR2047P | DH.WACR2060P | DH.WACR2080P | DH.WACR2100P |
| 120V | DH.WACR1047P | DH.WACR1060P | DH.WACR1080P | DH.WACR1100P | |
| 3Phase | – | – | DH.WACR3080P | DH.WACR3100P | |
| (2) Without PED(Pressure Equipment Directive) Certification, Φ2.0mm Thickness Tank | |||||
| A. Standard-type Cat. No | 230V | DH.WAC05047 | DH.WAC05060 | DH.WAC05080 | DH.WAC05100 |
| 120V | DH.WAC06047 | DH.WAC06060 | DH.WAC06080 | DH.WAC06100 | |
| 3Phase | – | – | DH.WAC07080 | DH.WAC07100 | |
| B. Recorder-type Cat. No. | 230V | DH.WACR2047 | DH.WACR2060 | DH.WACR2080 | DH.WACR2100 |
| 120V | DH.WACR1047 | DH.WACR1060 | DH.WACR1080 | DH.WACR1100 | |
| 3Phase | – | – | DH.WACR3080 | DH.WACR3100 | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | DH.WAC05047P (Autoclave Fuzzy control, 47Lit. MaXterile 47, 230V), DH.WAC05060P (Autoclave Fuzzy control, 60Lit. MaXterile 60, 230V), DH.WAC05080P (Autoclave Fuzzy control, 80Lit. MaXterile 80, 230V), DH.WAC05100P (Autoclave Fuzzy control, 100Lit. MaXterile 100, 230V), DH.WAC06047P (Autoclave Fuzzy control, 47lit. MaXterile 47, 120V), DH.WAC06060P (Autoclave Fuzzy control, 60lit. MaXterile 60, 120V), DH.WAC06080P (Autoclave Fuzzy control, 80lit. MaXterile 80, 120V), DH.WAC06100P (Autoclave Fuzzy control, 100lit. MaXterile 100, 120V) |
