CF302LA/CF312LA/CF800-115V/CF800-220V- CF Series Refrigerated Water Circulators- Yamato
$1,598.00 – $3,380.00
Powerful and water saving closed cooling system with excellent cooling capacity
Common to all models
- Environment friendly coolant used for refrigeration
- Compact and space-saving to fit on laboratory tables and limited space
CF302LA/CF312LA

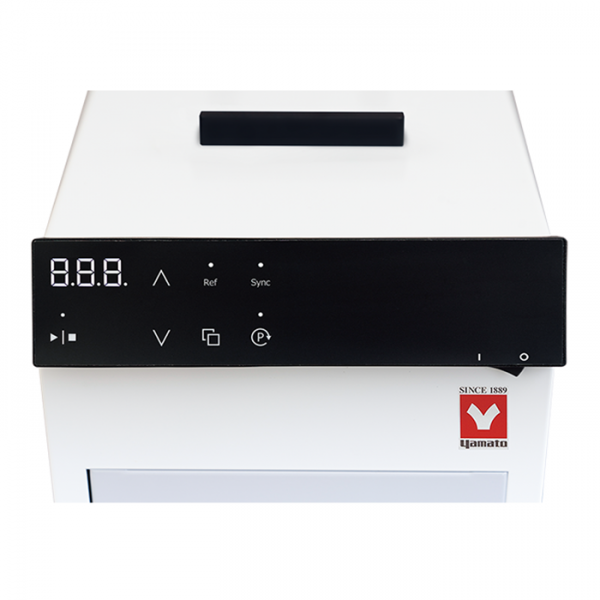

- User-friendly controller

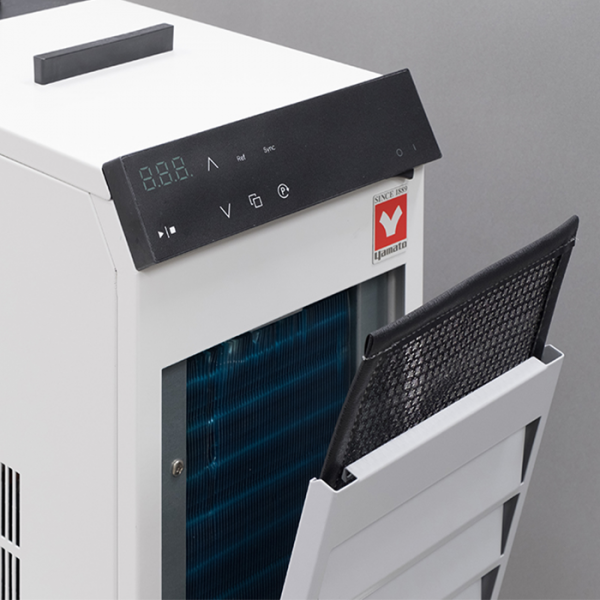

- Easy maintenance of air intake filter

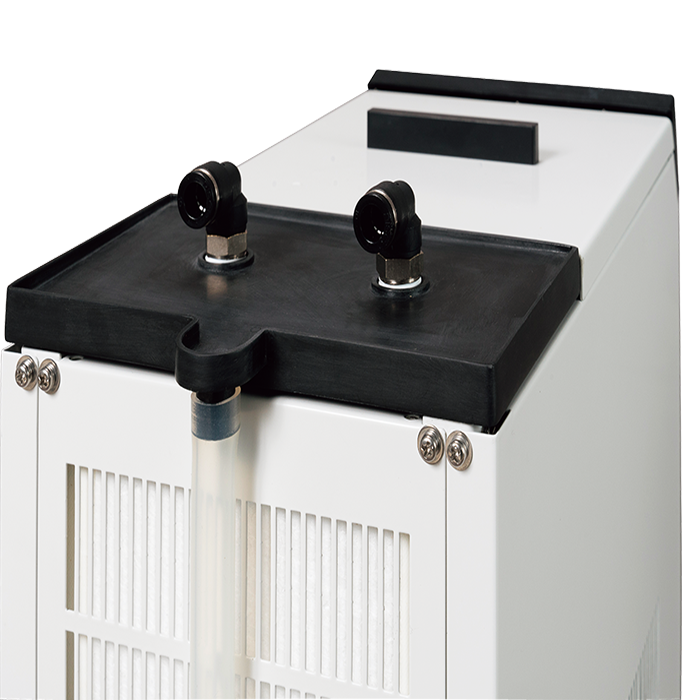

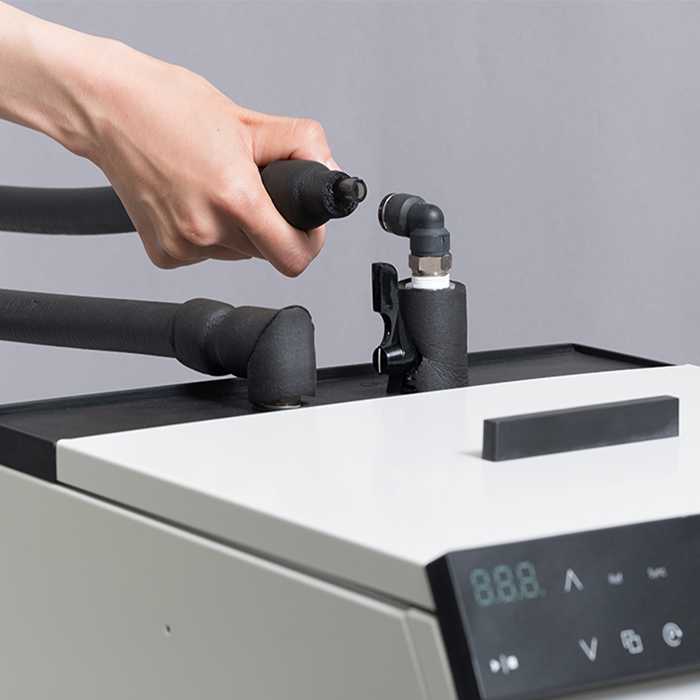

- Rotatable connector which can freely be moved and be set in the desired orientation
- Convenient drainage of waste water
- Features calibration offset function which compensates discrepancy between actual liquid temperature and display temperature
- Auto resume function allows user to select whether to resume operation or to remain at standby at the time of recovery from power failures

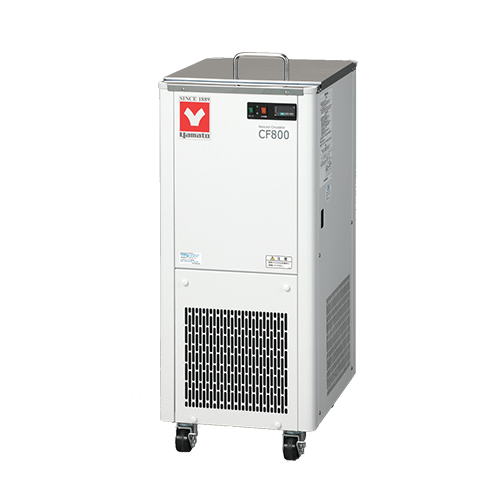

CF800
- Waterproof touch panel with big LED display and sheet key for easier setting
- Less energy use and less cooling capacity loss by fixing the heat-resistant lid
- Powerful cooling and big energy saver in combination with rotary evaporator distillation
- Up to 4 rotary evaporators can be connected saving investment and operation cost
| Models | CF302LA CF312LA |
CF800-115V CF800-220V |
|
| Circulation Type | Closed circulation/tap water, anti-freeze solution (below 10°C) | ||
| Operational Ambient Temperature | 5 to 35°C | ||
| Operating Temperature Range | -20°C ~ 30°C (no heating function) | -20°C ~ Room temperature | |
| Cooling Capacity | ~420W at Liquid Temp. 10°C ~280W at Liquid Temp. -10°C |
~1050W (830Kcal/h) at Liquid Temp. 10°C ~910W (780Kcal/h) at Liquid Temp. 0°C ~670W (570Kcal/h) at Liquid Temp. -10°C |
|
| Temperature Control | Refrigerator on/off control | ||
| Temperature Sensor | Pt100Ω | T-Thermocouple (with SUS Protection Tube) | |
| Temperature Setting / Display | White LED digital display, key entry, minimum digit of 1°C | Digital setting / LED display | |
| Refrigerator | Air cooling, 450W | Air cooling, 600W | |
| Coolant | R404A | ||
| Circulation Pump | 15W/20W | Magnet pump 65/65W | |
| Circulation Capacity (50/60Hz) | Max. flow rate | 10L/min. | 16.9/19.6L/min |
| Max. lift | 5.7m | 10.3/14.3m | |
| Cooling Coil | Copper/Nickel plating | ||
| Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | ||
| External Circulation Nozzle | One touch connector (swivel type, L type) / Flow rate valve (optional) | O.D. 10.5mm for in and out with hose nipple | |
| Safety Device | Overcurrent ELCB, temp. sensor failure, temp. upper/lower limit alert, temp. upper/lower limit error, refrigerator high pressure cut off switch fan motor protection, circulation pump protection, delay timer for refrigerator protection | Electric leakage breaker, refrigerator over load relay, pump thermal protector, refrigerator-protection delay timer | |
| Other Functions | Drain hose, condensate drain hose, Intake dust filter, cooling operation key, circulating pump key, calibration offset, Auto resume function | Drain, over flow | |
| Water Bath Dimension | – | ø300 x H235 mm | |
| Water Bath Material | Stainless Steel | Stainless Steel | |
| Water Bath Capacity | ~3.9L (Liquid volume 3.5L) | ~16L (Liquid Amount 14L) | |
| Power Source (50/60Hz) | AC115V 7.5A AC220V 4A |
AC115V 12.5A AC220V 7A |
|
| External Dimension WxDxH | 205 x 396 x 535 mm 225 x 434 x 564 mm |
350 x 480 x 1240 mm 350 x 480 x 1240 mm |
|
| Weight | ~31kg | ~72kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | CF-302L-A (Cooling Water Circulator 3.9L 115V), CF-312L-A (Cooling Water Circulator 3.9L 220V), CF-800-115V (Cooling Water Circulator 16L 115V), CF-800-220V (Cooling Water Circulator 16L 220V) |
