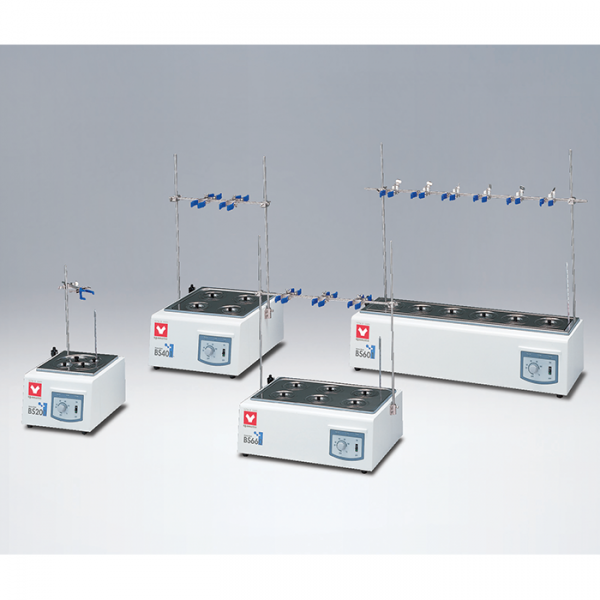

BS200/401/601/660 Water Bath Yamato
Energy-saving constant temperature water bath standard equipped with overheat prevention device and electric leakage breaker
$1,107.00 – $1,792.00
Energy-saving constant temperature water bath standard equipped with overheat prevention device and electric leakage breaker
Features
Performance and functions
- BS200
4 types of accessorial baskets. Maximum 5L beaker can be set after removing the lid - BS401

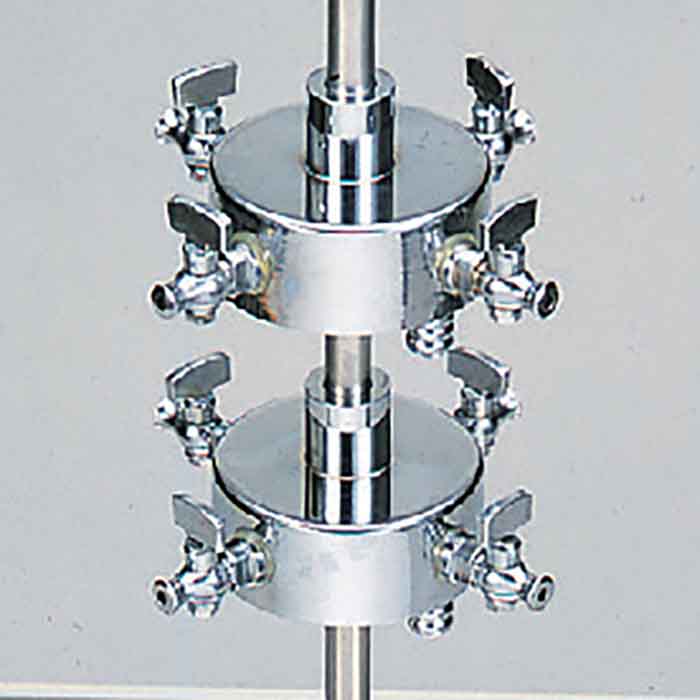

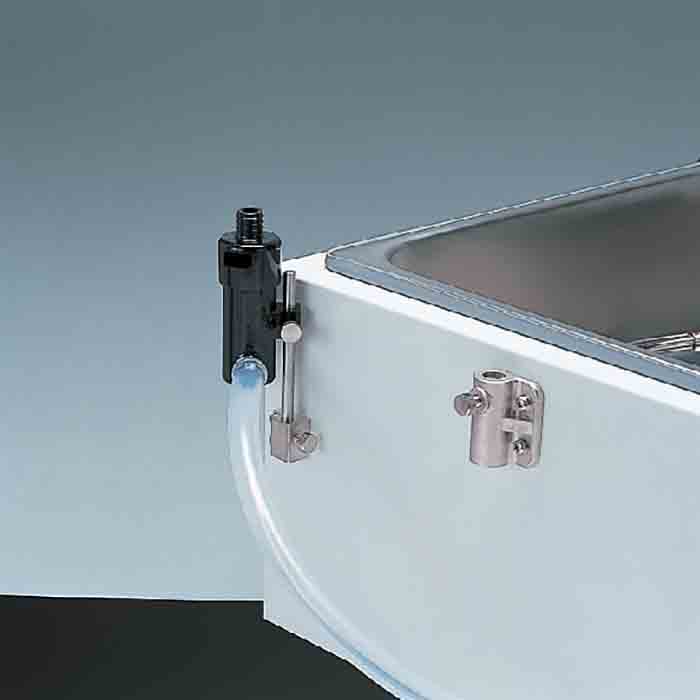

Comes with 4 container mounting clamps and cooling water distributor (optional item) - BS601
Up to 6pcs. of containers can be used simultaneously - BS660
Fits small and large containers. Up to 6 pcs. can be used simultaneously. Sink level can be adjusted
| Model | BS200 | BS401 | BS601 | BS660 | |
| Operating Temp. Range | RT+5°C~Water boiling point *¹ | ||||
| Temp. Adjustment Accuracy | ±3°C (at 70°C) | ||||
| Temp. Distribution Accuracy | ±5°C (at 70°C) | ||||
| Max. Temp. Reaching Time | ~30min. | ~40min. | ~55min. | ~60min. | |
| Internal Tank Material | Stainless steel | ||||
| Heater | Copper Pipe Heater (Nickel Plated) | ||||
| 0.9kW | 1.3kW | 1.3kW | 1.3kW | ||
| Safety Device | Overheat prevention system (Liquid expansion type, Self sustaining relay, Alarm lamp), Electric leakage breaker with overcurrent protection | ||||
| Internal Dimension | ø200 x D149mm | L328 x W302 x D99mm | L790 x W150 x D102mm | L502 x W302 x D99mm | |
| ø186 x D115mm | L298 x W260 x D64mm | L776 x W140 x D73mm | L468 x W260 x D66mm | ||
| External Dimension *² | L300 x W364 x H216mm | L390 x W438 x H214mm | L864 x W288 x H215mm | L565 x W437 x H214mm | |
| Bath Capacity | ~4.7L | ~9L | ~12L | ~14L | |
| Power Source (50/60Hz) | AC115V, 8A | AC115V, 11.5A | AC115V, 11.5A | AC115V, 11.5A | |
| AC220V, 4.5A | AC220V, 6A | AC220V, 6A | |||
| Opening Size (Mm), Quantity | ø101, ø77, ø62, ø45 | ø115, 4pcs | ø115, 6pcs. | ||
| AC220V, 6A | AC220V, 4.5A | AC220V, 6A | AC220V, 6A | AC220V, 6A | |
| Weight | ~5kg | ~9.5kg | ~16kg | ~12kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | BS200 (Energy Saving Water Bath 4.7L 115/220V), BS401 (Energy Saving Water Bath 9L 115/220V), BS601 (Energy Saving Water Bath 11L 115/220V), BS660 (Energy Saving Water Bath 14L 115/220V) |
