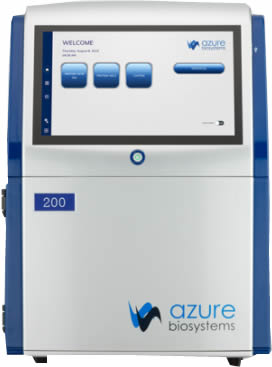

Gel Imaging Workstation
Easily image DNA and protein gels images without a darkroom with the Azure 200.
Use your choice of dyes or stains and the system automatically selects the light source and filters for you—UV for Ethidium bromide-stained DNA gels, blue light for SYBR®Safe or similar dyes, white light for Silver stain or Coumassie Blue.
Product Features
- Compact design—38cm W X 55cm H X 36cm D, keep more space free on your bench
- Fully upgradable—add fluorescent or chemiluminescent Western detection capabilities as your needs evolve
Resources: Azure Imaging Systems Brochure (PDF)
| SPECIFICATIONS | ||
| Camera | 5.4 MP 16-bit, 65,536 grayscale | |
| Peltier Cooling | N/A | |
| 7 Position Filter Wheel | ✔ | |
| Trans UV302 and 365nm | ✔ | |
| Color Imaging/Visible Imaging | ✔ | |
| Trans-white imaging | ✔ | |
| Chemiluminescence | – | |
| Visible/RGB Fluorescent Imaging | – | |
| NIR Fluorescence Imaging | – | |
| Epi Blue Light Imaging | ✔ | |
| Q module option | – | |
| UV Safety Override Switch | ✔ | |
| Field of View | 20 x 15 cm | |
| Footprint (W x H x D) | 42 x 56 x 33 cm | |
