FEATURES

  • Three printhead mounts compatible with CELLINK INTELLIGENT PRINTHEADS
  • Temperature Controlled Printbed (4 C to 60 C), compatible with standard petri dishes, multi wellplates, and custom inserts
  • Compatible with a WIDE RANGE OF BIOINKS IN OUR LIBRARY
  • Clean chamber technology with UV-C germicidal lamps and HEPA H14 dual-filter system
  • Exchangeable Photocuring Modules – 365 nm, 405 nm, 485 nm and 520 nm
  • Built in bioprinting workflow, including slicing of 3D models, wellplate printing, droplet printing, and G-Code compatible
  • READ OUR LATEST APPLICATION NOTE on natural killer cell assay workflow on the BIO X

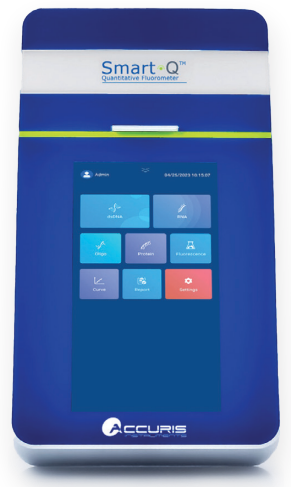

The Accuris™ Smart-Q™ 100 & Smart-Q™ 800 Fluorometers are designed for the precise quantification of DNA, RNA, and protein samples. By utilizing well-established methodologies for fluorescence detection, the Smart-Q Fluorometers provide higher specificity and enhanced accuracy compared to the traditional method of UV-absorbance detection. Accurate results are particularly crucial in workflows involving:

  • Next Generation Sequencing
  • PCR
  • Transfection
  • Western blotting
  • Immunoassays

The Smart-Q Fluorometers are engineered to achieve optimal performance with Accuris’ Fluorescent DNA Quantification Kits and assay tubes; however, they also maintain compatibility with a range of kits offered by various other suppliers.
Accurate Quantification

The Smart-Q Fluorometers, along with their accompanying assay kits, are engineered for the precise measurement of fluorescent dye signals that are bound to targeted biological molecules. These specially formulated dyes exhibit selective affinity towards DNA, RNA, or proteins, and generate fluorescent signals exclusively upon binding to their respective targets. Both Smart-Q models include Blue and Red channels that allow for various fluorescent dyes to be used in nucleic acid and protein measurements

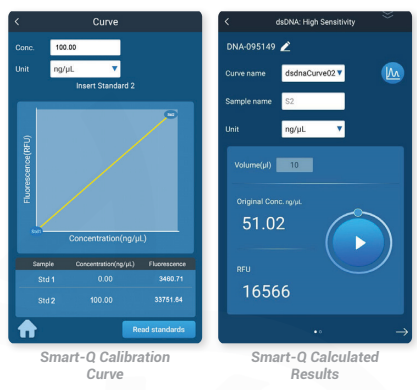

The Smart-Q Fluorometers incorporate advanced curve-fitting algorithms to establish calibration curves from standard samples of known concentrations.

The concentration of an unknown sample, whether it be DNA, RNA, or protein, is determined by correlating its Relative Fluorescence Units (RFUs) with those of the standards employed during calibration. The measurement sensitivity for each type of assay is distinct and defined by its detection limits

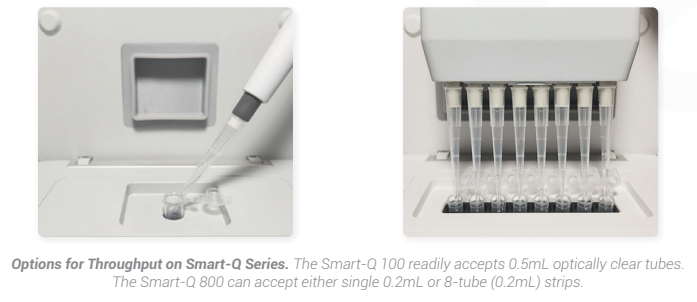

Options for Throughput
The Smart-Q portfolio includes two distinct
models, each designed to meet specific laboratory
requirements:The Smart-Q 100 allows for single-sample processing in 0.5mL assay tubes. This renders the Smart-Q 100 ideal for laboratories processing fewer samples.The Smart-Q 800 caters to high-throughput workflows and allows for up to eight samples to be evaluated at once using individual 0.2mL tubes or 8 x 0.2mL strips tubes (Order no. F1001-T and F1001-T-8, ). The use of a standard 8-channel pipettor can streamline both the reagent preparation and sample transfer, making the Smart-Q 800 an efficient solution for workflows requiring parallel processing of multiple samples.
Specifications
Model Smart-Q™ 100 Fluorometer (F1001) Smart-Q™ 800 Fluorometer (F1008)
Display 7.0-inch, color touch screen 7.0-inch, color touch screen
Dynamic Range 5 orders of magnitude 4 orders of magnitude
Light Source Blue LED Blue LED
Red LED Red LED
Emission Wavelength Green: 525 – 570nm Green: 525 – 570nm
Red: 670 – 725nm Red: 670 – 725nm
Stability ≤ 1.5% ≤ 1.5%
Detector Photodiodes Photodiodes
Measurement Speed ≤ 5 seconds ≤ 6 seconds
Calibration type 2–3-point standard 2–3-point standard
Consumable type 0.5mL assay tubes 0.2mL assay tubes (single and 8-tube strip)
Input Voltage 24 VDC 2A 24 VDC 2A
Dimensions (WxDxH) 16.1 x 28.7 x 6.1cm / 6.34 x 11.30 x 2.40in. 16.1 x 28.7 x 7.6 cm / 6.3 x 11.3 x 3.0 in
Weight 1.6kg / 3.5lbs 2.0kg / 4.4lbs
SKU: Smart Q Categories: , Brand:
Weight N/A
Dimensions N/A
Product

F1001* (Accuris™ Smart-Q™ 100 Fluorometer, 115V), F1008*( Accuris™ Smart-Q™ 800 Fluorometer, 115V), F1000-HS-100** (High Sensitivity dsDNA Quantification Kit, 100 assays), F1000-BR-100** (Broad Range dsDNA Quantification Kit, 100 assays), F1001-T (0.5mL Fluorescence Detection Tubes, pack of 250), F1008-T (Smart-Q™ 800 Assay Tubes, pack of 1000), F1008-T-8 (Smart-Q™ 800 Assay Tube Strips, pack of 120)
