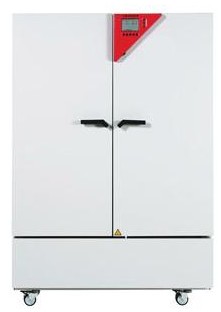

9020-0320,9020-0321,9020-0322,9020-0323,9020-0324,9020-0325,9020-0326,9020-0327 KBF Series Humidity Test Chambers with Large Temperature/Humidity Range Binder
The BINDER KBF is the specialist for unconditionally reliable stability testing and precise maintenance of constant
climatic conditions. From programming to documentation, it meets all critical requirements.
$18,885.00 – $30,599.00
The KBF is the specialist for unconditionally reliable stability testing and precise maintenance of constant climatic conditions. From programming to documentation, it meets all critical requirements.
- Temperature range: 0°C to 70°C
- Humidity range: 10% to 80% RH/li>
- APT.line™ preheating chamber technology
- Humidification system with condensation protection
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Inner chamber made of stainless steel
- Intuitive touchscreen controller with time-segment and real-time programming with internal data recording
- Tight-sealing inner door made of safety glass (ESG) with special TIMELESS coating
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
| Description | Interior volume | Housing dimensions not incl. fittings and connections (W x H x D) | Internal dimensions (W x H x D) | Net weight |
| Model KBF 115 | 3.6 cu.ft. | 34.67 x 41.4 x 25.61″ | 23.64 x 19.03 x 13.83″ | 284 lbs |
| Model KBF 240 | 8.7 cu.ft. | 36.45 x 57.5 x 31.52″3 | 25.61 x 30.93 x 19.11″ | 406 lbs |
| Model KBF 720 | 24.7 cu.ft. | 49.3 x 75.8 x 35.07″ | 38.34 x 49.3 x 22.69″ | 681 lbs |
| Model KBF 1020 | 36 cu.ft. | 49.3 x 75.8 x 45.1″ | 38.45 x 49.3 x 32.94″ | 805 lbs |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | 9020-0320(KBF 115 Constant Climate Chamber, 200-230V 50/60Hz), 9020-0321(KBF 115 Constant Climate Chamber, 200-240V 50/60Hz), 9020-0322(KBF 240 Constant Climate Chamber, 200-230V 50/60Hz), 9020-0323(KBF 240 Constant Climate Chamber, 200-240V 50/60Hz), 9020-0324(KBF 720 Constant Climate Chamber, 200-230V 50/60Hz), 9020-0325(KBF 720 Constant Climate Chamber, 200-240V 50/60Hz), 9020-0326(KBF 1020 Constant Climate Chamber, 200-230V 50/60Hz), 9020-0327(KBF 1020 Constant Climate Chamber, 200-240V 50/60Hz) |
