Laboratory Equipment, Ovens

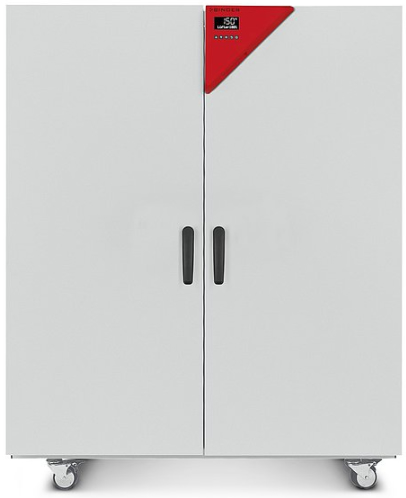

9010-0341- Drying and heating chambers Avantgarde.Line with natural convection ED 720-Binder
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all
thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
$8,644.00
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all
thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Important characteristics
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
| Designation | ED720-400V | |
| Option model | Standard | |
| Order number | 9010-0341 | |
| Measures | ||
| Interior volume [L] | 743 | |
| Net weight of the unit (empty) [kg] | 169 | |
| permitted load [kg] | 315 | |
| Load per rack [kg] | 45 | |
| Doors | ||
| Inner doors | 2 | |
| Unit doors | 2 | |
| Internal Dimensions | ||
| Width [mm] | 960 | |
| Height [mm] | 1280 | |
| Depth [mm] | 605 | |

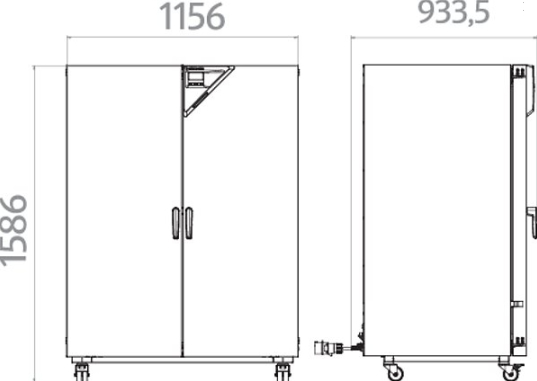

| Outer dimensions | ||
| Width net [mm] | 1165 | |
| Height net [mm] | 1590 | |
| Depth net [mm] | 870 | |
| Wall clearance back [mm] | 160 | |
| Wall clearance sidewise [mm] | 100 | |
| Environment-specific data | ||
| Energy consumption at 150 °C [Wh/h] | 700 | |
| Fixtures | ||
| Number of shelves (std./max.) | 2/16 | |
| Performance Data Temperature | ||
| Temperature range 5 °C above ambient temperature to [°C] | 300 | |
| Temperature variation at 150 °C [± K] | 3.2 | |
| Temperature fluctuation at 150 °C [± K] | 0.8 | |
| Heating-up time to 150 °C [min] | 85 | |
| Recovery time after 30 seconds door open at 150 °C [min] | 25 | |
| Electrical data | ||
| Rated Voltage [V] | 400 | |
| Power frequency [Hz] | 50/60 | |
| Nominal power [kW] | 4.1 | |
| Unit fuse [A] | 16 | |
| Phase (Nominal voltage) [ph] | 3 | |
| Weight | 372.5 lbs |
|---|---|
| Dimensions | 34.3 × 45.9 × 62.6 in |
