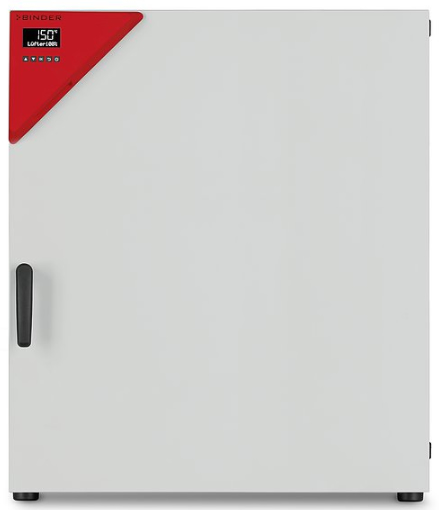

9010-0309-9010-0310-Drying and heating chambers Avantgarde.Line with forced convection FD 260-Binder
A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required.
$5,312.00
A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous
temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Important characteristics
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
| Designation | FD260-230V | FD260UL-240V |
| Option model | Standard | Standard |
| Order number | 9010-0309 | 9010-0310 |
| Measures | ||
| Interior volume [L] | 259 | 259 |
| Net weight of the unit (empty) [kg] | 85 | 85 |
| permitted load [kg] | 270 | 270 |
| Load per rack [kg] | 40 | 40 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 650 | 650 |
| Height [mm] | 780 | 780 |
| Depth [mm] | 515 | 515 |
| Outer dimensions | ||
| Width net [mm] | 810 | 810 |
| Height net [mm] | 965 | 965 |
| Depth net [mm] | 760 | 760 |
| Wall clearance back [mm] | 160 | 160 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Environment-specific data | ||
| Energy consumption at 150 °C [Wh/h] | 410 | 410 |
| Sound-pressure level [dB(A)] | 43 | 43 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/8 | 2/8 |
| Performance Data Temperature | ||
| Temperature range 10 °C above ambient temperature to [°C] | 300 | 300 |
| Temperature variation at 150 °C [± K] | 1.9 | 1.9 |
| Temperature fluctuation at 150 °C [± K] | 0.4 | 0.4 |
| Heating-up time to 150 °C [min] | 19 | 19 |
| Recovery time after 30 seconds door open at 150 °C [min] | 5 | 5 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 240 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 2.3 | 2.5 |
| Unit fuse [A] | 12.5 | 16 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 187.4 lbs |
|---|---|
| Dimensions | 30 × 31.9 × 38 in |
| Product | 9010-0309, FD260-230V, 9010-0310, FD260UL-240V |
