Laboratory Equipment-Digital Stimulators for single pulse and train stimulation
,

76-0055,76-0057,76-0061 Digital Stimulators for single pulse and train stimulation Panlab

Add to Wishlist
Compare

Panlab provides a complete set of precise, compact and easy-to-use single-, double- or four-channels digital stimulators for general pharmacology and physiology such as organ/tissue bath studies.

$1,372.00 – $4,615.00

Clear
Add to Wishlist

Panlab provides a complete set of precise, compact and easy-to-use single-, double- or four-channels digital stimulators for general pharmacology and physiology such as organ/tissue bath studies.

With a wide range of stimulation parameters, these stimulators offer an excellent and low priced alternative when single pulse and train stimulation is required.

Features:

  • Pulse and Train formation entirely controlled by Microprocessor
  • Allows stimulation of more than one isolated tissue preparation
  • Stimulation by Voltage and Current
  • Visual short-circuit security warning
  • Square-wave pulse
  • Built-in isolated output circuit (not related to ground)
  • Selected-parameters violation warning
  • Monopulse, Continuous and Train stimulations
  • TTL signal allowing for the external control of
  • DC Output
  • 125/220-50/60Hz power supply
Tehcnical Specifications
Basic Stimulator LE12006
Number of Channels 1 channel
Pulse Frequency 0.01 – 99.99 Hz (0.01 Hz step)
Pulse Duration 0.1 – 9.9 ms (0.1 ms step)
OUTPUT Voltage 0 – 50 V (1 V resolution)
OUTPUT Max. Power 15 W (250 mA)
Accuracy ≤ 4% for timings and output
Power Supply 125/220V, 50/60Hz
PULSE GENERATOR
PULSE Frequency 1 Hz – 10 KHz (1 Hz step)
PULSE Duration 1 – 9999 μs (1 μs step); 1 – 9999 ms (1 ms step)
TRAIN Interval 0.1 – 999.9 s (1 s step)
TRAIN Duration 1 – 99.99 s (0.01 s step)
DIGITAL OUTPUT 5 V (TTL)
Accuracy ≤ 2% for timings and output
POWER UNIT
OUTPUT Voltage 0 – 100 V (1 V resolution); constant voltage (automated short circuit security)
OUTPUT Current 0 – 500 mA (5 mA resolution); constant current (automated short circuit security). Except for LE 12106: 0 – 100 mA (1 mA resolution); constant current (automated short circuit security)
OUTPUT Max Power 50 W per channel (500 mA)
Part Number Model Number Description Dimension

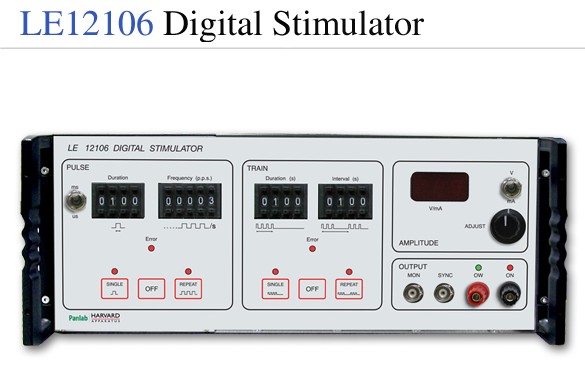

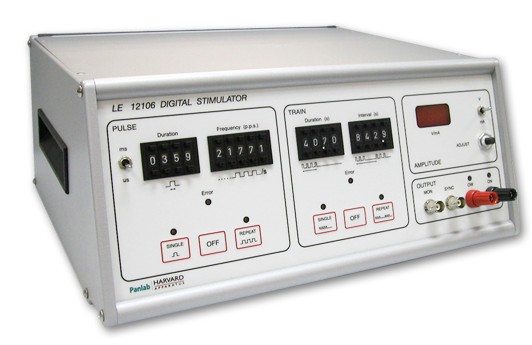

76-0055 LE12106VI 1-Channel Digital Stimulator including 1 Pulse generator and 1 Power unit 34 x 31 x 15 cm
76-0057 LE12206VI 2-Channels Stimulator including 2 Pulse generators and 2 Power units 45 x 35 x 19 cm
76-0061 LE12006 1-Channel Basic Stimulator for teaching purpose 29 x 27 x 7 cm
SKU: 76-0055,76-0057,76-0061 Categories: , Tags: , , , Brand:
Dimensions N/A
Product

76-0055(Stim,100 V or 100 MA Output), 76-0057(2CH. Stim, 100V/100MA Output), 76-0061(Student Stimulator)
