58640/58643/58645- Robot Stereotaxic Instruments for Mouse- Stoelting


Compare

$6,680.00$15,371.00

Clear

Description

Our Mouse-specific Stereotaxic Instruments were specifically designed for use with knock-out and transgenic mice. Robotic Mouse Stereotaxic Instruments include customized motors and the state-of-the-art StereoDrive software to allow motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes. The intuitive movement control and integrated stereotaxic atlas enables unprecedented accuracy and higher throughput in all stereotaxic applications.

Overview

The 51705 Robot Drill and Microinjector System, Mouse only includes the following:

1 ea. 51715 Robotic Lab Standard Stereotaxic, Mouse with StereoDrive software and controller

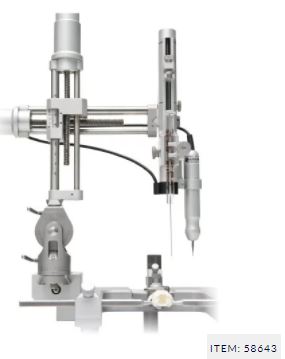

1 ea. 58643 Robot Drill & Injection Bundle for Motorized Stereotaxic Systems

1 ea. 51749 Robot Drill AutoStop Function, ADD ON

Optional

1 ea. 51722 Laptop Computer for Motorized/Robot Stereotaxic Instruments

Detail

StereoDrive Software

Included with Robotic Stereotaxics

Axis StereoDrive Software integrates seamlessly with the precision controlled motors. Motor movement can be executed by using the keyboard arrow keys or clicking on the screen with the mouse.

The software coordinates motor movement of all 3 axes (anterior-posterior, medial-lateral, and dorsal-ventral) probe placement in relation to 3-dimensional visual representation of a rat (Paxinos & Watson, 6th Edition) or mouse (Watson, 3rd edition) Brain Atlas.

Features

  • Easy calibration
  • Software-driven control of stereotaxic movement
  • Virtual visualization of probe location
  • One micron resolution
  • Download coordinates to computer for recall and/or archiving
  • Angle adjustments
  • Variable speed on 2-axis (dorsal-ventral)

 Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications

Image manipulations include:

  • Spatial Rotation
  • Fixed Rotation
  • Zooming
  • Panning



SKU: 58640/58643/58645 Categories: , , , Tags: , , Brand:
Product

58640 (Robot Drill for Motorized Stereotaxic Systems), 58643 (Robot Drill & Injection Bundle for Motorized Stereotaxic Sys), 58645 (Injection Robot for Motorized Stereotaxic Systems)
