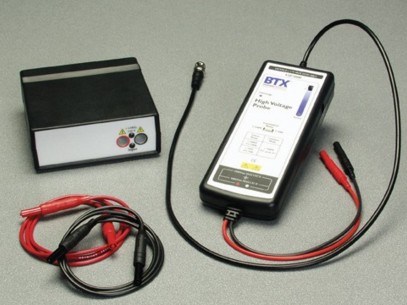

45-0471,45-0472 Enhancer 3000 Monitoring Systems BTX


Monitor critical parameters while performing electroporation applications



The Enhancer 3000 Monitoring System allows researchers to maintain efficiencies, optimize both electrical and biological parameters, view sample runs, troubleshoot possible problems and easily perform routine quality control. Communications using the USB data port permits storage and documentation of data for further analysis.

The Enhancer 3000 simply interfaces between the generator and the electroporation chamber (safety stand or BTX electroporation plate handler). In addition, the optional communications module allows the user to send the waveform information directly to a printer or a computer.

Key Features

  • Confirms and tracks all key electroporation parameters including waveform, pulse lengths, peak amplitude, pulse intervals, field strength, and AC duration
  • Monitors all waveforms for optimization or troubleshooting of electroporation parameters
  • Facilitates calculation of field strength, pulse length, pulse duration or frequency
  • Safe connections protect user from exposure to high voltage
  • Optional Communications Module offers standard printer and computer interface
Enhancer 3000 High Voltage Probe Specifications
Attenuation 1:100 / 1:1000
Bandwidth DC to 70 MHz (-3 dB)
Accuracy +/-2%
Input Impedance 10 M Ω// 10 pF each side to ground
Input Voltage:
Differential Range +/-700 V (DC+Peak AC) or 700 Vrms @ 1/100
+/-7000 V (DC+Peak AC) or 5000 Vrms @ 1/1000
Common Mode Range +/-7000 V (DC+Peak AC) or
2500 Vrms @ 1/100 & 1/1000
Absolute Max. Range 1 ±7000 V (DC+Peak AC) or 2500 Vrms
@ 1/100 & 1/1000 in common mode
±7000 V (DC+Peak AC) or 5000 Vrms
@ 1/100 & 1/1000 in differential mode
Output Voltage:
Max. Amplitude +/-7 V (into 50k ohm load)
Offset (typical) < +/-5 mV
Noise (typical) 0.9 mVrms
Source Impedance (typical) 50 Ω
CMRR (typical) -80 dB @ 60 Hz, -50 dB @ 1 MHz
Operating Temperature -10 to 40°C
Ambient Storage Temperature -30° to 70°C
Operating Humidity 25 to 85% RH
Ambient Storage Humidity 25 to 85% RH
Pollution Degree 2 (Not to be operated in conductive pollutants atmosphere
Power Requirements:
Standard 4 AA cells or optional mains adapter or regulated 9 VDC/120mA mains adapter
Length of BNC Cable 88.9 cm (35 in)
Length of Input Leads 30.48 cm (12 in)
Weight 454 g (1 lb)
Dimensions (L x W x H) 20.3 x 8.3 x 3.8 cm (8″ x 3.25 x 1.5 in)

Notes: 1. Voltage limit isthe lesser of the DC + Peak AC and RMS values. 2. a. The supplied voltage must be lessthan 12 V and greater than 4.4 V, otherwise the probe
could be damaged or will not operate properly. b. Polarityis“+”inside and “-” outside.For wrong polarity, a built-in circuit protectsthe probe; no danger or damage will occur.c. When the voltage of the batteries become too low, the power indicator will flicker.

Voltage Interface Box Specifications
Input, Output, Probe Connections:
Type 4 mm Banana Jack
Voltage 2500 Vrms, 3500 Vpk CAT II
Current (Max. Continuous) 15 A
Current (Peak) 1000 A for 100 µs
Dimensions (L x W x H) 13.5 cm x 13.5 cm x 5.8 cm (5.3 x 5.3 x 2.3 in)
High Voltage Cable Specifications
Type Retractable Sheath Banana Plug
Length 91.44 cm (3 ft)
Wire Gauge 18 AWG
Insulation PVC
Voltage Rating 1000 Vrms IEC 1010-2-31, Category III
Current 10 A
Operating Temperature +55º C (+131º F) Max.
SKU: 45-0471,45-0472 Categories: , Tags: , , , , Brand:
Weight 1 lbs
Dimensions 8 × 3.25 × 1.5 in

45-0471(Legacy ECM 630 High Throughput Electroporation System with Monitoring), 45-0472(Legacy ECM 830 High Throughput Electroporation System with Monitoring)
