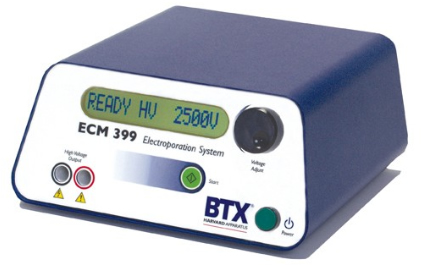

45-0000 ECM 399 Exponential Decay Wave Electroporation System BTX


Compare

The ECM 399 is an economical electroporation system for gram negative bacteria and yeast applications. Ideal for research and academic labs.

$2,995.00

Clear

The ECM 399 is an economical electroporation system for gram negative bacteria and yeast applications. Ideal for research and academic labs.

ECM 399 GENERATOR

The ECM 399 is an exponential decay wave electroporaton generator specifically designed to deliver the field strengths and pulse lengths required for the simple transformation of bacteria and yeast cells. In low voltage mode the ECM 399 has a limited capability for transfecting some mammalian cell lines.

The ECM 399 is ideal for basic transformation in research and academic environments.

The ECM 399 is intended For Research Use Only. Not for use in diagnostic, pre-clinical, or clinical procedures.

FEATURES:

  • Highest transformation efficiencies of basic bacteria and yeast strains
  • Easy to operate
  • Cost effectiv
  • Compact in size and portable
  • Available as complete system with cuvettes and cuvette rack
SPECIFICATIONS FOR THE ECM 399 GENERATOR
Display Type 16-character liquid crystal LCD backlit
Power Source Voltage 100 to 240 VAC, 50 to 60 Hz, CAT I
Power
Fusing 2.5 A, T rating 250 V
Environmental Characteristics
Intended Use Indoor use only
Operating Temperature 10°C to 40°C
Cooling Convection through metal case
Relative Humidity 60%
Pollution Degree Not to be operated in conductive pollutants atmosphere
Altitude 2,000 m (operating)
Mechanical Characteristics
Footprint 9.1″ x 7.7″ x 4.3″ (W x D x H)
Weight 7.0 lb (3.2 kg)
Controls Single rotary knob with push button toggle to set parameters, On/Off power and Start switches
STANDARD CAPABILITIES
Operational Status Internal self test upon start-up
Interface Digital User Interface
Input 110 V / 220 V Universal
Charge Time 5 sec maximum (without delay)
Voltage Range LV Mode: 2 – 500 V / 2 V resolution; HV Mode: 10 – 2,500 V / 10 V resolution
Capacitance LV Mode: 1,050 µF fixed; HV Mode: 36 µF fixed
Resistance LV Mode: 150 ohm fixed, HV Mode: 150 ohm fixed
Maximum Voltage Output 2,500 Volts Peak
Maximum Pulse Length 125 ms at 500 V peak or 5 ms at 2,500 V peak
Safety Generator short circuit proof
SKU: ECM 45-0000 Categories: , Tags: , , , Brand:
Weight 7 lbs
Dimensions 7.7 × 9.1 × 4.3 in
Product

45-0000(ECM 399 Electroporation System, Complete, for Cuvettes)
