12060-2E/ 12060-2E-N/ S-EVAP-RB 8 Position 250ml – Organomation

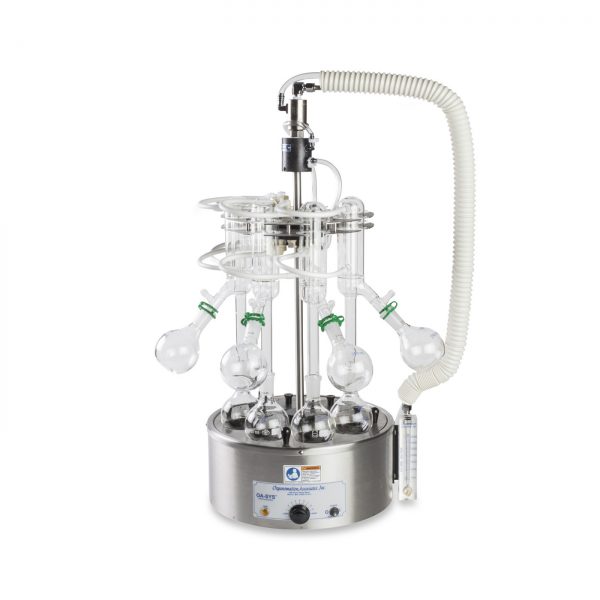

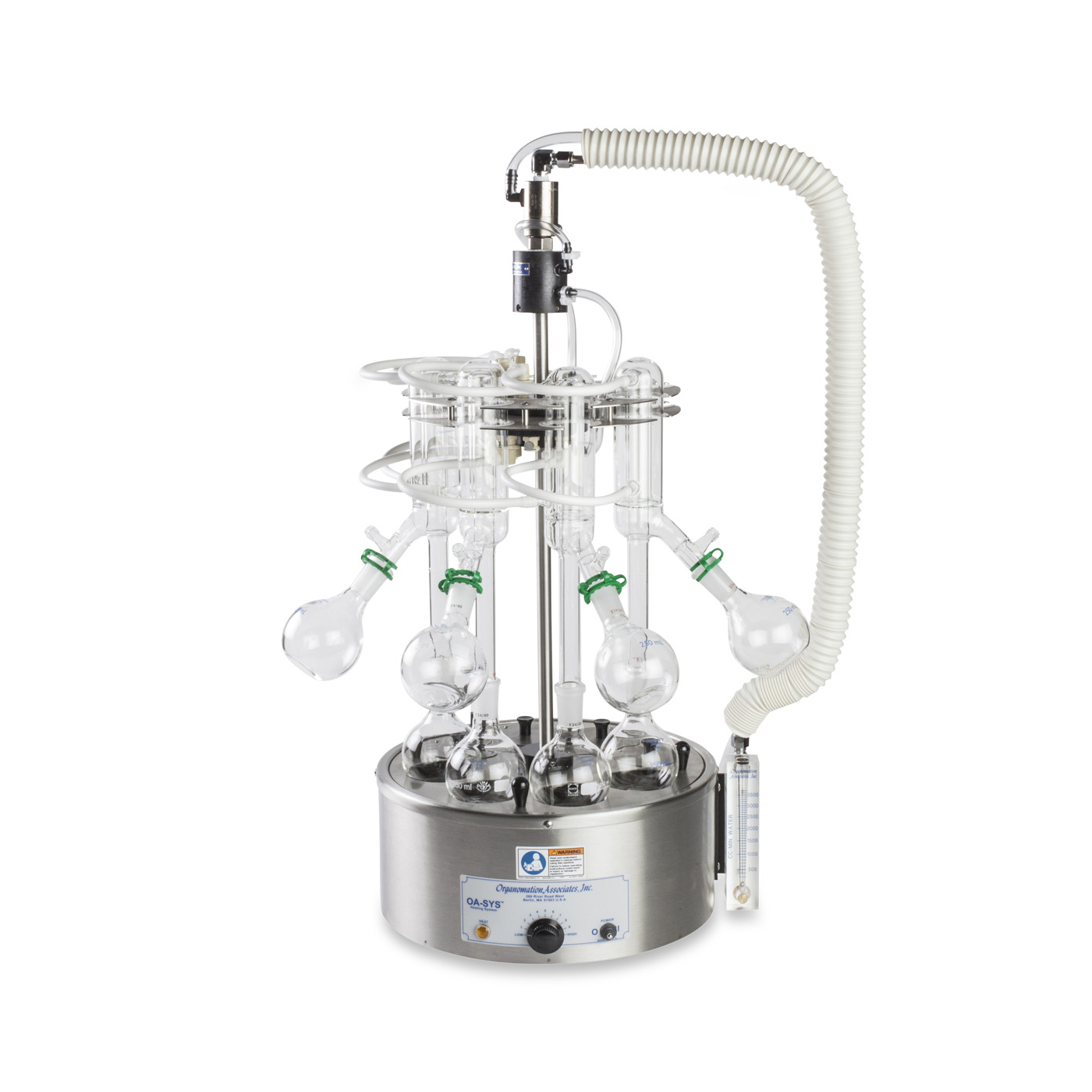

The mechanical thermostat 8 position S-EVAP-RB large scale solvent evaporator (Cat# 12060) can evaporate up to 8 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).


  • Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
  • Conserves valuable bench space: all samples are arranged in a circle
  • Easy sample access: the instrument rotates allowing all samples to be accessed from the front
  • Fewer connections: one water supply line in, one drain line out


  • Mechanical thermostat with temperature control +/- 2°C
  • Manifold for holding solvent recovery condensers
  • Flow meter and rigid supply tube for condenser water supply
  • Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
  • Parallel water supply/drain manifolds with quick disconnect tube fittings
  • Bath temperature range 30°C – 100°C
  • Evaporate solvents with boiling points up to 65°C


  • Positive pressure type Z purged bath (Option Code -Z)
  • 240V wiring and plug (Option Code -2)
  • Nitrogen purge manifold (Option Code -N)
Instrumental Name
Instrument Catalog Number 12060
Application Round Flasks/Shallow Bath
Number of Sample Positions 8
Individual Solvent Collection
Overall Dimension (w x d x h) 24 x 22 x 30 in
61 x 56 x 76 cm
Required Glassware GS2162
Sample Flask Type Round w Flat Bottom, 250 mL
Condenser Type Inverted Hopkins with 24/40 side arm
Collection Flask Type Round w flat bottom, 250 mL
Heating Device Specs
Bath Model Number 9125
Heating Medium Water
Inside Dimensions (Diameter x Depth) 12.0 x 4.5 in
30.5 x 11.4 cm
Outside Dimensions (w x d x h) 18 x 16 x 7 in
46 x 41 x 18 cm
Total Wattage 900 W
Temperature Range 30-100 °C
Temperature Controller Type Mechanical Thermostat
Controller Accuracy +/- 2 °C
Dimensions 22 × 24 × 30 in

12060-2E (S-EVAP-RB 8 position, bath 900W for 250mL round flasks ), 12060-2E-N (S-EVAP-RB 8 position for 250mL round flasks, with nitrogen manifold add-on)
