SMO5HP-2 /SMO10HP-2/SMO14HP-2/SMO28HP-2/SMO38HP-2- LAB High-Performance Mechanical Ovens – SHELLAB


Compare

SHEL LAB High-Performance Ovens are recommended for critical scientific research, analytical, and laboratory use.
Typical applications include aging, curing, drying, baking, pre-heating, conditioning, and life cycle testing. Each oven
is equipped with forced-air circulation and reserve heating power for quick recovery after door openings.

$6,781.00$17,405.00

Clear

High Temperature Performance
SHEL LAB High-Performance Ovens are available in 220-240V, 50/60Hz configurations with fast ramp-up and recovery times.

Heat-Up
– Rapid heat-up times to 306°C or 260°C depending on model. Published heat-up performance is based on a standard cabinet under controlled testing at a 22 ± 3°C ambient temperature, line voltage ±10% of specified voltage.

Recovery
– After a standard door opening, the SMOHP series has rapid recovery times to setpoint. Optimized air flow and heating elements allow your product to return to temperature setpoint quickly

SMOHP Specification Chart SMO5HP-2
SLFHP522-H
SMO10HP-2
SLFHP1022-H
SMO14HP-2
SLFHP1422-H
Interior Volume, Nominal 4.9 cu.ft. (139 liters) 10.6 cu.ft. (301 liters) 14.6 cu.ft. (413 liters)
Exterior Dimensions W x D x H 35.0″ x 30.0″ x 37.6″
889 x 747 x 955 mm
44.1″ x 29.9″ x 56.7″
1121 x 760 x 1440 mm
59.0″ x 28.0″ x 57.0″
1499 x 711 x 1448 mm
Interior Dimensions W x D x H 20.5″ x 20.7″ x 20.0″
520 x 527 x 508 mm
29.8″ x 20.6″ x 30.0″
757 x 524 x 762 mm
44.0″ x 20.8″ x 30.0″
1117 x 528 x 762 mm
Interior Construction 300 series stainless steel 300 series stainless steel 300 series stainless steel
Exterior Construction 20 gauge steel,
powder coated
20 gauge steel,
powder coated
20 gauge steel,
powder coated
Shelves* 2 standard, 4 total 3 standard, 8 total 6 standard, 14 total
Maximum Weight Per Shelf 50 lb / 22.7 kg 75 lb / 34 kg 75 lb / 34 kg
Permitted Total Load 75 lb / 34 kg 225 lb / 102 kg 450 lb / 204 kg

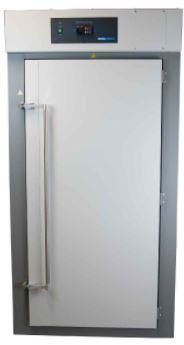

SMOHP Specification Chart SMO28HP-2
SLFHP2822-H

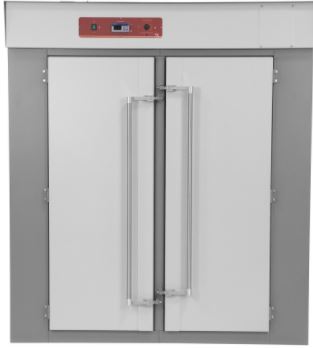

SMO38HP-2
SLFHP3822-H
Interior Volume, Nominal 28 cu.ft. (792 liters) 38 cu.ft. (1083 liters)
Exterior Dimensions W x D x H 42.5″ x 34.1″ x 85.9″
1080 x 866 x 2182 mm
68.0″ x 33.3″ x 79.4″
1728 x 846 x 2017 mm
Interior Dimensions W x D x H 31.7″ x 26.0″ x 60.9″
805 x 660 x 1546 mm
47.8″ x 27.8″ x 54.1″
1214 x 706 x 1372 mm
Interior Construction 300 series stainless steel 300 series stainless steel
Exterior Construction 20 gauge steel,
powder coated
20 gauge steel,
powder coated
Shelves* 6 standard, 12 total 12 standard, 20 total
Maximum Weight Per Shelf 75 lb / 34 kg 75 lb / 34 kg
Permitted Total Load 450 lb / 204 kg 900 lb / 408 kg
SKU: SMO5HP-2 /SMO10HP-2/SMO14HP-2/SMO28HP-2/SMO38HP-2 Categories: , , Tags: , , , , , Brand:
Weight N/A
Dimensions N/A
Product

SMO5HP-2 (HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, 4.9 CU FT, 230V), SMO10HP-2 (HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, 10 CU FT, 230V), SMO14HP-2 (HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, DOUBLE DOOR, 13.8 CU FT, 230V), SMO28HP-2 (HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, 34 CUFT, 230V), SMO38HP-2 (HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, 38 CU FT, 230V)
