Autoclave, Laboratory Equipment

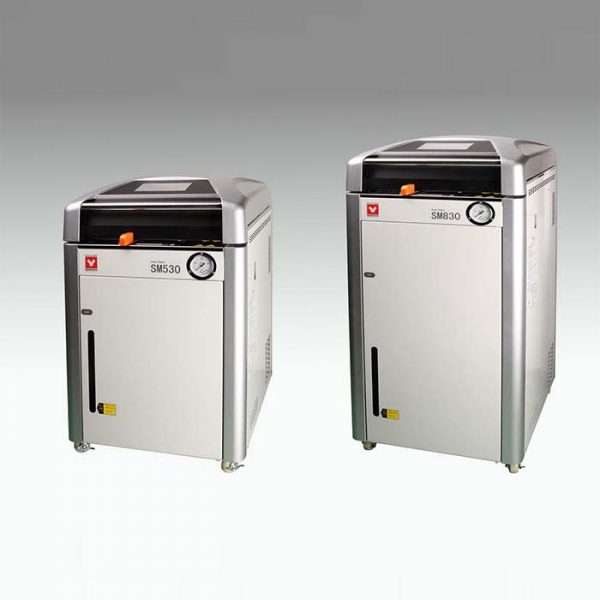

SM520/530/820/830 Steam Sterilizer with Dryer Yamato
Large capacity, high performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
$12,503.00 – $14,069.00
Large capacity, high performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
Operation and functions
- Interactive keypad input (touch panel) allows committing sterilization settings (time & temperature) to memory

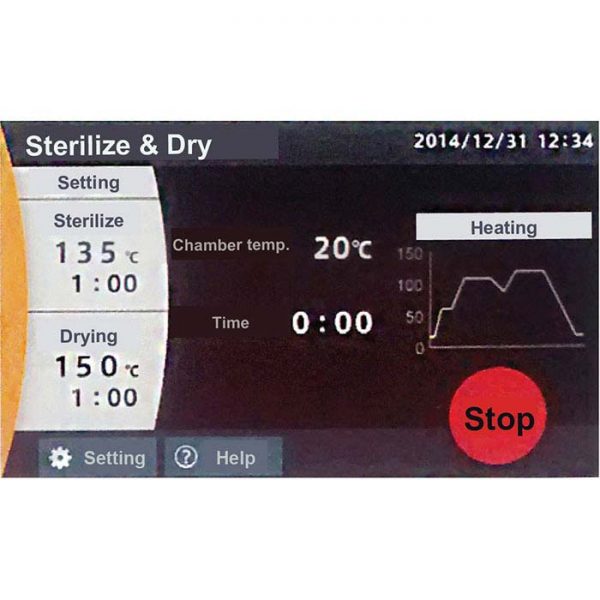

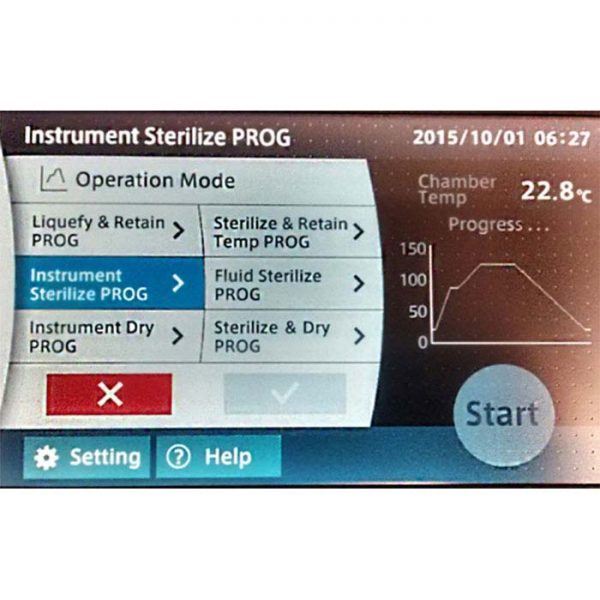

- 7″ interactive touch screen
- Suitable for protein modification at the maximum operating temperature of 135°C
- Easy settings and operation modes for a multitude of sterilization process
- Increased safety and function list including forced cooling and memory functions
- Equipped with multiple safety locking mechanism for the lid
- Comes with large capacity (11L) heat resistant stainless steel container
- Alarm buzzer sounds when high or low pressure error occurs
| Model | SM520 | SM530 | SM820 | SM830 | ||
| System | Automatic high pressure steam sterilization | |||||
| Operating Temperature | Sterilize | 105 to 135°C | ||||
| Liquefy | 60 to 110°C | |||||
| Retain | 45 to 60°C | |||||
| Preheat | 45 to 80°C | |||||
| Dry | 135 to 150°C | |||||
| Operating Ambient Temp. | 5 to 35°C | |||||
| Maximum Pressure Capacity | 0.255MPa | |||||
| Heating | Sterilize Pipe | 1000W ×2 | ||||
| Drying Pipe | 110V/295W×2, 110V/455W×2 | 110V/295W×2, 110V/455W×2 | 110V/275W ×2, 110V/625W ×2 | 110V/275W ×2, 110V/625W ×2 | ||
| Temp. Controller | PlD controlled by microprocessor | |||||
| Temp. Setting / Display | Touch panel | |||||
| Timer / Timer Resolution | Range: 0 or 1min to 99h59min / 1 min. | |||||
| Safety Device | Sterilize sensor error, sterilize SSR short circuit, dry sensor error, dry SSR short circuit, sterilize heater disconnection, dry heater disconnection, water level detection (liquid expansion method), independent chamber overheat protection, cover unlock error, chamber over pressure protection, under pressure protection, warning about setting error in cooling water container, memory error, pressure switch (0.25MPa), pressure safety valve (0.255MPa) | |||||
| Internal Dimensions | Ø370 x D470 mm | Ø370 x D470 mm | Ø370 x D750 mm | Ø370 x D750 mm | ||
| External Dimensions WxDxH | 520 x 660 x 881 mm | 520 x 660 x 881 mm | 520 x 660 x 116 mm | 520 x 660 x 1161 mm | ||
| Internal Capacity | 50L | 50L | 80L | 80L | ||
| Power Source (50/60Hz) | Voltage | AC100-120V (no plug, round terminal) | AC200-240V (no plug, round terminal) | AC100-120V (no plug, round terminal) | AC200-240V (no plug, round terminal) | |
| Sterilize current | 25-21A | 12.5-10.5A | 25-21A | 12.5-10.5A | ||
| Dry current | 13.5A | 8.0A | 15.0A | 9.0A | ||
| Weight | ~113kg | ~113kg | ~137kg | ~137kg | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SM520 (Large Capacity Laboratory Use Sterilizer With Dryer 50L 100-120V 20.5~24.5A 50/60hz), SM530 (Large Capacity Laboratory Use Sterilizer With Dryer 50L 200-240V 10.5~12.5A 50/60hz), SM820 (Large Capacity Laboratory Use Sterilizer With Dryer 80L 100-120V 20.5~24.5A 50/60hz), SM830 (Large Capacity Laboratory Use Sterilizer With Dryer 80L 200-240V 10.5~12.5A 50/60hz) |
