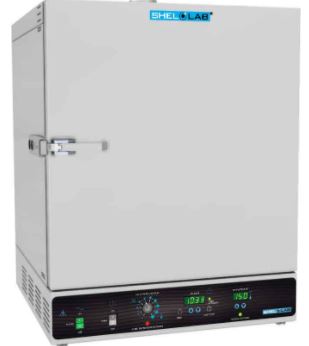

SGO1/SGO3/SGO5- SHEL LAB Gravity Convection Laboratory Ovens – SHELLAB
SHEL LAB Gravity Convention Laboratory Ovens are recommended for critical scientific and analytical use in laboratory and pilot plant product research.
$2,751.00 – $4,093.00
Ideal for Industrial, Analytical, and General Laboratory Applications
SHEL LAB Gravity Convention Laboratory Ovens are recommended for critical scientific and analytical use in laboratory and pilot plant product research. Typical applications include aging, curing, drying, baking, pre-heating, conditioning and life cycle testing.
Choose from three cabinet sizes, each with gravity convection and reserve heating power for quick recovery after door openings
| SGO Oven Specification Chart | SGO1 |
SGO3 | SGO5 | |
| Interior Volume, Nominal | 1.4 cu.ft (39.4 L) | 3.0 cu.ft. (85 L) | 4.9 cu.ft. (138 L) | |
| Interior Dimensions W x D x H | 12.1″ x 13.7″ x 14.5″ 307 mm x 349 mm x 368 mm |
16.5″ x 19.5″ x 16.2″ 419 mm x 495 mm x 412 mm |
21″ x 19.4″ x 20.7″ 533 mm x 494 mm x 527 mm |
|
| Exterior Dimensions W x D x H | 22.7″ x 23.5″ x 31.5″ 577 mm x 596 mm x 800 mm |
26.9″ x 28.6″ x 34″ 684 mm x 727 mm x 840 mm |
31.4″ x 28.1″ x 38.1″ 798 mm x 714 mm x 986 mm |
|
| Interior Construction | 430 series stainless steel | 430 series stainless steel | 430 series stainless steel | |
| Exterior Construction | 20 gauge steel, powder coated |
20 gauge steel, powder coated |
20 gauge steel, powder coated |
|
| Shelves (See Accessories)* | 2 (max of 6) | 3 (max of 7) | 3 (max of 9) | |
| Maximum Weight Per Shelf* | 50 lb (22.6 kg) | 50 lb (22.6 kg) | 50 lb (22.6 kg) | |
| Permitted Total Load | 100 lb (45.3 kg) | 200 lb (91 kg) | 200 lb (91 kg) | |
| Order Part ID*, Voltage Specific | SGO1 | SGO3 | SGO5 | ||||
| SLG122 | SLG122-EA | SLG322 | SLG322-EA | SLG522 | SLG522-EA | ||
| Electrical, 50/60Hz, AC, 1Ø | |||||||
| Voltage | 110V-120V | 220V-240V | 110V-120V | 220V-240V | 110V-120V | 220V-240V | |
| Full Load Amps | 12 | 8 | 14 | 10 | 14 | 10 | |
| Nominal Power (watts @150°C) | 864 | 1152 | 1008 | 1440 | 1008 | 1440 | |
| NEMA Plug Supplied | 5-15P | 6-15P** | 5-15P | 6-15P** | 5-15P | 6-15P** | |
| Energy Consumption (kWh/day) | |||||||
| At 80°C | 11.7 | 15.6 | 13.6 | 19.5 | 13.6 | 19.5 | |
| At 150°C | 20.1 | 23.8 | 23.4 | 33.5 | 23.4 | 33.5 | |
| At 306°C | 31.8 | 42.5 | 37.1 | 53.1 | 37.1 | 53.1 | |
| Temperature Range 20°C above ambient to 306°C | |||||||
| Heat-Up to Ambient — Minutes to 80°C | 5 | 5 | 7 | 7 | 18 | 18 | |
| Heat-Up to Ambient — Minutes to 150°C | 7 | 7 | 23 | 23 | 30 | 30 | |
| Heat-Up to Ambient — Minutes to 306°C | 68 | 68 | 95 | 95 | 120 | 120 | |
| Recovery after Door Opening (30 sec.) — Minutes to 80°C | 2.5 | 2.5 | 3 | 3 | 4 | 4 | |
| Recovery after Door Opening (30 sec.) — Minutes to 150°C | 3.5 | 3.5 | 4 | 4 | 8 | 8 | |
| Recovery after Door Opening (30 sec.) — Minutes to 306°C | 18 | 18 | 24 | 23 | 35 | 36 | |
| Recovery after Door Opening (60 sec.) — Minutes to 80°C | 3 | 3 | 5 | 5 | 5 | 5 | |
| Recovery after Door Opening (60 sec.) — Minutes to 150°C | 4 | 4 | 5.5 | 5.5 | 15 | 15 | |
| Recovery after Door Opening (60 sec.) — Minutes to 306°C | 22 | 22 | 37 | 37 | 68 | 68 | |
| Temperature Uniformity | |||||||
| At 80°C | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| At 150°C | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| At 306°C | 4.0 | 4.0 | 4.0 | 4.0 | 4.5 | 4.5 | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SLG122 (OVEN, GRAVITY, 1.5 CU FT, 115V), SLG122-EA (OVEN, GRAVITY, 1.5 CU FT, 230V), SLG322 (OVEN, GRAVITY, 3.4 CU FT, 115V), SLG322-EA (OVEN, GRAVITY, 3.0 CU FT, 230V), SLG522 (OVEN, GRAVITY, 5.4 CU FT, 115V), SLG522-EA (OVEN, GRAVITY, 5.4 CU FT, 230V) |
