LM100/110/200/210 Flask Mixer Yamato

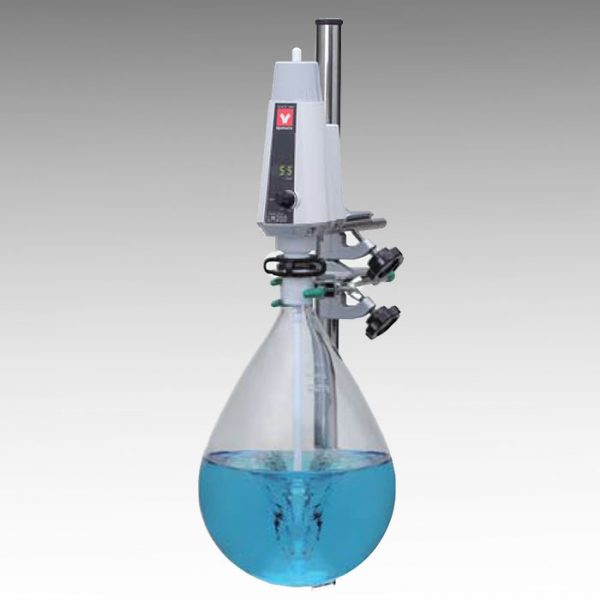

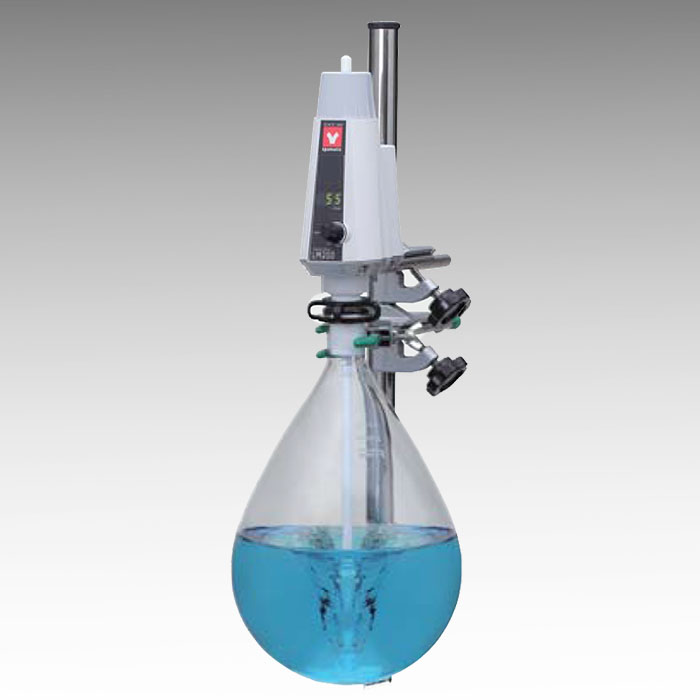

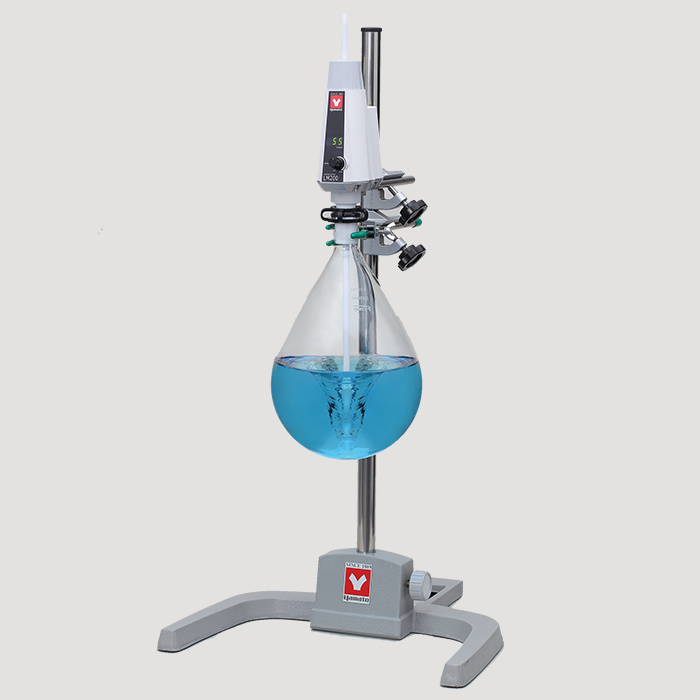

LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state
$579.00 – $667.00
LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity.

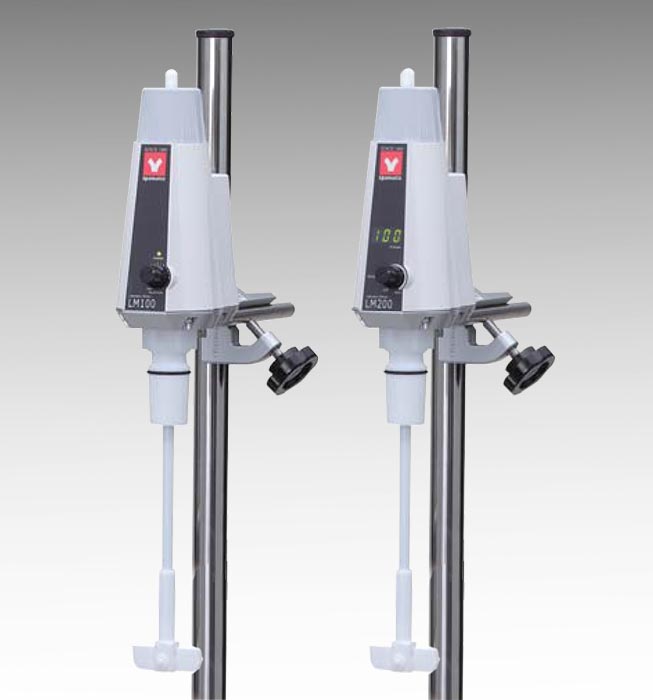

LM100/110 is designed with manual type rotation speed while LM200/210 is equipped with digital indicator.
Features
- Wide range rotation speed of 50-1000 rpm
- Maintenance free and superior DC brushless motor
- Belt drive transmission minimizes noise and vibration
- Capable of vacuuming up to 399.9Pa without impairing rotation efficiency

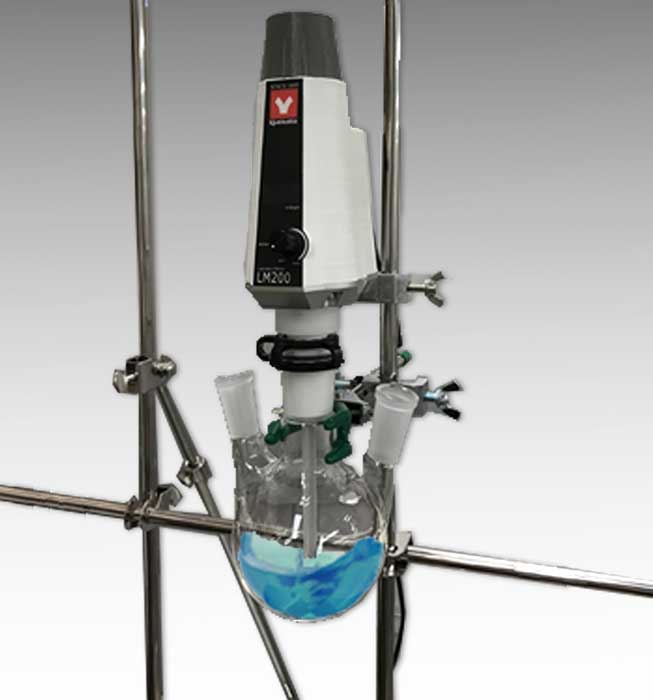

- Directly attachable to a three-neck flask 24/40, 29/42 optional
- Variety of stirring shafts and blades available to handle small to large volume samples
- Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
- At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
- Equipped with 24/40 rotary joint, 29/42 optional
- Capable of AC100-240V by changing power cord
| Model | LM100 | LM110 | LM200 | LM210 | |
| Operating Temp. Range | 5°C~35°C | 5°C~35°C | 5°C~35°C | 5°C~35°C | |
| Speed Range *¹ | 50~1000 rpm | 50~1000 rpm | 50~1000 rpm | 50~1000 rpm | |
| Max. Torque | 0.1N•m | 0.1N•m | 0.1N•m | 0.1N•m | |
| Max. Ultimate Vacuum | < 399.9Pa | < 399.9Pa | < 399.9Pa | < 399.9Pa | |
| Exterior | PBT /ADC12 (Surface: branded / painted) | PBT /ADC12 (Surface: branded / painted) | PBT /ADC12 (Surface: branded / painted) | PBT /ADC12 (Surface: branded / painted) | |
| Motor | DC brushless motor 30W | DC brushless motor 30W | DC brushless motor 30W | DC brushless motor 30W | |
| Speed Control | Feedback control | Feedback control | Feedback control | Feedback control | |
| Display | — | — | 3 digit×10 rpm Digital | 3 digit×10 rpm Digital | |
| Operation Lamp | Green LED | Green LED | Rotation speed display | Rotation speed display | |
| Adaptable Flask Size | 50~5000 ml | 50~5000 ml | 50~5000 ml | 50~5000 ml | |
| Joint Size | TS 24/40 | TS 24/40 | TS 24/40 | TS 24/40 | |
| Chuck | ø8mm (φ7.9~7.95) | ø8mm (φ7.9~7.95) | ø8mm (φ7.9~7.95) | ø8mm (φ7.9~7.95) | |
| Sealing Material | PTFE (rotary joint) / FKM (oil seal, o-ring) | PTFE (rotary joint) / FKM (oil seal, o-ring) | PTFE (rotary joint) / FKM (oil seal, o-ring) | PTFE (rotary joint) / FKM (oil seal, o-ring) | |
| Safety Device | Overload protection function*², coupling cover (hair entanglement prevention structure), slow start function | ||||
| External Dimension | W69 × D108 × H222 mm | W69 × D108 × H222 mm | W69 × D108 × H222 mm | W69 × D108 × H222 mm | |
| Power Source 50/60Hz | Single phase AC100V~AC120V 50/60Hz 1A | Single phase AC200V~AC220V 50/60Hz 1A | Single phase AC100V~AC120V 50/60Hz 1A | Single phase AC200V~AC220V 50/60Hz 1A | |
| Power Cord | A type 3P (AC115V 50/60Hz) | O type 3P (AC220V 50/60Hz) | A type 3P (AC115V 50/60Hz) | O type 3P (AC220V 50/60Hz) | |
| Weight | 700g (main body only) | 700g (main body only) | 700g (main body only) | 700g (main body only) | Included Accessories | Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, coupling cover, handle (arbor), flask clip |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | LM-100 (Flask Mixer With Manual Type Rotation Speed 115V), LM-110 (Flask Mixer With Manual Type Rotation Speed 220V), LM-200 (Flask Mixer Equipped With Digital Indicator 115V), LM-210 (Flask Mixer Equipped With Digital Indicator 220V) |
