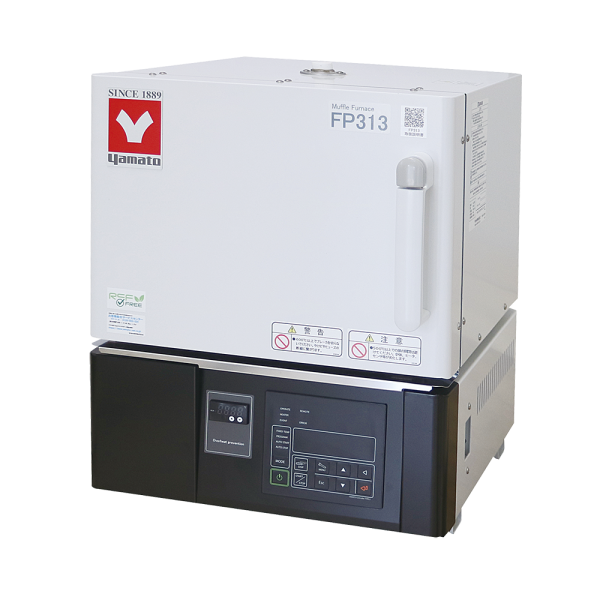

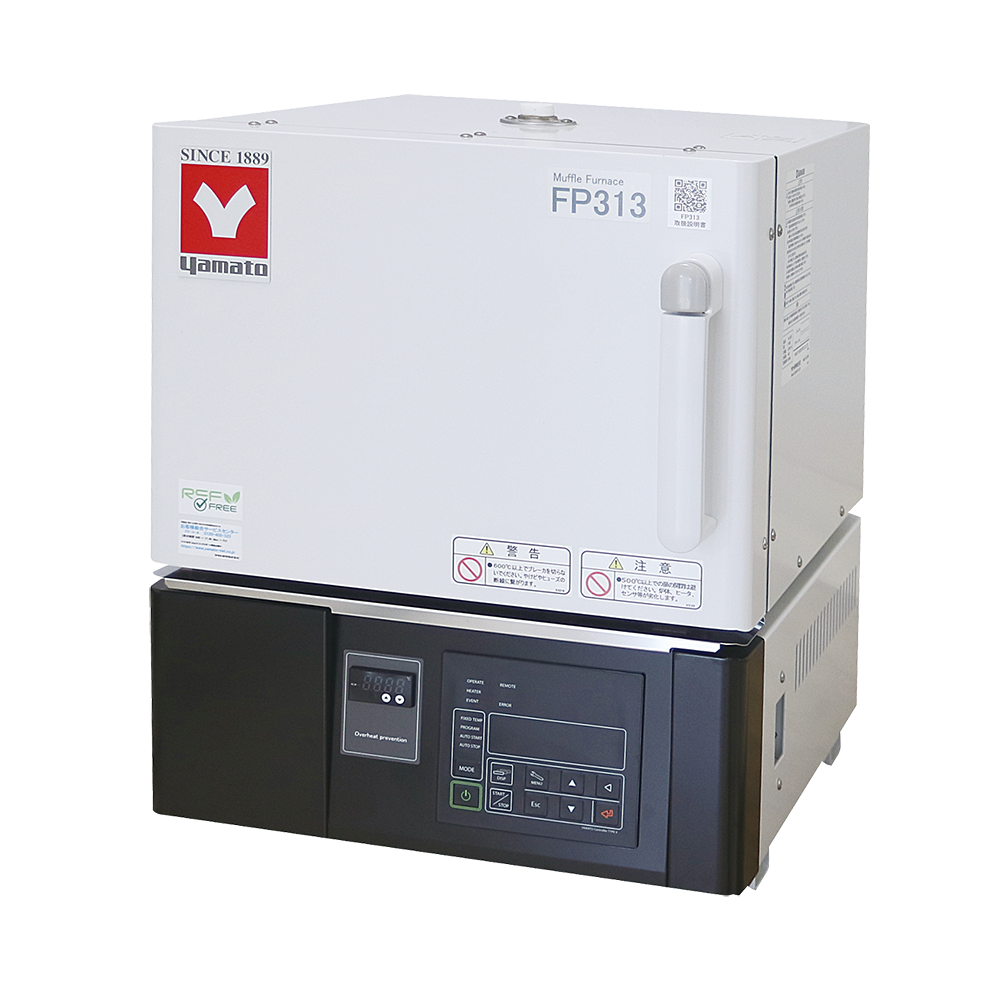

FP-313 – High Performance Muffle Furnace 7.5L 220V- Yamato


Compare

$6,438.00

RCF-free (alumina fiber) that complies with RCF regulations is used for the furnace chamber.

Features of High Performance Muffle Furnace (FP313)

  • RCF-free, safe and secure
  • Since the heater does not appear, it is ideal for microanalysis and contamination prevention.
  • Equipped with program operation
  • Enhanced with safety functions
  • Uses R thermocouple
  • Equipped with a variety of options
Specifications
Item Code 214147
Model FP313
Operating temp. range 100~1,150℃
Temp. control accuracy ±1.0℃(at 1150℃)
Temp. fluctuation 2.0℃(at 1150℃)
Temp. distribution ±4.0℃(at 1150℃)
Temp. gradient 14℃(at 1150℃)
Max. temp. reaching time Approx. 90 min.
Exterior material Chrome-free electro-galvanized steel plate, Chemical proof painting
Interier material Alumina fiber
Sensor R-thermocouple
Heater Iron-chrome wire (Pyromax) 2.4kW
Exhaust port ø20mm (top)
Cooling fan 19/16W(50/60Hz)
Temp. controller PID control by microprocessor
Temp. and timer setting Digital setting by ▲/▼ keys
Temp. display Setting temperature: Orange 5-digit LED digital display (resolution: 1°C), Temperature display: Green 4-digit LED digital display (resolution: 1°C)
Timer Time : 1 minute and 99 hours 59 minutes / 1 min 24 hour setting
Operation function Fixed temperature, Quick auto stop, Auto start, Auto stop, Program (Maximum 99 steps, 99 patterns, Repeat operation)
Additional function Power on and Operation Time Integrating Function(up to 65,535 hours); calendar timer(24hours) Calibration Offset; Power Consumption, Total CO2 Emission, and Heater operating Output; Power Recovery Mode; Save and Access of Operater’s Setting Information;、
Heater circuit control Triac with zero cross control
Safety device Self-diagnosis Functions (Temp. Sensor Failure Detection, TRIAC Short Circuit, Heater Line Disconnection, Main Relay Failure Detection, Automatic Overheat Prevention) Key Lock Function, Independent Overheat Prevention Device, ELB
Accessories Exhaust port cap, fuse, furnace floor plate
Internal dimensions(W×D×H mm) 200×250×150mm
External dimensions(W×D×H mm) 446×504×565mm
Remarks(dimensions) 7.5L
Power Source Single phase AC100V 11.5A
Plug is not attached, Electric code length is 2m
Weight 29kg
Power Source Single phase AC200V 12.5A
Plug is not attached, Electric code length is 2m
Weight 43kg
SKU: FP313 Category: Tag: Brand:
Weight 94.8 lbs
Dimensions 19.84 × 17.56 × 22.24 in
