E5001-SD/E5001SDB/E5001SDBE, SmartDoc™ 2.0 Gel Visualization and Smart Phone Imaging System Accuris
ntroducing the SmartDoc 2.0. This complete system has been developed for safely viewing nucleic acids in agarose gels and also for capturing quality digital images with a smart phone camera. Blue light is used instead of UV, which is safer for lab personnel and will not damage DNA samples.
$338.00 – $619.00
Introducing the SmartDoc 2.0. This complete system has been developed for safely viewing nucleic acids in agarose gels and also for capturing quality digital images with a smart phone camera. Blue light is used instead of UV, which is safer for lab personnel and will not damage DNA samples.

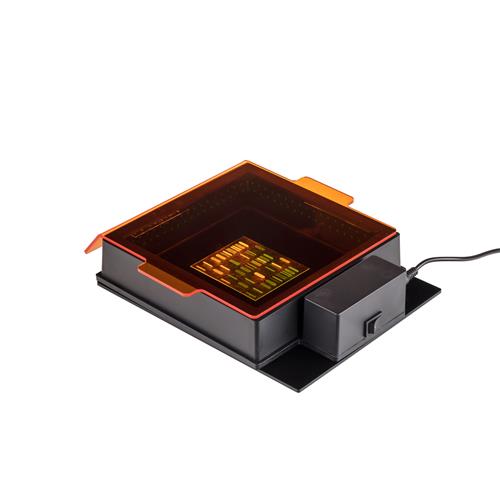

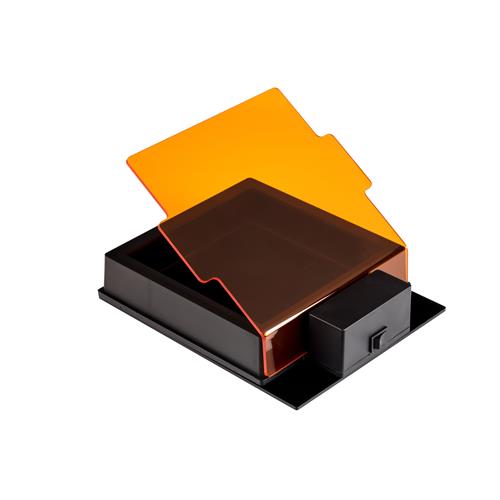

The illumination base emits an intense blue light with a peak output of 460nm for optimum excitation of nucleic acids stained with safe green dyes (SYBR® Green, SmartGlow™, GelStar™, GelGreen™, etc). The orange cover fits on top of the illumination base and acts as a filter to absorb blue light, allowing visualization of the fluorescing samples. The cover can also be set at an angle for gel access and cutting out DNA bands for further study.

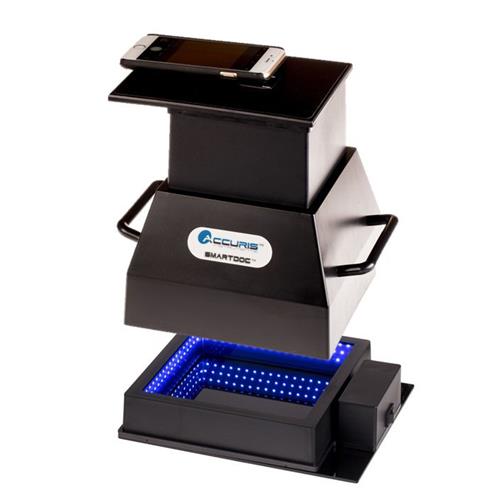

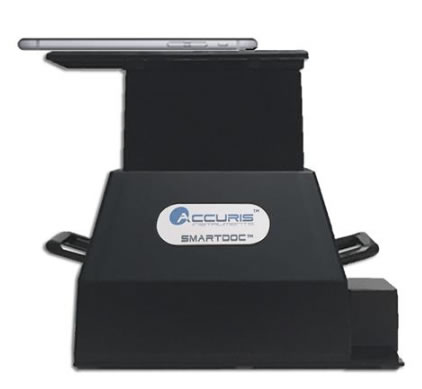

The SmartDoc™ imaging enclosure includes an orange photo filter for photography of the gels with a smartphone. An extending adapter can be inserted for full dimension imaging of gels up to 15 x 15 cm or removed for close up pictures. The enclosure can also be used directly on any other existing UV or blue light transilluminator. Additional filters are available for imaging gels on a UV transilluminator.
- Ideal for common safe stains (SmartGlow™, SYBR Green, GelGreen™, etc.)
- Visible blue light will not damage DNA
- Quality gel imaging with any smart phone
- Gel access for DNA band cutting
- Imaging enclosure can also be used on existing transilluniators
| Specifications | ||
| Maximum Gel Size | 15 x 15cm | |
| Excitation Source | 230 high intensity blue LEDs and blue filters | |
| Orange photo filter | Orange PMMA, 12mm aperture | |
| Orange viewing cover | Orange PMMA, 18 x 18cm | |
| Dimensions (WxDxH) | 23 x 19 x 22cm | |
| Weight | 0.9 kg | |
| Phone compatibility | iPhone, Samsung, LG, HTC smartphones and tablets with camera | |
| Electrical | 12VDC power supply included | |
| Item No. | Description | ||
| E5001-SD | SmartDoc 2.0 Imaging Enclosure, with orange photo filter, for use on existing transilluminator | ||
| E5001SDB | SmartDoc 2.0 System, with Blue Light Illumination Base, Gel Prep/Cutting Platform, Orange Filter Cover, Imaging Enclosure and Orange Photo Filter, US Plug | ||
| E5001SDBE | SmartDoc 2.0 System, with Blue Light Illumination Base, Gel Prep/Cutting Platform, Orange Filter Cover, Imaging Enclosure and Orange Photo Filter, EU Plug | ||
| E5000-MAT | SmartDoc UV Blocking Mat | ||
| E5001-535 | SmartDoc band pass filter, 535nm, for imaging green stains on UV transilluminator | ||
| E5001-590 | SmartDoc band pass filter, 590nm, for imaging EtBR on UV transilluminator | ||
| E5001-ORANGE | SmartDoc Orange Photo filter, imaging Green Stains on Blue Light Illuminators | ||
| E5001-OC | Orange viewing Cover | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | E5001-SD, E5001SDB, E5001SDBE, E5000-MAT, E5001-535, E5001-590, E5001-ORANGE, E5001-OC |
