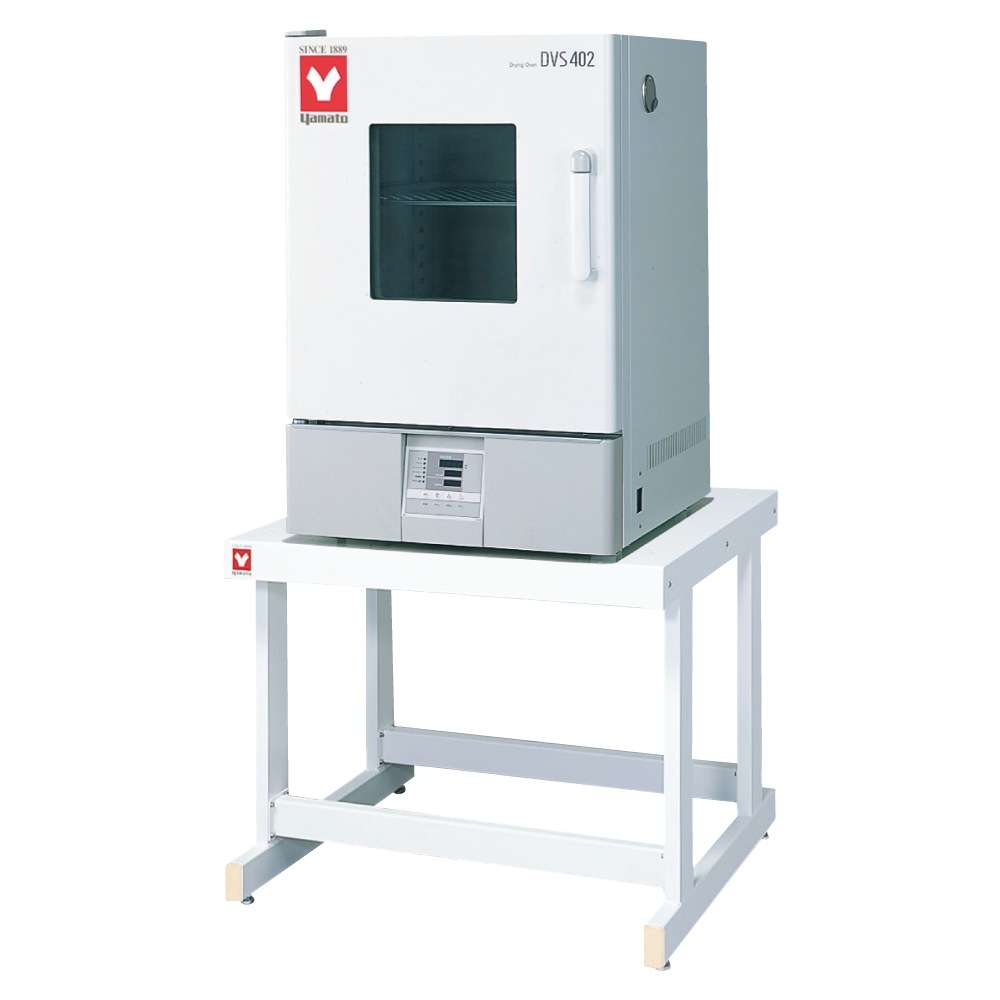

DVS-402C/DVS-412C – Natural Convection Oven Programmable 99L- Yamato
$2,092.00
Highly practical standard ovens with maximum temperature up to 300°C.
Features of Natural Convection Oven (Programmable) (DVS402)
Features
Programmable natural convection, constant temperature oven with quickly performed program settings
Operation and functions
Excellent temperature accuracy
Operation and functions
Easy to use and maintain
Operation and functions
Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
Operation and functions
Simultaneously display of set constant and measured temperature
Operation and functions
Quick Auto stop, Auto Start / Stop operation
Operation and functions
Increased safety and self-diagnostic function
Operation and functions
With calibration off-set function
Safety features
Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, Internal communication error, temperature input circuit abnormality, Automatic overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection
| Specifications | ||
| Item Code | 212862 | |
| Model | DVS402 | |

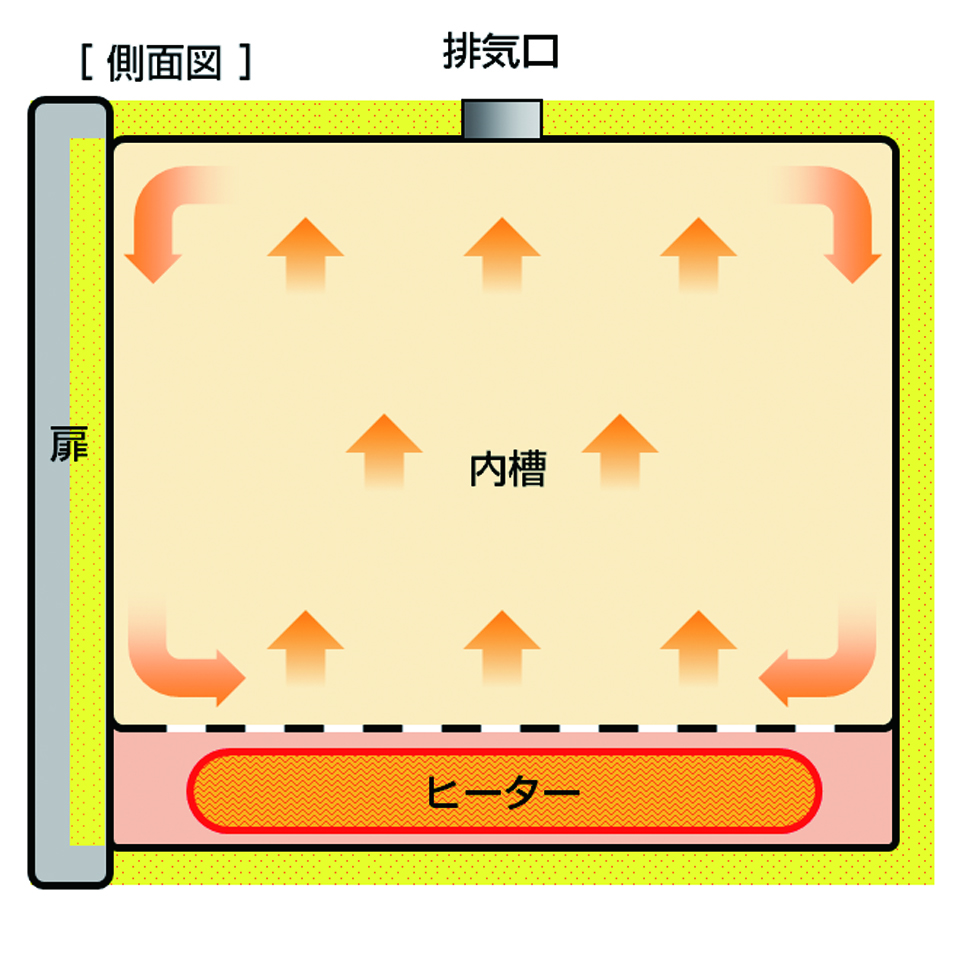

| Method | Natural gravity convection | |
| Operating temp. range | Room temp.＋5～260℃ | |
| Temp. control accuracy | ±1℃（at 260℃） | |
| Temp. distribution accuracy | ±5℃（at 260℃） | |

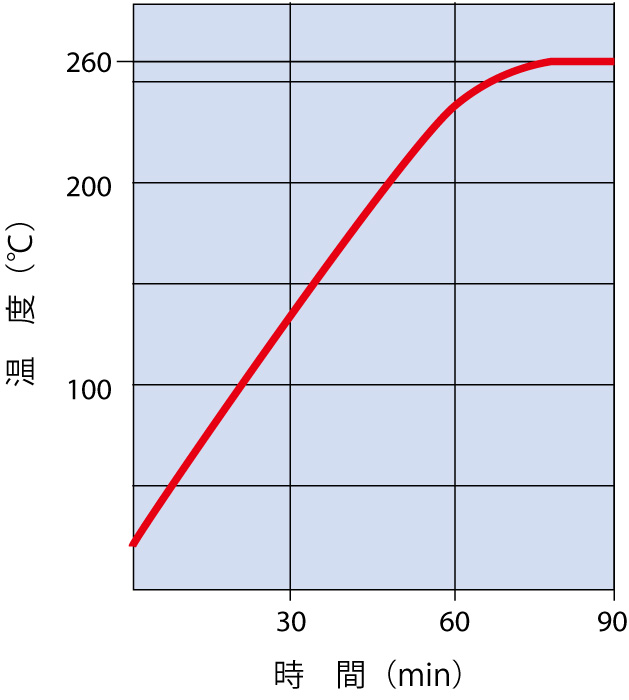

| Max. temp. reaching time | Approx. 90 min | |
| Interior material | Stainless steel | |
| Exterior material | Cold rolled steel plate with melamine resin baking finish | |
| Heat insulating material | Glass wool | |
| Heater | 1.2kW | |
| Observation window | 250×280 mm Chemically strengthened glass×3 | |

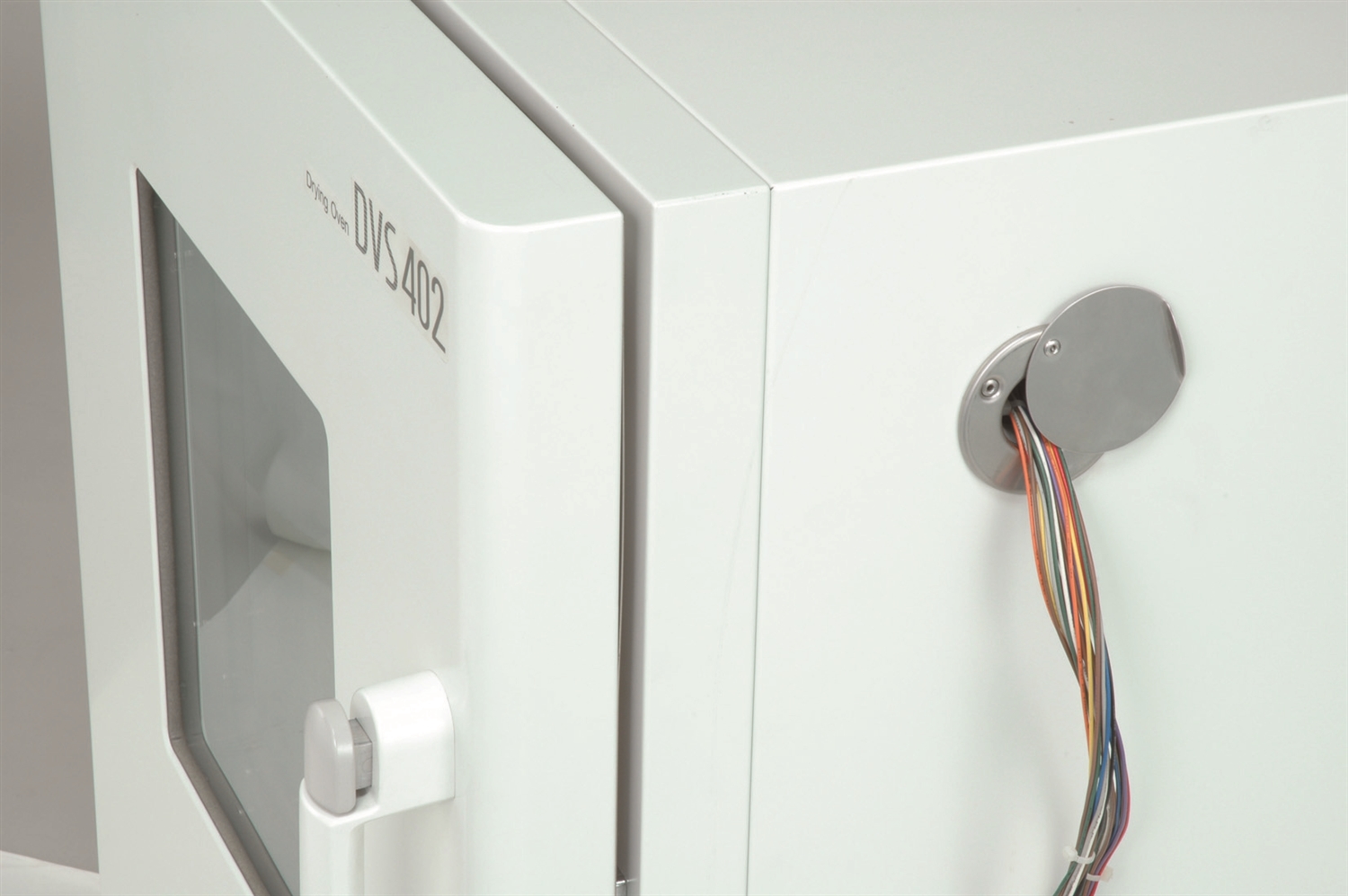

| Cable hole | 30 mm l.D.×1 pcs.(right side) | |
| Exhaust port | 30 mm l.D.×2 pcs.(on top) | |
| Temp. controller | 3 patterns program controller, PID control by microprocessor | |
| Temp. setting method | Operation menu key and digital setting by UP/DOWN key | |
| Temp. display method | Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED | |
| Timer | min. to 99 hrs. 59 min. and 100 hrs. to 999 hrs. 50 min. | |
| Operation function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop | |
| Program mode | Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) | |
| Additional function | Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function | |
| Heater circuit control | SSR control | |
| Sensor | K-thermocouple | |
| Safety device | Self diagnosis functions(Temp. sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function | |
| Safety device | Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal | Shelf plate load | Approx. 15kg / pcs |
| Shelf support step number/pitch | 12 steps / 35mm | |
| Shelf support step number / pitch | 9 steps / 30mm | |
| Shelf plate / Shelf bracket | Stainless steel, 2 pcs. / 4 pcs. | |
| Internal dimensions（W×D×H mm） | 450×490×450mm | |
| External dimensions（W×D×H mm） | 560×601×820mm | |
| Remarks(dimensions) | 99L | |
| Power Source | AC220V 6A Single-phase |
|
| Weight | 48kg | |
| Weight | 105.82 lbs |
|---|---|
| Dimensions | 23.66 × 22.05 × 32.28 in |
| Product | DVS-402C (Natural Convection Oven Programmable 99l 115V), DVS-412C (Natural Convection Oven Programmable 99l 220V) |
