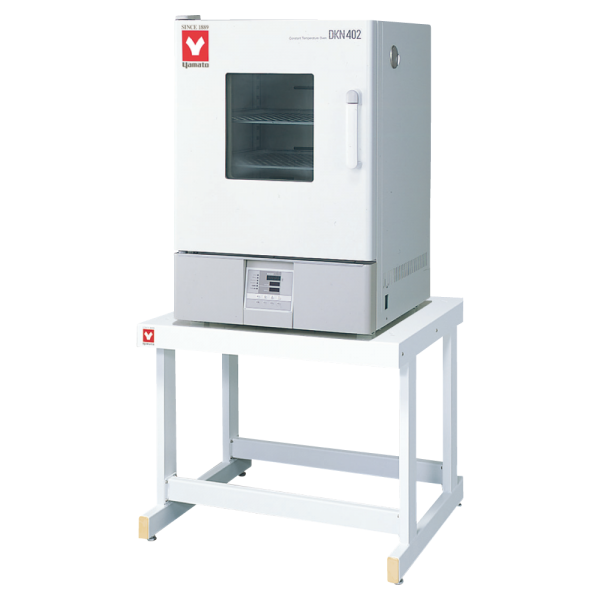

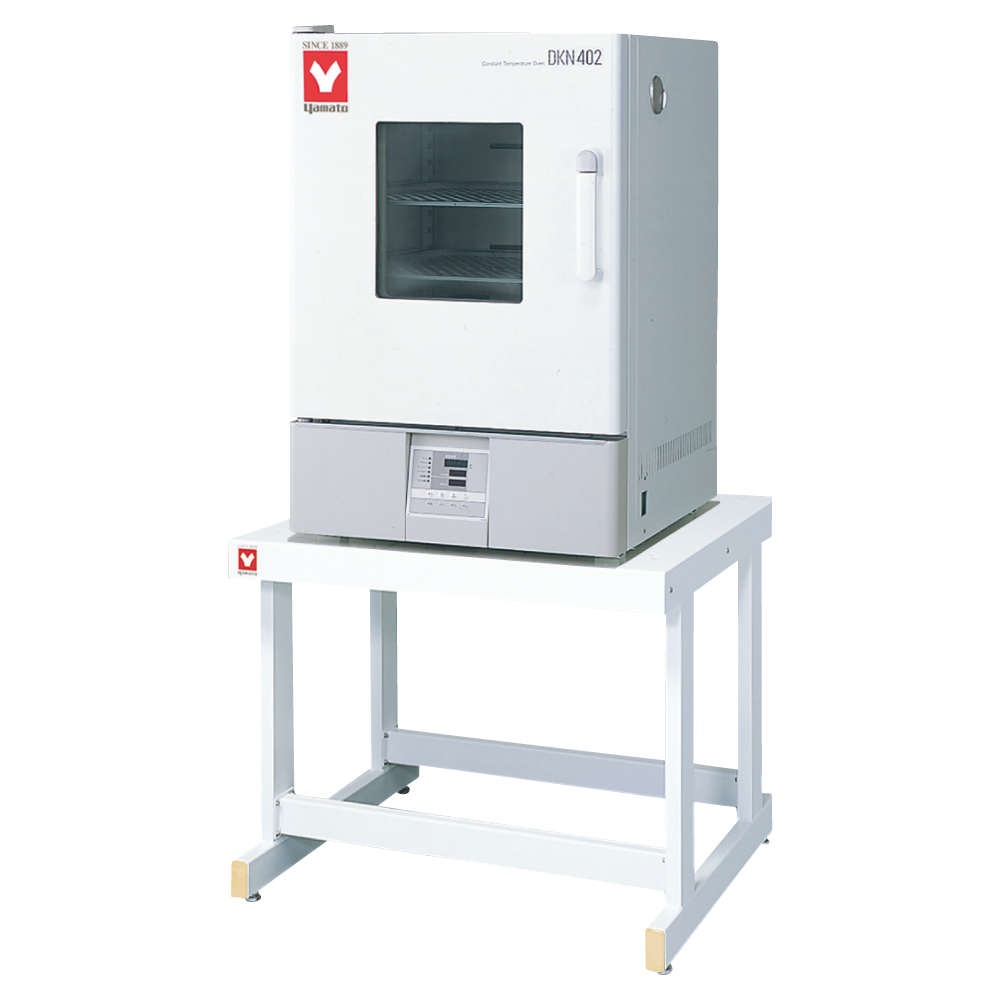

DKN-402C/DKN-412C – Forced Convection Oven Programmable 90L- Yamato


Compare

$2,596.00

Clear

Highly practical standard ovens with maximum temperature up to 300°C.

Features of Forced Convection Oven (DKN402)

Standard forced air convection ovens

Standard forced air convection ovens are programmable and come with extended functions and safety features.

Feature

Best seller based on excellent performance & affordability

Feature

Superior temperature accuracy

Feature

DKN302/402/602/612 come with observation windows

Feature

Programmable PID controller for easy program settings 30-step, 3-pattern program controller with repeat functions

Feature

Fixed setting, programmed, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities

Feature

Increased safety and Self-diagnostic function

Feature

Over-heating prevention and calibration off-set are possible with auxiliary functions

Feature

Easy to use and maintain

Feature

Built in exhaust ports

Safety features

Self diagnosis functions (Temperature sensor abnormal, Heater disconnection, SSR-short) Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function

Specifications
Item Code 212871
Model DKN402

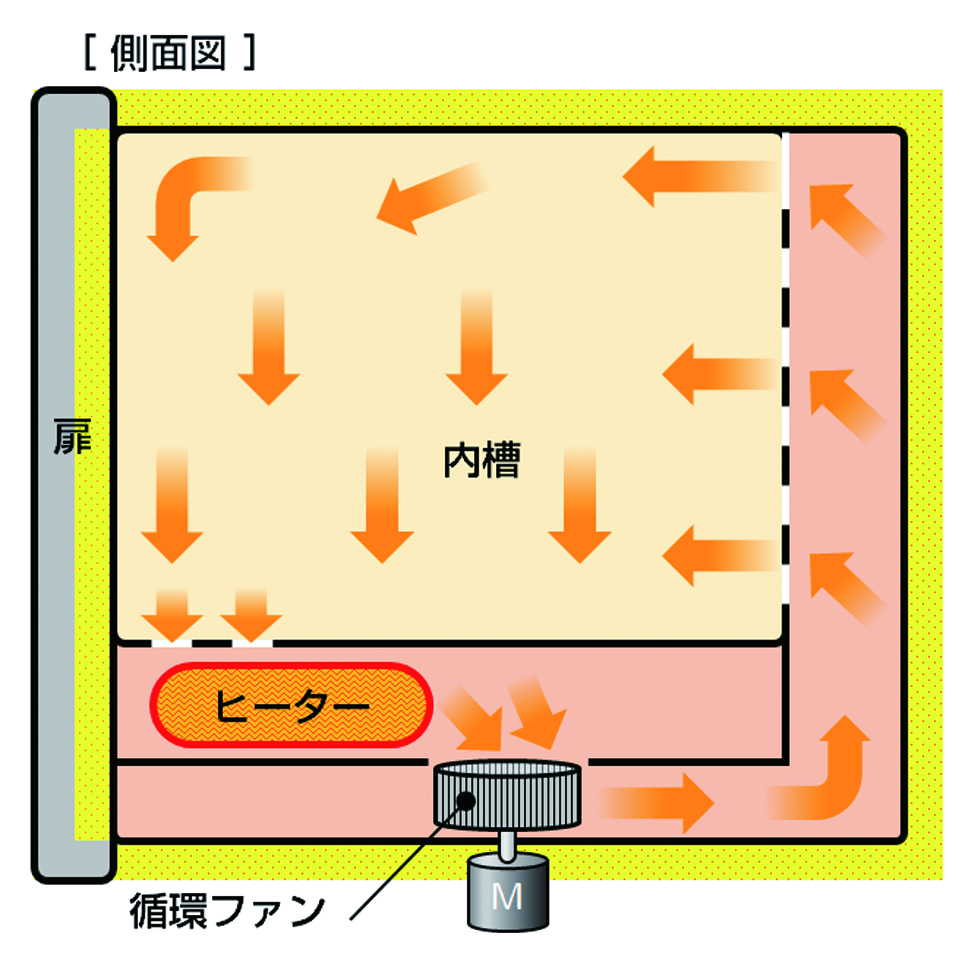

Circulation method Forced air circulation
Operating temp. range Room temp. +10°C to 250°C
Temp. adjustment accuracy ±1℃(at 210℃)
Temp. distribution accuracy ±2.5℃(at 210℃)
Max. temp. reaching time Approx. 90 min
Interior/Exterior material Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat insulating material Glass wool
Heater 1.2kW
Fan Type / Fan Motor Scirocco fan, Condenser type motor

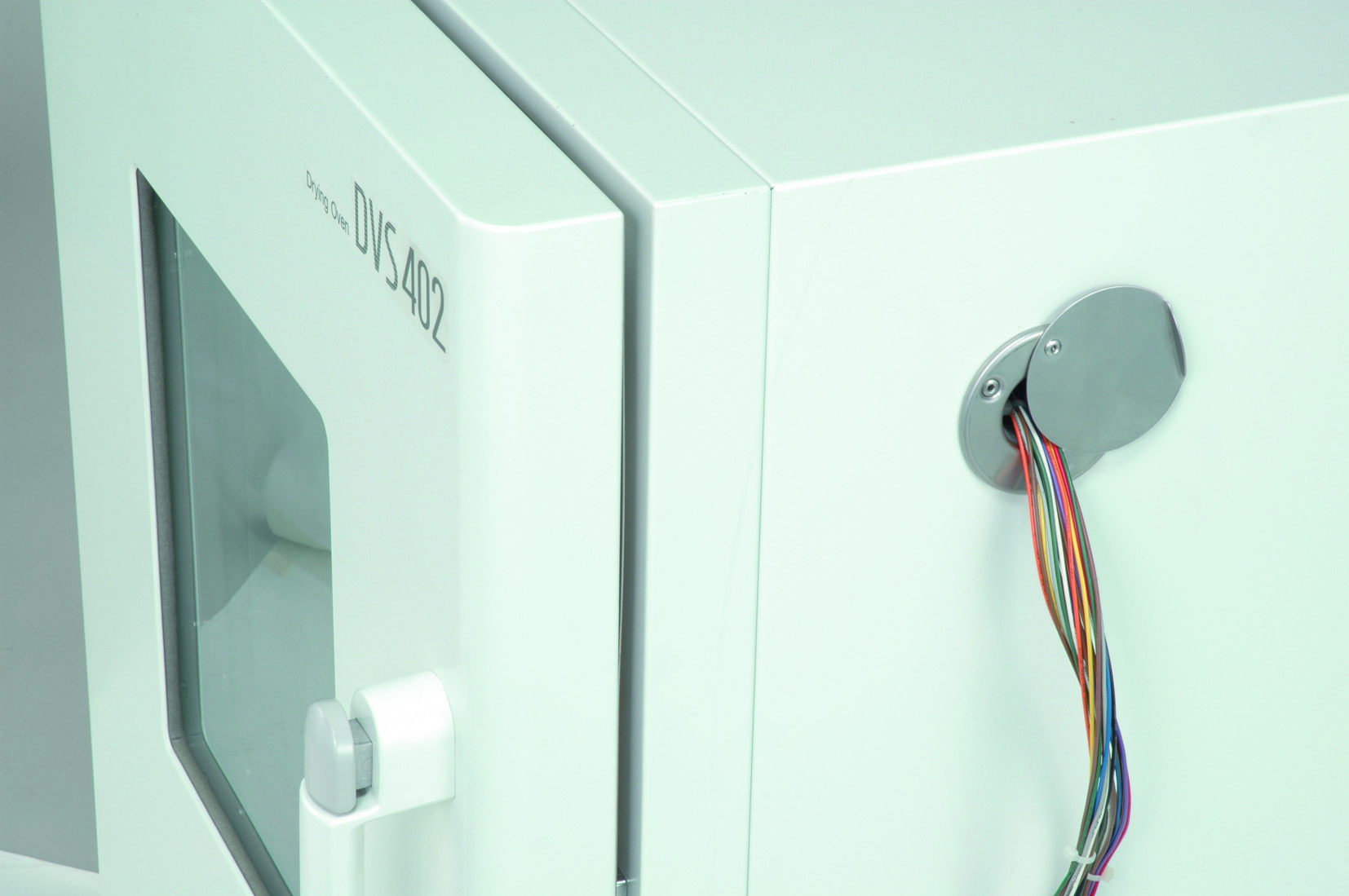

Cable hole 30mm I.D. (on the right side) 1pc.

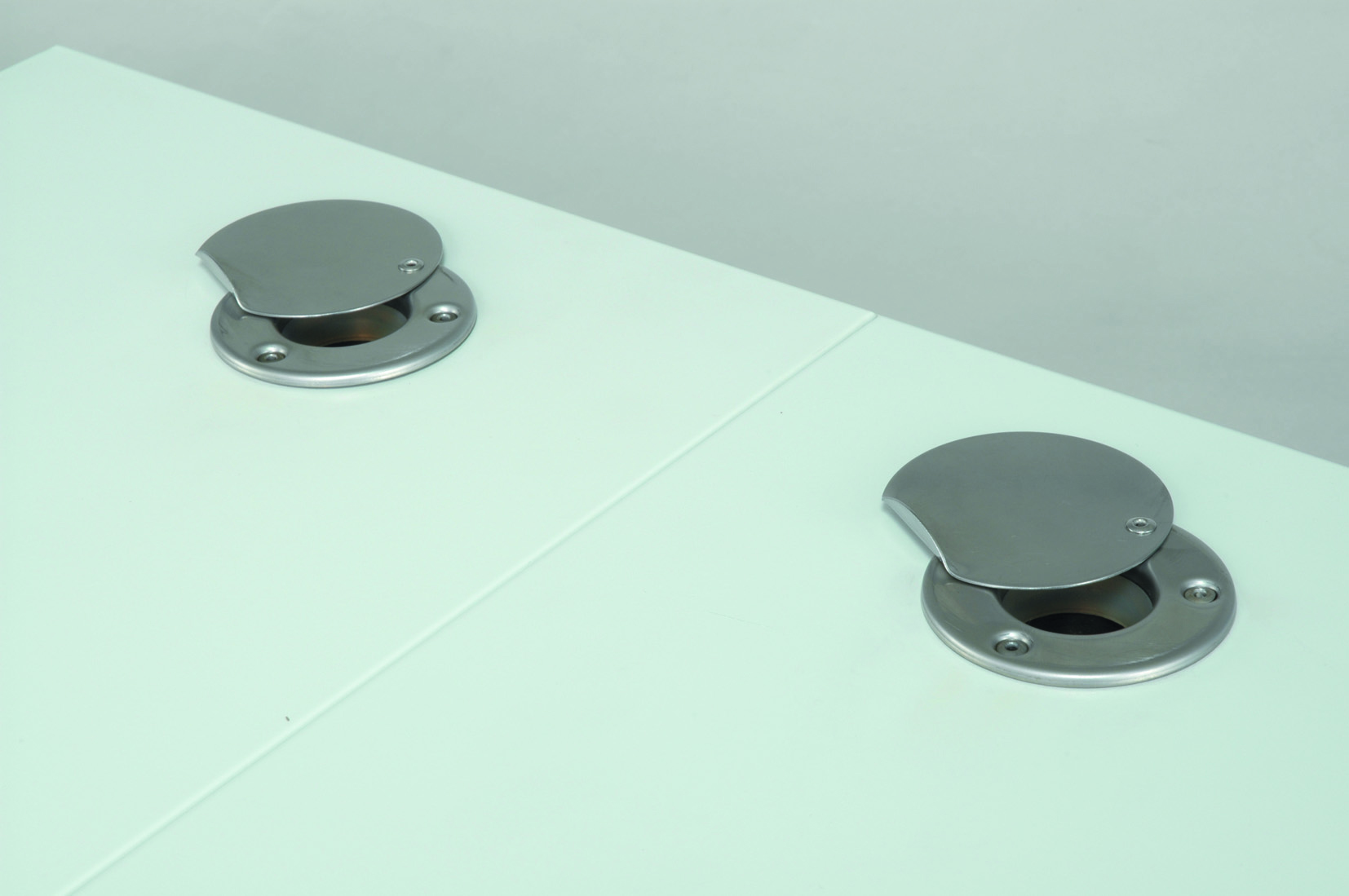

Exhaust port 30 mm l.D.×2 pcs.(on top)
Observation window 250×280mm Chemical strengthening glass x 3
Temp. controller PID control by microprocessor
Temp. setting method Digital setting by UP/DOWN key
Temp. display Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation function Fixed temperature operation, Program operation, Auto start, Quick Auto-stop
Program mode Program operation : 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function
Additional functions Calibration off-set function, Key lock, Uninterruptible power for memory
Heater circuit control SSR control
Sensor K-thermocouple
Safety device Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Shelf plate with standard load ~15kg/piece
Shelf support step number/pitch 11 steps / 30mm

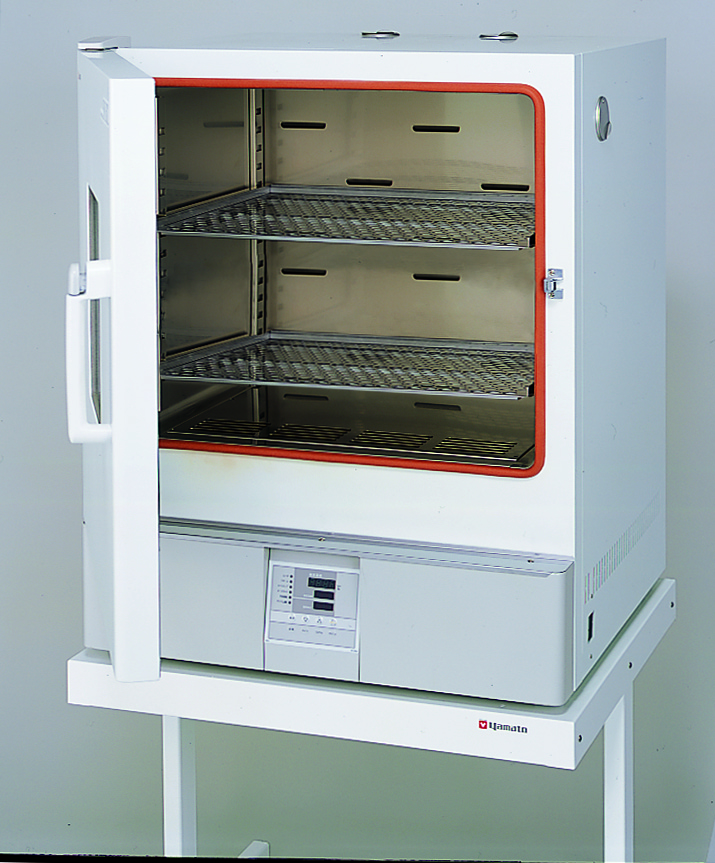

Shelf plate Stainless steel, 1pc on the bottom screwed
Shelf plate / support 2 pcs. / 4 pcs.
Internal dimensions(W×D×H mm) 450×450×450mm

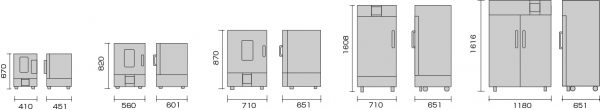

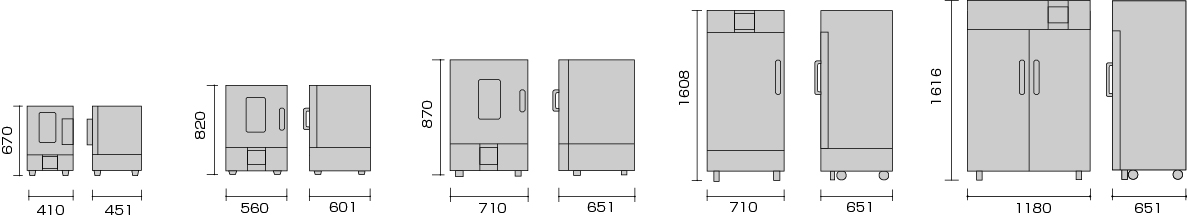

External dimensions(W×D×H mm) 560×601×820mm
Remarks(dimensions) 90L
Power Source AC220V 6A
Single-phase
Weight 50kg
SKU: DKN-402C/DKN-412C Categories: , Tags: , Brand:
Weight 110.23 lbs
Dimensions 23.66 × 22.05 × 32.28 in
Product

DKN-402C (Forced Convection Oven Programmable 90L 115V), DKN-412C (Forced Convection Oven Programmable 90L 220V)
