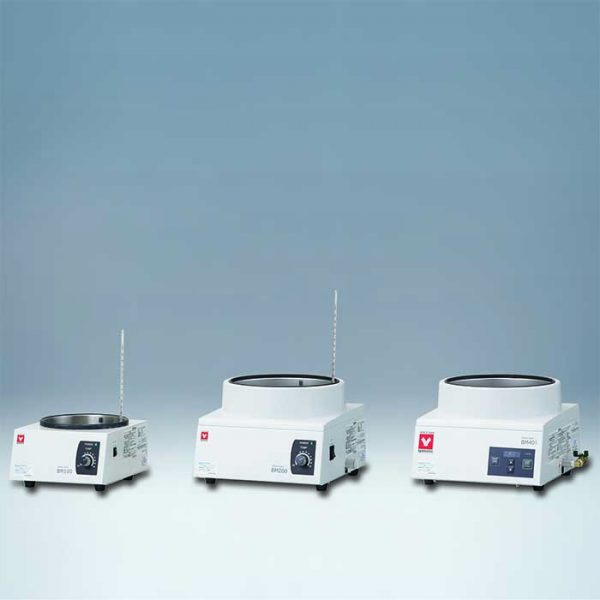

BM100/110/200/210/401/410/500/510 Water Bath Yamato
Easy to use, compact design water bath
$321.00 – $1,540.00
Easy to use, compact design water bath
Features
BM100/110/200/210
- Analog set up system
- Thermometer is included to verify actual temperature
- Protected water tank prevents burns caused by contact
- Equipped with a drain (BM200/210)
BM401/410
- Digital temperature setting by ▲▼ keys
- Protected water tank prevents burns caused by contact
- Equipped with a drain
BM500/510
- Digital temperature setting by ▲▼ keys
- Removable water tank for convenient cleaning and changing of water
- Heater situated outside the water tank
- Exclusive connection for bath operational setting function with RE601/801 rotary evaporator
| Model | BM100 BM110 |
BM200 BM210 |
BM401 BM410 |
BM500 BM510 |
|
| Operating Temp. Range *¹ | Room temp. +5~95°C *¹ | Room temp. +5~90°C | |||
| Temp. Adjustment Accuracy*² | ±2°C (at 60°C) | ±2°C (at 60°C) | ±1°C (at 60°C) | ±1.5°C (at agitation) | |
| Temp. Control System | ON/OFF control | ON/OFF control | PlD control by microprocessor | PlD control by microprocessor | |
| Temp. Setting / Display Method | Analog setting (Glass thermometer indication) | Analog setting (Glass thermometer indication) | Digital setting by ▲▼ keys | Digital 7 segment LED Digital setting by ▲▼ keys |
|
| Operation Function | Operation at fixed point | Operation at fixed point | Operation at fixed point | Fixed temperature, quick auto stop, auto stop, auto start | |
| Additional Functions | — | — | Temp. preset function (preset / select one temp.) | Keypad lock, maintenance function (RE signal transmission and reception), calibration off-set, power failure recovery | |
| Heater | SUS316 pipe heater 500W | SUS316 pipe heater 1kW | SUS316 pipe heater 1kW | 1kW (100V) / 1.44kW (120V) 1kW (200V) / 1.44kW (220V) |
|
| Sensor | Liquid expansion type | Liquid expansion type | Pt100Ω | K thermocouple | |
| Safety Device | Bath protection cover | Bath protection cover | Bath protection cover | Bath protection cover (ABS heat-resistant resin) | |
| Overcurrent protection (fuse: 7A), thermal fuse | Overcurrent protection (fuse: 15A), thermal fuse | Self-diagnostic functions (automatic overheat preven- tion, sensor trouble, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse | Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit, heater disconnecton, main relay failure), circuit protector, thermal fuse, micro switch to detect heating without water | ||
| Water Tank Capacity | ~4L | ~7L | ~7L | ~4L | |
| Water Tank Dimensions | ø200 x D120 mm | ø250 x D150 mm | ø250 x D150 mm | Max. ø240 x bottom ø165 x D122 mm | |
| External Dimensions WxDxH | 240 x 300 x 150 mm | 310 x 360 x 230 mm | 310 x 360 x 230 mm | 340 x 349 x 231 mm | |
| Weight | ~3.5kg | ~6kg | ~7kg | ~5.5kg | |
| Power Source (50/60 Hz) | AC115V 4.5A paddle switch AC220V 2.3A paddle switch |
AC115V 9A AC220V 4.5A |
AC115V 9A AC220V 4.5A |
AC100V~120V 12.5~10.5A AC200~240V 6.5~5.5A |
|
| Models | BM302A BM312A |
|
| Operating Temp. Range *¹ | Room temp. +10~90°C | |
| Temp. Adjustment Accuracy*² | ±1.0°C | |
| Temp. Control System | PlD control | |
| Temp. Setting / Display Method | White LED digital display, key entry, minimum digit of 1°C | |
| Operation Function | Operation at fixed point | |
| Additional Functions | – | |
| Heater | 1000W aluminum sheathed heater | |
| Sensor | Pt100Ω | |
| Safety Device | Bath protection cover | |
| Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse, Overshoot alert, Auto resume (selectable), calibration offset, 2A service outlet (for BM302A) |
||
| Water Tank Capacity | ~5L | |
| Water Tank Dimensions | ø262 x D286 | |
| External Dimensions WxDxH | 240 mm (H) | |
| Weight | ~4.5kg | |
| Power Source (50/60 Hz) | AC100-115V, 10-12A (service outlet excluded) AC200-230V, 5-6A |
|
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | BM100 (Compact Design Constant Temperature Water Bath Analog 4L 115V 4.5A 50/60hz), BM110 (Compact Design Constant Temperature Water Bath Analog 4L 230V 2.3A 50/60hz), BM200(Compact Design Constant Temperature Water Bath Analog 7L 115V 9A 50/60hz), BM210 (Compact Design Constant Temperature Water Bath Analog 7L 230V 4.5A 50/60hz), BM401 (Compact Design Constant Temperature Water Bath Digital 7L 115V 12A 50/60hz), BM500 (Compact Design Constant Temperature Water Bath Digital 4L 100-120V 10.5~12.5A 50/60hz), BM510 (Compact Design Constant Temperature Water Bath Digital 4L 200-240V 5.5~6.5A 50/60hz), BM302A (Compact Constant Temperature Water Bath Digital 5L, 100-115V), BM312A (Compact Constant Temperature Water Bath Digital 5L, 200-230V) |
