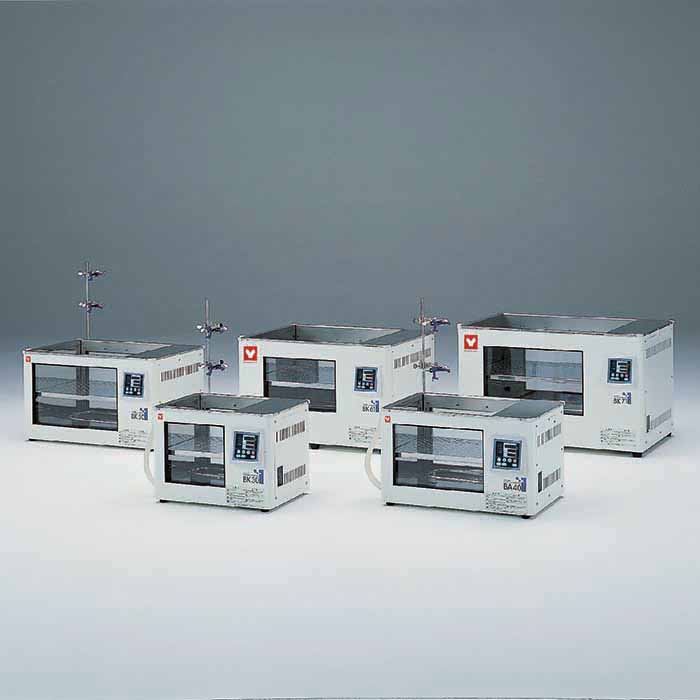

BK ∙ BA 300/400/500/610/710 Water Bath Yamato
Constant temperature agitating water bath
$2,723.00 – $7,125.00
Constant temperature agitating water bath
Features
Performance and functions
- BK series – Fixed temperature operation
- BA series – Program operation
- In addition to BK series function, BA series adopted controller with program operation function (1 pattern 30 steps or 2 pattern 15 steps)
- Tank capacity: 27L, 42L, 70L, 109L, 144L
- Extremely high degree of temperature adjustment precision achieved by adopting high-precision thermostat and circulation pump

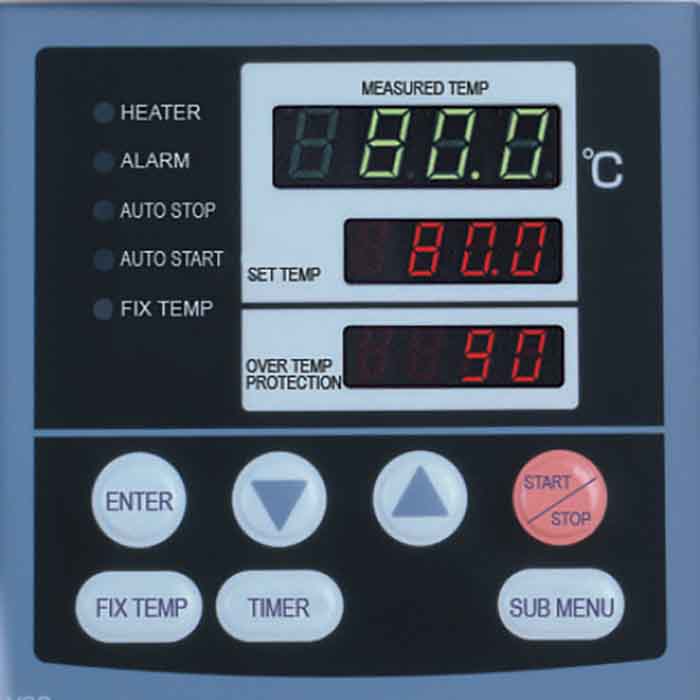

- Digital display setting and indicated value of temperature and time
- Equipped with observation window

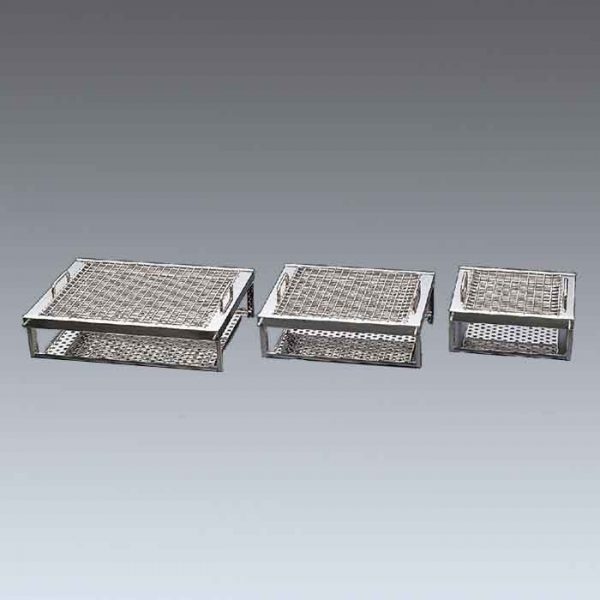

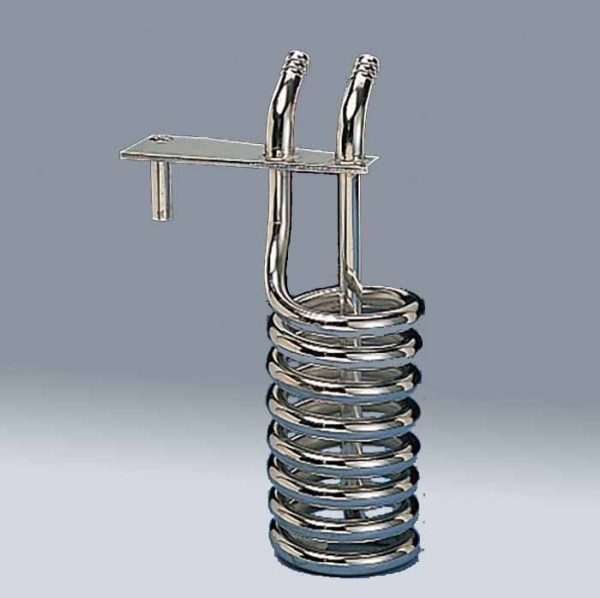

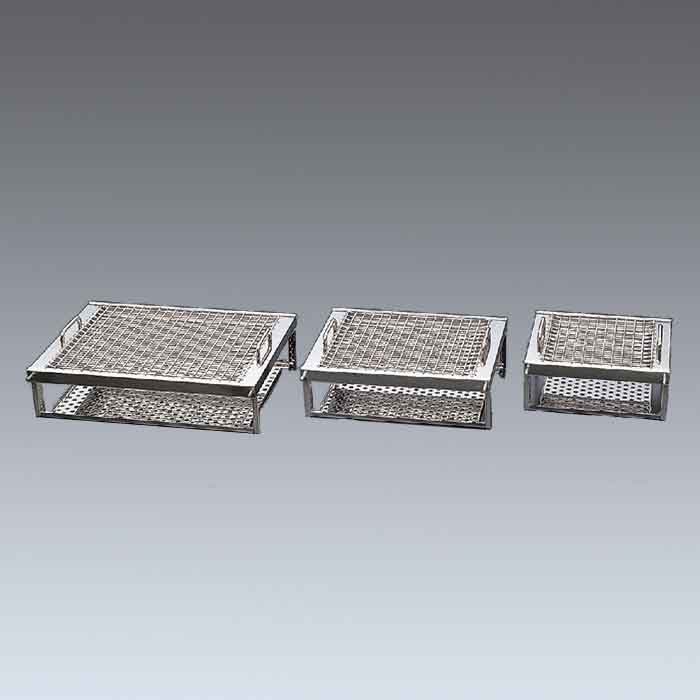

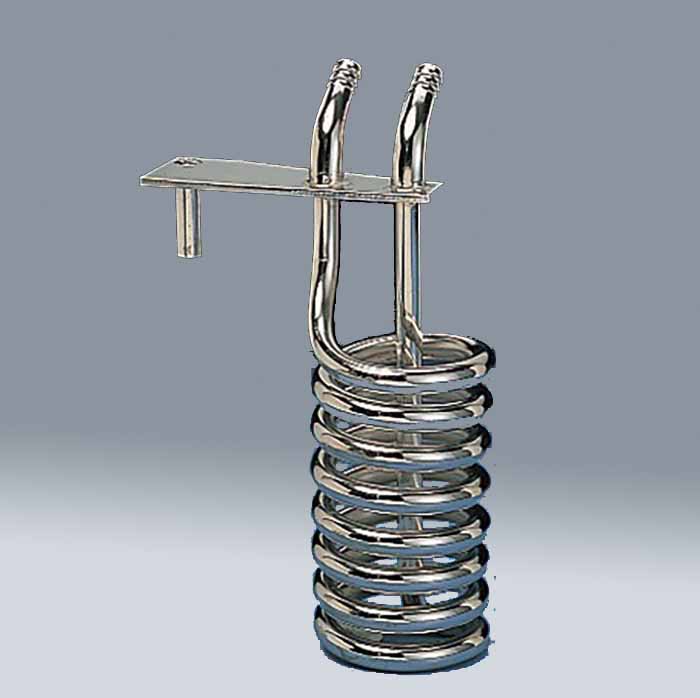

- Optional items include cooling coil, top cover, mounting rack, and viscosity meter support
| Model | BK300 BA300 |
BK400 BA400 |
BK500 BA500 |
BK610 BA610 |
BK710 BA710 |
|
| Timer | 1min.~99Hrs. 59min. to 999Hrs. 50mins, Digital setting, Auto start, Auto stop, Quick auto stop | |||||
| Stirring Method | Stir by pump | |||||
| Temp. Control Accuracy | ±0.02~±0.07°C | |||||
| Temp. Distribution Accuracy | ±0.3°C | |||||
| Max. Temp. Reaching Time | ~120min. | ~110min. | ~165min. | ~160min. | ~200min. | |
| Interior Material | Stainless steel and glass | |||||
| Temp. Controller | PID control by microprocessor (BK: Fixed temperature operation, BA: Fixed temperature and program operation, 1 pattern 30 steps or 2 pattern 15 steps) | |||||
| Sensor | W sensor: Pt resistance thermometer, Pt 100Ω (temp. controller) + K thermocouple (overheat protector) | |||||
| Temp. Setting / Display | Digital setting and display | |||||
| Overheat Protector | ON / OFF by microprocessor | |||||
| Heater (SUS316) | 1.3kW | 2.2kW | 2.4kW | 3.5kW | 4.5kW | |
| Stirring System (Magnet Pump) | 6W | 30W | 60W | |||
| Operating Temp. Range | RT+5~80°C | |||||
| Safety Device | Self-diagnostic functions (Heater disconnection, SSR short circuit, Abnormal sensor, Over current), Electric leakage breaker, Over heat protector | |||||
| Internal Dimensions WxDxH | 300 × 300 × 300 mm | 400 × 350 x 300 mm | 500 × 400 × 350 mm | 548 × 500 × 400 mm | 640 × 500 × 450 mm | |
| External Dimensions WxDxH | 490 × 360 × 367 mm | 590 × 410 × 367 mm | 690 × 460 × 417 mm | 738 × 560 × 467 mm | 830 × 560 × 517 mm | |
| Window Dimensions WxH | 240 × 215 mm | 340 × 215 mm | 440 × 265 mm | 340 × 215 mm | 440 × 265 mm | |
| Bath Capacity | ~27L | ~42L | ~70L | ~109L | ~144L | |
| Shelf Pitch | 30mm | |||||
| Number Of Plates | 5 | 6 | 9 | 10 | ||
| Drain Hose | ø15 × 20mm | |||||
| Power Source 50/60Hz | AC115V / AC220V | Single phase AC220V | ||||
| 12.5 / 6.5A | 20A / 10.5A | 22A / 11.5A | 17.5A | 23A | ||
| Weight | ~19kg | ~25kg | ~30kg | ~36kg | ~46kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | BK-300 (Agitating Water Bath 27L 115/220V), BK-400 (Agitating Water Bath 42L 115/220V), BK-500 (Agitating Water Bath 70L 115/220V), BK-610 (Agitating Water Bath 109L 220V), BK-710 (Agitating Water Bath 144L 220V), BA-300 (Prog Agitating Water Bath 27L 115/220V), BA-400 (Prog Agitating Water Bath 42L 115/220V), BA-500 (Prog Agitating Water Bath 70L 115/220V), BA-610 (Prog Agitating Water Bath 109L 220V), BA-710 (Prog Agitating Water Bath 144L 220V) |
