Baths, Laboratory Equipment

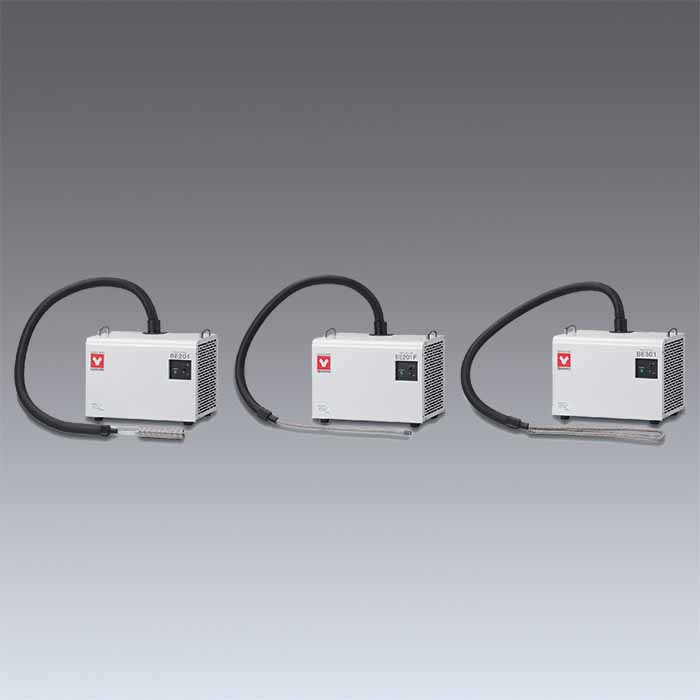

BE201/201F/301 Immersion Temperature Device Yamato
Easy to use compact benchtop immersion cooler in combination with water bath
$2,312.00 – $3,173.00
Easy to use compact benchtop immersion cooler in combination with water bath
Features
Performance and functions
- Cools down water bath immediately by dipping cooling coil into fluid
- Improved safety by adopting overcurrent circuit breaker

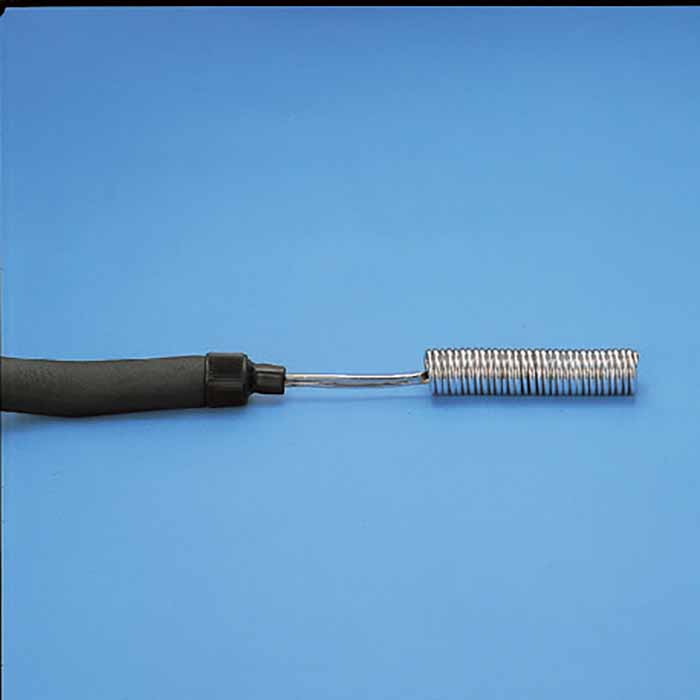

- Spiral tube of BE201 changed from copper to chrome plated copper with high corrosion resistance

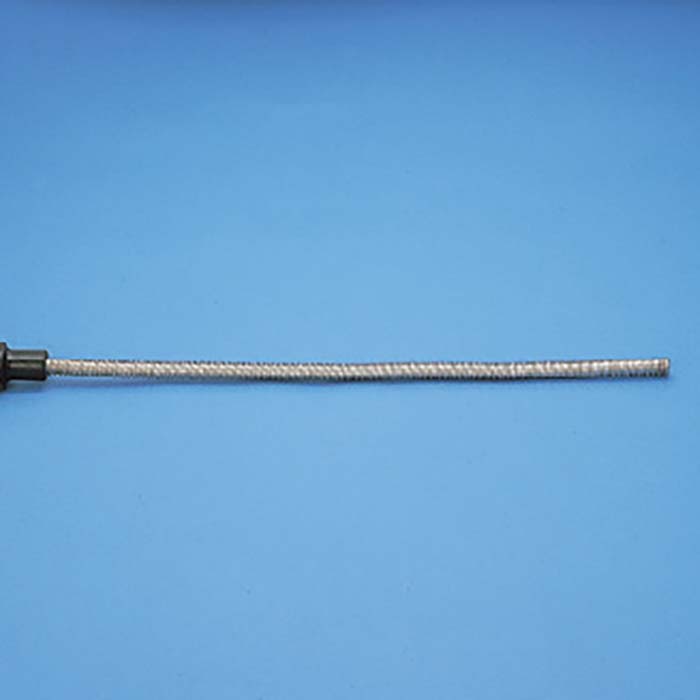

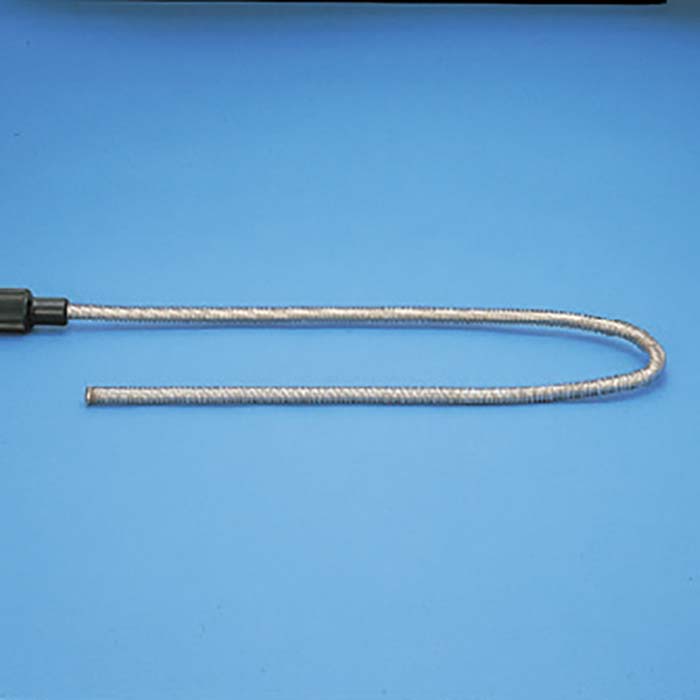

- Stainless steel flexible cooling coil of BE201F/301 is high corrosion resistant and can be easily bent to fit various bath capacities
- Comes with handles for better usability
| Model | BE201 | BE201F | BE301 | |
| Operating Temp. Range | -20~+35°C | -20~+35°C | -20~+35°C | |
| Ambient Temperature | +5~+35°C | +5~+35°C | +5~+35°C | |
| Cooling Capacity *¹ | 190W at 0°C | 190W at 0°C | 350W at 0°C | |
| Naiburain 60% 5L Room temp. 20°C | Naiburain 60% 10L Room temp. 20°C | |||
| Refrigerator | Reciprocating type 160W | Reciprocating type 400W | ||
| Refrigerant/Amount | R134a/110g | R134a/160g | R404A/170g | |
| Cooling Coil | Chrome plated copper | SUS304 | SUS304 | |
| Spiral tube | Flexible Tube | Flexible Tube | ||
| ø30x170mm (Winding O.D.xLength) | ø15x500mm (O.D.xLength) | ø15×1,000mm (O.D.xLength) | ||
| Power Source | AC115V 50/60Hz 3A/2A | AC115V 50/60Hz 3A/2A | AC115V 50/60Hz 5A/4.5A | |
| AC220V 50/60Hz 2A/1.5A | AC220V 50/60Hz 2A/1.5A | AC220V 50/60Hz 2.5A/2.5A | ||
| External Dimensions* | W410xD320xH303mm | W410xD320xH303mm | W410xD320xH303mm | |
| Weight | ~24kg | ~24kg | ~25kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | BE-201 (Immersion Cooler Spiral Tube 115/220V), BE-201F (Immersion Cooler Flex Tube 115/220V 190W), BE-301 (Immersion Cooler Flex Tube 115/220V 350W) |
