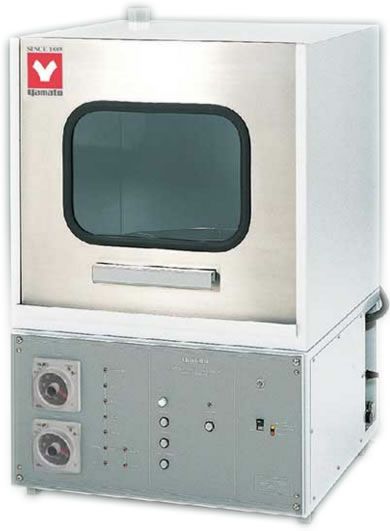

AW-62 Automatic Laboratory Glassware Washer 115V/220V Yamato
Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload
$14,685.00
Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload
Performance and functions
- All processes from wash to rinse are fully automatic. Each process is displayed on indicator
- Final rinse (option) with purified water available
- Water purifier connection is possible for pure water rinse process
- Wash process and time can be set according to glassware shape and contamination level
- Cleaning water temperature impacts final cleaning results. With built-in water heater, no boiler piping and water heating system are required
- Powerful upward and downward two-way pressurized water jet method
- Optional jet rack is available for hard to clean targets, such as glassware with narrow neck or body
| Model | AW47 | |
| Cleaning Method | Two direction pressurized water jet method, fixed jet nozzle | |
| Cleaning Cycle | Wash (setting range: 0~30min.) | |
| Rinse (setting range: 0~30min.) | ||
| Purified water rinse (optional) when connected with water purifier, Rinse clean with 20L purified water | ||
| Water Supply | Room temp. ~ 60°C | |
| Washing Water Temp. | 45~80°C | |
| Water Heater | Built-in heater 6kW | |
| Supply Water Pressure | 0.1~0.3MPa | |
| Glassware Stand | Spin table (Standard), racks (optional) | |
| Water Supply | Controlled by electromagnetic valve open/close, water level adjustable by water level control switch | |
| Water Drain | Natural drainage by water level gap | |
| Exterior Material* | Chrome-free electric galvanized steel plate, chemical-resistant paint | |
| Interior Material | Stainless steel | |
| External Dimensions | W600 x D620 x H940mm | |
| Internal Dimensions | W594 x D572 x H564mm, effective height: 345mm | |
| Spin Table | Dia. 550mm (max. load bearing: 25kg) | |
| Pump | Three phase AC220V 250W | |
| Door | Drop down style (can stop at any position) | |
| Weight | ~90kg | |
| Power Source (50/60Hz) | Three phase AC220V 17A with external transformer |
|
| Consumable | Phosphorus-free detergent | |
AW-62
| Weight | 200 lbs |
|---|---|
| Dimensions | 34 × 34 × 47 in |
