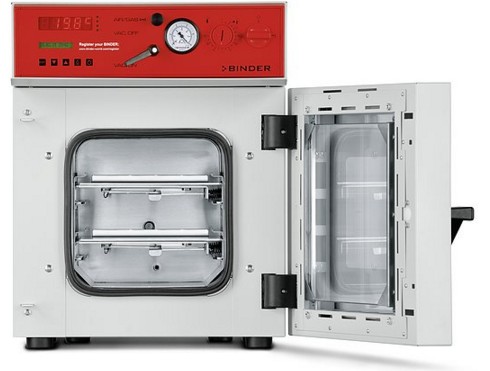

9030-0035,9030-0029 VD 23 Vacuum Drying Chamber, 23L Binder
A BINDER vacuum drying oven VD series gently dries materials with homogeneous temperature distribution. The patented expansion shelf technology from BINDER ensures optimal heat transfer.
$11,092.00 – $11,198.00
A BINDER vacuum drying oven VD series gently dries materials with homogeneous temperature distribution. The patented expansion shelf technology from BINDER ensures optimal heat transfer. The shelves are easy to position where required and the inner chamber of the vacuum drying oven is easy to clean.
Important characteristics
- Temperature range: room temperature plus 15 °C to 200 °C
- APT.line™ preheating chamber technology
- Controller with time-segment and real-time programming
- 2 aluminum expansion racks
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422
- 2 relay outputs, 24 V DC (max. 0.4 A)
| Designation | VD023-230V¹ | VD023UL-120V¹ |
| Option model | Standard | Standard |
| Order number | 9030-0029 | 9030-0035 |
| Measures | ||
| Interior volume [L] | 23 | 23 |
| Net weight of the unit (empty) [kg] | 63 | 63 |
| permitted load [kg] | 35 | 35 |
| Load per rack [kg] | 20 | 20 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 285 | 285 |
| Height [mm] | 285 | 285 |
| Depth [mm] | 295 | 295 |
| Outer dimensions | ||
| Width net [mm] | 515 | 515 |
| Height net [mm] | 665 | 665 |
| Depth net [mm] | 500 | 500 |
| Wall clearance sidewise [mm] | 135 | 135 |
| Wall clearance back [mm] | 100 | 100 |
| Viewing window width [mm] | 250 | 250 |
| Viewing window height [mm] | 207 | 207 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/4 | 2/4 |
| Performance Data Temperature | ||
| Temperature range 15 °C above ambient temperature to [°C] | 200 | 200 |
| Temperature variation at 100 °C [± K] | 1.5 | 1.5 |
| Temperature fluctuation [± K] | 0,1 ± K | 0,1 ± K |
| Heating-up time to 100 °C [min] | 65 | 65 |
| Vacuum Data | ||
| Permitted end vacuum [mbar] | 0.01 | 0.01 |
| Leak rate [bar/h] | 0.01 | 0.01 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 120 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 0.8 | 0.8 |
| Unit fuse [A] | 10 | 10 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Connections | ||
| Vacuum connection with small flange [DN mm] | 16 | 16 |
| Measuring access port with small flange [DN mm] | 16 | 16 |
| Inert gas connection with flow limiter (RP”) | 3/8 | 3/8 |
| Weight | 138.9 lbs |
|---|---|
| Dimensions | 19.7 × 20.3 × 26.2 in |
| Product | 9030-0035(VD 23 Vacuum Drying Chamber, 23L, 120V/60 Hz/1 ph), 9030-0029(VD 23 Vacuum Drying Chamber, 23L, 230V/50-60 Hz/1 ph) |
