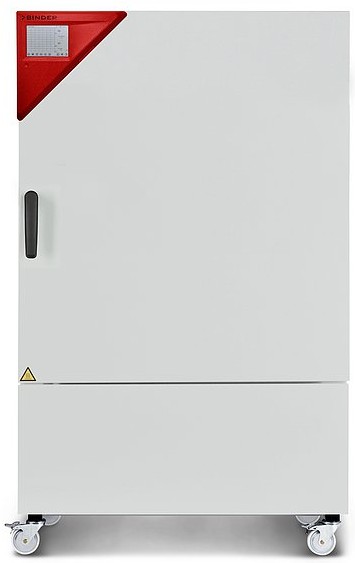

9020-0338 KBW 240 Growth Chamber with Light, 247L, 200-240V/50Hz/1 ph Binder
The KBW series climate chamber with illumination achieves homogeneous light distribution and ensures consistent temperature conditions with its natural illumination.
$19,329.00
The KBW series climate chamber with illumination achieves homogeneous light distribution and ensures consistent temperature conditions with its natural illumination.
Important characteristics
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 5 °C to 60 °C
- 2 positionable illumination cassettes, each with 5 fluorescent tubes
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Intuitive touchscreen controller with time-segment and real-time programming with internal data recording
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
| Designation | KBW240-230V¹ | |
| Option model | Standard | |
| Order number | 9020-0338 | |
| Measures | ||
| Interior volume [L] | 247 | |
| Net weight of the unit (empty) [kg] | 195 | |
| permitted load [kg] | 100 | |
| Load per rack [kg] | 30 | |
| Doors | ||
| Inner doors | 1 | |
| Unit doors | 1 | |
| Internal Dimensions | ||
| Width [mm] | 650 | |
| Height [mm] | 785 | |
| Depth [mm] | 485 | |
| Outer dimensions | ||
| Width net [mm] | 925 | |
| Height net [mm] | 1465 | |
| Depth net [mm] | 800 | |
| Wall clearance sidewise [mm] | 100 | |
| Wall clearance back [mm] | 100 | |
| Environment-specific data | ||
| Energy consumption at 37 °C and with illumination [Wh/h] | 450 | |
| Sound-pressure level [dB(A)] | 53 | |
| Fixtures | ||
| Number of shelves (std./max.) | 2/7 | |
| Number of illumination cassettes (std./max.) | 2/2 | |
| Performance Data Temperature | ||
| Temperature range without illumination cassettes [°C] | 0…70 | |
| Temperature range with 100% illumination [°C] | 5…60 | |
| Temperature variation without illumination cassettes [± K] | 0.5 | |
| Temperature variation with 100% illumination [± K] | 0.5 | |
| Temperature fluctuation without illumination cassettes [± K] | 0.1 | |
| Temperature fluctuation with 100% illumination [± K] | 0.2 | |
| Lightdata per Illumination Cassettes | ||
| Daylight tubes [W/m²]* | 24 | |
| Daylight tubes [lx]* | 9000 | |
| Fluora® growth lamps [W/m²]* | 23 | |
| Fluora® growth lamps [lx]* | 7500 | |
| Arabidopsis lamps [W/m²]* | 32 | |
| Arabidopsis lamps [lx]* | 11000 | |
| Electrical data | ||
| Rated Voltage [V] | 200…240 | |
| Power frequency [Hz] | 50 | |
| Nominal power [kW] | 1.4 | |
| Unit fuse [A] | 16 | |
| Phase (Nominal voltage) [ph] | 1 | |
| Weight | 430 lbs |
|---|---|
| Dimensions | 31.5 × 36.5 × 57.7 in |
