9020-0330,9020-0331 KBF P 720 Constant Climate Chamber Binder


Compare

The KBF P constant climate chamber, equipped with ICH-compliant light source, is an expert when it comes to photostability tests and ensures clear test results in accordance with ICH Guideline Q1B.

$32,448.00

Clear

The KBF P constant climate chamber, equipped with ICH-compliant light source, is an expert when it comes to photostability tests and ensures clear test
results in accordance with ICH Guideline Q1B. At the same time, the variable-position illumination cassettes offer homogeneous lighting conditions.

Important characteristics

  • Temperature range: 0 °C to 70 °C
  • Temperature range with light: 10 °C to 60 °C
  • Humidity range: 10 % to 80 % RH
  • 3 positionable illumination cassettes with ICH-compliant UV/Vis light source
  • APT.line™ preheating chamber technology
  • Humidity regulation with capacitive humidity sensor and vapor humidification
  • Inner chamber made of stainless steel
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Tight-sealing inner door made of safety glass (ESG)
  • Avoidance of glass corrosion by special TIMELESS coating
  • 3 stainless steel racks
  • Access port with silicone plug, 30 mm, left
  • 4 stable castors, two with brakes
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Computer interface: Ethernet
  • Door heating
Designation KBFP720-230V¹ KBFP720UL-240V¹
Option model Standard Standard
Order number 9020-0330 9020-0331
Measures
Interior volume [L] 700 700
Net weight of the unit (empty) [kg] 374 374
permitted load [kg] 150 150
Load per rack [kg] 45 45
Doors
Inner doors 2 2
Unit doors 2 2
Internal Dimensions
Width [mm] 973 973
Height [mm] 1250 1250
Depth [mm] 576 576

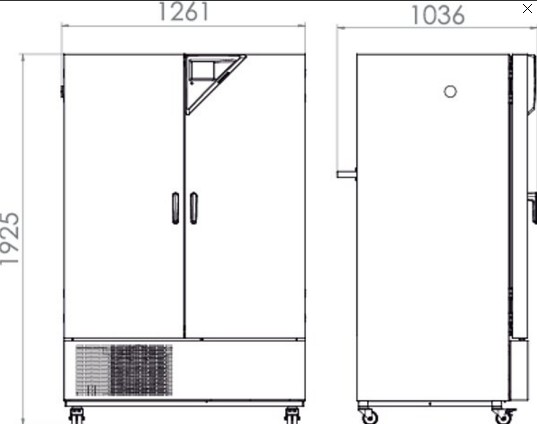

Outer dimensions
Width net [mm] 1250 1250
Height net [mm] 1925 1925
Depth net [mm] 890 890
Wall clearance sidewise [mm] 200 200
Wall clearance back [mm] 100 100
Environment-specific data
Energy consumption at 40 °C and 75 % RH [Wh/h] 1850 1850
Sound-pressure level [dB(A)] 53 53
Fixtures
Number of shelves (std./max.) 3/12 3/12
Net weight of the unit (empty) [lbs] 01 01
Number of illumination cassettes (std./max.) 3/3 3/3
Performance Data Temperature
Temperature range without illumination cassettes [°C] 0…70 0…70
Temperature range with 100% illumination [°C] 10…60 10…60
Max. heat compensation at 40 °C with illumination [W] 1000 1000
Performance Data Climate
Temperature range with 100% illumination [°C] 20…60 20…60
Temperature range without illumination cassettes [°C] 10…70 10…70
Temperature variation with illumination at 40 °C and 75 % RH [± K] 1.2 1.2
Temperature variation with illumination at 25 °C and 60 % RH [± K] 1.2 1.2
Temperature fluctuation with illumination at 25 °C and 60 % RH [± K] 1.2 1.2
Temperature fluctuation with illumination at 40 °C and 75 % RH [± K] 0.2 0.2
Humidity range with illumination cassettes, with illumination [% RH] 10…75 10…75
Humidity range without illumination [% RH] 10…80 10…80
Humidity fluctuation with illumination at 40 °C and 75 % RH [± % RH] 2 2
Humidity fluctuation with illumination at 25 °C and 60 % RH [± % RH] 2 2
Humidty recovery time after 30 s door open at 40 °C and 75 % RH with illumination [min] 5 5
Humidty recovery time after 30 s door open at 25 °C and 60 % RH with illumination [min] 4 4
Lightdata per Illumination Cassettes
ICH compliant illumination for photo stability testing [lx]* 9000 9000
ICH compliant illumination for photo stability testing [W/m²]* 1.5 1.5
Electrical data
Rated Voltage [V] 200…230 200…240
Power frequency [Hz] 50/60 50/60
Nominal power [kW] 3.5 3.5
Unit fuse [A] 16 16
Phase (Nominal voltage) [ph] 1 1
SKU: 9020-0330,9020-0331 Categories: , Tags: , , , Brand:
Weight 824.6 lbs
Dimensions 35.1 × 49.3 × 75.8 in
Product

9020-0330(KBF P 720 Constant Climate Chamber, 200-230V 50Hz), 9020-0331(KBF P 720 Constant Climate Chamber, 200-240V 50/60Hz)
