9020-0306,9020-0204 KB 720 Cooling Incubator, 698L Binder
The most versatile among the cooled incubators for microorganisms: The BINDER KB series cooled incubator controls temperature ranges of -5 °C to 100 °C.
$19,133.00
The most versatile among the cooled incubators for microorganisms: The BINDER KB series cooled incubator controls temperature ranges of -5 °C to 100 °C. With its comprehensive program functions, this cooled incubator offers a wide range of capabilities and delivers reproducible test results.
- Temperature range: -5 °C to 100 °C
- APT.line™ preheating chamber technology
- Up to 30% lower energy consumption compared to the previous model
- Cooling with compressor cooling unit
- Door heating
- Adjustable fan speed
- Controller with time-segment and real-time programming
- Inner door made of tempered safety glass
- 2 stainless steel racks
- 4 casters, two with locking brakes
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
- Computer interface: Ethernet
| Designation | KB720-230V¹ | KB720UL-240V¹ |
| Option model | Standard | Standard |
| Order number | 9020-0204 | 9020-0306 |
| Measures | ||
| Interior volume [L] | 698 | 698 |
| Net weight of the unit (empty) [kg] | 304 | 304 |
| permitted load [kg] | 150 | 150 |
| Load per rack [kg] | 45 | 45 |
| Doors | ||
| Inner doors | 2 | 2 |
| Unit doors | 2 | 2 |
| Internal Dimensions | ||
| Width [mm] | 970 | 970 |
| Height [mm] | 1250 | 1250 |
| Depth [mm] | 576 | 576 |

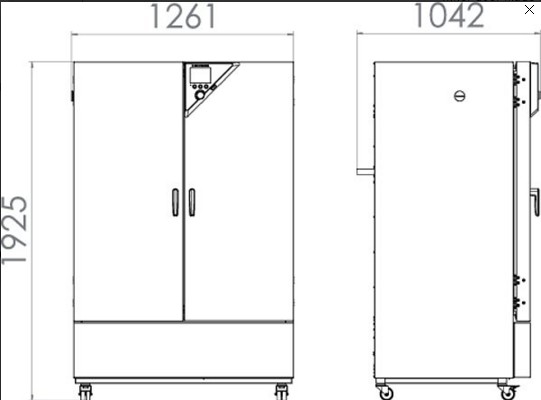

| Outer dimensions | ||
| Width net [mm] | 1250 | 1250 |
| Height net [mm] | 1925 | 1925 |
| Depth net [mm] | 885 | 885 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 100 | 100 |
| Environment-specific data | ||
| Energy consumption at 37 °C [Wh/h] | 360 | 360 |
| Sound-pressure level [dB(A)] | 53 | 53 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/15 | 2/15 |
| Performance Data Temperature | ||
| Temperature range [°C] | -5…100 | -5…100 |
| Temperature variation at 37 °C [± K] | 0.2 | 0.2 |
| Temperature fluctuation at 37 °C [± K] | 0,1 ± K | 0,1 ± K |
| Recovery time after 30 seconds door open at 37 °C [min] | 3 | 3 |
| Electrical data | ||
| Rated Voltage [V] | 200…240 | 200…240 |
| Power frequency [Hz] | 50/60 | 50/60 |
| Nominal power [kW] | 0 | 2.3 |
| Unit fuse [A] | 16 | 16 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 670.3 lbs |
|---|---|
| Dimensions | 34.9 × 49.3 × 75.8 in |
| Product | 9020-0306(KB 720 Cooling Incubator, 698L, 200-240V/50-60Hz UL), 9020-0204(KB 720 Cooling Incubator, 698L, 200-240V/50-60Hz) |
