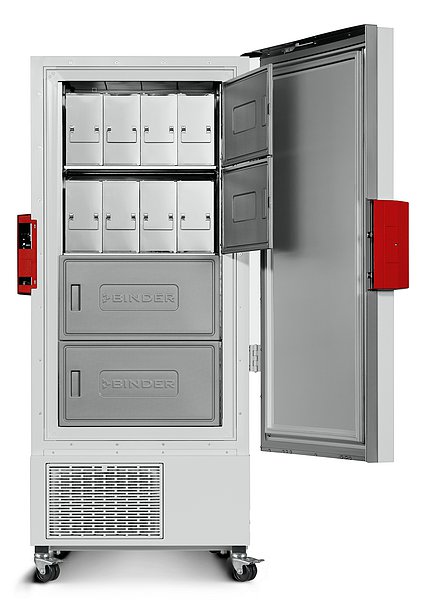

9020-0235/9020-0222/9020-0234/9020-0220 Ultra.Guard™ Ultra Low Temperature Freezer UF V 500 Binder
An ultra low temperature freezer must reliably cool to maintain the value of the samples. This crucial laboratory requirement is supplemented by the necessity of a practical and user-oriented safety and control concept, e. G. By the effortless traceability of the temperature profile throughout the storage period or opening of the chamber easily.
$19,073.00 – $19,391.00
| Description | Voltage | Volume | Exterior Dimensions | Interior Dimensions | Temperature Range | Catalog Number | |
| UF 500 Freezer, Right Hinge | 115V, 60 Hz | 500 L (17.6 cu. ft.) | 90 x 197 x 93.5 cm (35.4 x 77.6 x 36.8″) | 62 x 130 x 60 cm (24.4 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0235 | |
| UF 500 Freezer, Left Hinge | 115V, 60 Hz | 500 L (17.6 cu. ft.) | 90 x 197 x 93.5 cm (35.4 x 77.6 x 36.8″) | 62 x 130 x 60 cm (24.4 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0222 | |
| UF 500 Freezer, Right Hinge | 200–240V, 60Hz | 500 L (17.6 cu. ft.) | 90 x 197 x 93.5 cm (35.4 x 77.6 x 36.8″) | 62 x 130 x 60 cm (24.4 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0234 | |
| UF 500 Freezer, Left Hinge | 200–240V, 60Hz | 500 L (17.6 cu. ft.) | 90 x 197 x 93.5 cm (35.4 x 77.6 x 36.8″) | 62 x 130 x 60 cm (24.4 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0220 | |
- GUARD.CONTROL automatic door mechanism for easy opening and closing.
- PDF data logger for temperature recording with USB port.
- Vacuum Insulation Panels (VIP) on 5 sides.
- Two-stage cascade refrigeration system with hermetically-sealed compressors.
- User-friendly microprocessor controller with easy to read LED displayEasy to read digital display.
- Alarm test system.
- Non-flammable refrigerant, CFC-free, proven industrial standard.
- Built-in visual and audible alarm system visual and audible alarm system.
- Power failure, temperature alarm, battery alarm.
- Temperature range: -86 °C to -40 °C /-122.8 °F to -40 °F.
- Battery back-up systemProvides full functionality of alarm functions in case of power failure for 72 hours.
- Improved battery life due to controlled charging.
- Heated duplex door gasket reduces icing.
- Multiple standard communication interfaces:RS 422 interface.
- Zero-voltage relay alarm output.
- Analog output 4-20 mA.
- Inner chamber made of high-quality stainless steel.
- Robust, adjustable and lockable casters.
- Easy front access for air filter cleaning.
- SERVICE.PRO 2-year warranty plus 4 year warranty extension.
- BINDER test confirmation.
| UF V 500 | ||

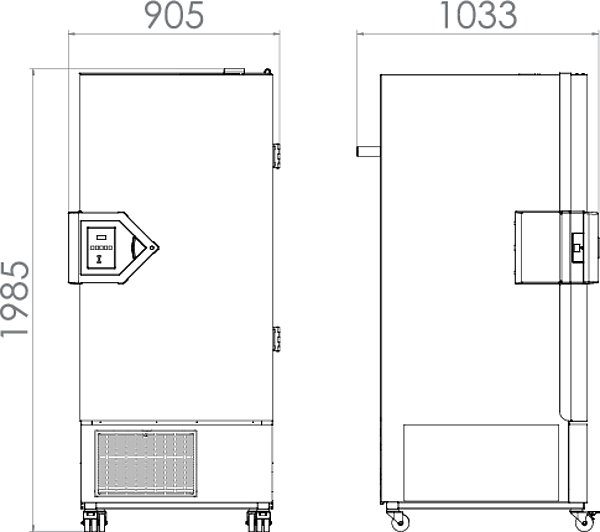

| Exterior dimensions | ||
| Width including hinges, housing of door lock and controller (mm/inch) | 900 / 35.43 | |
| Height including vertically adjustable castors (mm/inch) | 1970 / 77.56 | |
| Depth (mm/inch) | 890 / 35.04 | |
| Depth including power connection, housing of door lock and controller (mm/inch) | 940 / 37.01 | |
| Wall clearance rear (mm/inch) | 100 / 3.94 | |
| Wall clearance side (side without hinges) (mm/inch) | 100 / 3.94 | |
| Wall clearance side (side with hinges) (mm/inch) | 245 / 9.65 | |
| Interior dimensions | ||
| Number of compartments | 4 | |
| Number of shelves | 3 | |
| Width of interior (mm/inch) | 619 / 24.37 | |
| Width of shelf (mm/inch) | 588 / 23.15 | |
| Height of interior (mm/inch) | 1300 /51.18 | |
| Depth of interior / Depth of shelf (mm/inch) | 600 / 23.62 | |
| Interior volume, total (l/cu.ft.) | 483 /17.06 | |
| Permitted load of individual compartment (kg/lbs.) | 50 / 110 | |
| Permitted total load (kg/lbs.) | 200 / 442 | |
| Weight of the unit (empty) (kg/lbs.) | 320 / 706 | |
| Temperature data | ||
| Control range (°C/°F) | -86 to -40 / -122 to -40 | |
| Setting range (°C/°F) | -90 to -40 / -130 to -40 | |
| Average temperature variation (±K) 3) | 2.5 | |

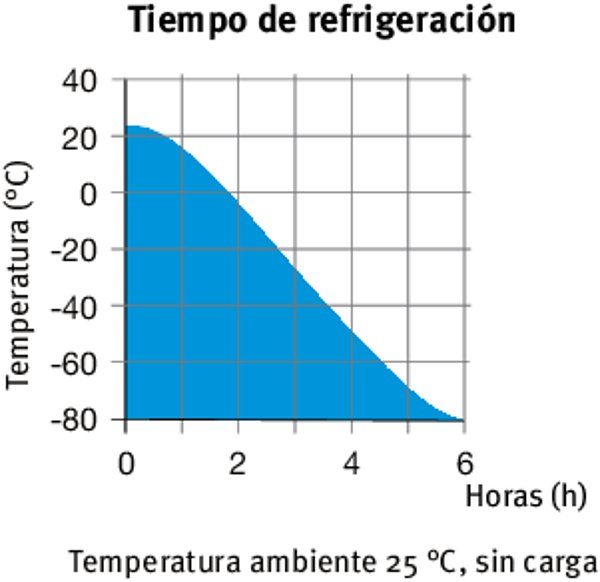

| Cooling down time from +25 °C (77 °F) to -80 °C (-112 °F) (h) 1) | 5 | |

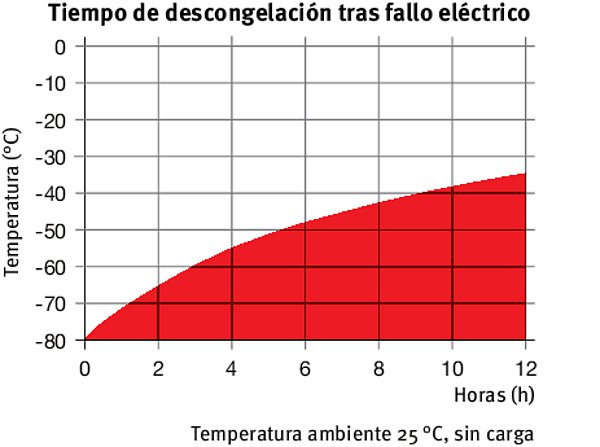

| Heating up time in case of power failure from -80 °C (-112 °F) to -60 °C (-76 °F) (h) | 3 | |
| Electrical data | ||
| IP protection class according to EN 60529 | 20 | |
| Nominal voltage (±10 %) 60 Hz (V) | 115 / 208-240 | |
| Energy consumption at -80 °C (-112 °F) and Tu = 25 °C (77 °F) (KWh/day) | 12.8 | |
| Average heat dissipation at set value -80 °C (-112 °F) and Tu = 25 °C (77 °F) (W) 2) | 535 | |
| Noise level (dB(A)) | 49 | |
| Weight | 706 lbs |
|---|---|
| Dimensions | 36.8 × 35.4 × 77.6 in |
| Product | 9020-0235, 115 V right hinged door, 9020-0222, 115V left hinged door, 9020-0234 ,220V right hinged door, 9020-0220, 220V left hinged door |
