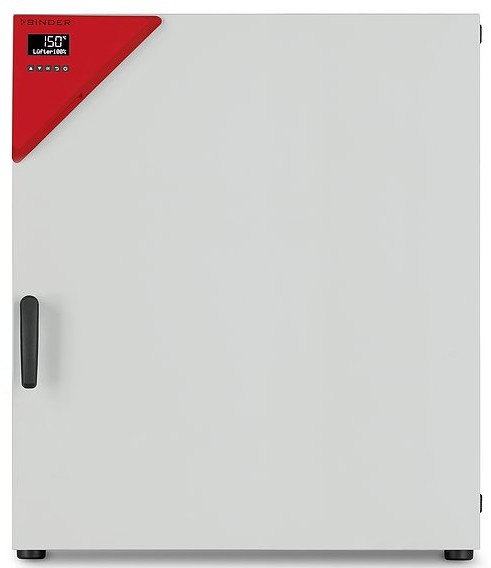

9010-0339,9010-0340 ED 260 Drying & Heating Chamber, 260 Binder


Compare

The strengths of a drying chamber of the BINDER ED series are the routine drying and sterilization tasks at temperatures of up to 300 ° C.

$5,048.00

Clear

The strengths of a drying chamber of the BINDER ED series are the routine drying and sterilization tasks at temperatures of up to 300 ° C. Thanks to natural convection, in this drying chamber all thermal processes are developed with maximum efficiency. The ED series provides fast and homogeneous drying.

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line™ technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap

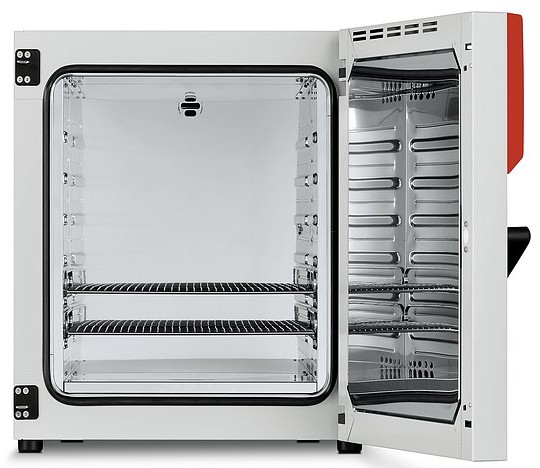

  • 2 chrome-plated racks
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data
Designation ED260-230V¹ ED260UL-240V¹
Option model Standard Standard
Order number 9010-0339 9010-0340
Measures
Interior volume [L] 255 255
Net weight of the unit (empty) [kg] 85 85
permitted load [kg] 270 270
Load per rack [kg] 40 40
Doors
Unit doors 1 1
Internal Dimensions
Width [mm] 610 610
Height [mm] 760 760
Depth [mm] 550 550

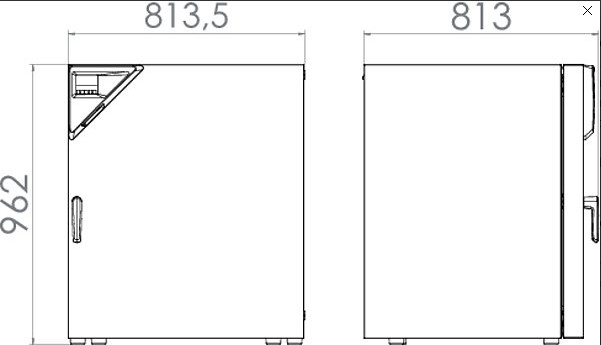

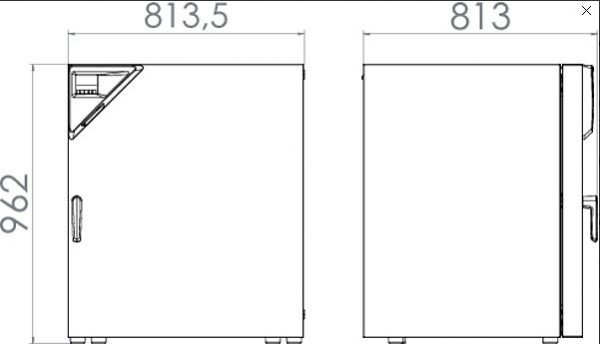

Outer dimensions
Width net [mm] 810 810
Height net [mm] 965 965
Depth net [mm] 760 760
Wall clearance sidewise [mm] 100 100
Wall clearance back [mm] 160 160
Environment-specific data
Energy consumption at 150 °C [Wh/h] 355 355
Fixtures
Number of shelves (std./max.) 2/8 2/8
Performance Data Temperature
Temperature range 5 °C above ambient temperature to [°C] 300 300
Temperature variation at 150 °C [± K] 1.8 1.8
Temperature fluctuation at 150 °C [± K] 0.8 0.8
Heating-up time to 150 °C [min] 50 50
Recovery time after 30 seconds door open at 150 °C [min] 20 20
Electrical data
Rated Voltage [V] 230 240
Power frequency [Hz] 50/60 60
Nominal power [kW] 2.25 2.45
Unit fuse [A] 12.5 16
Phase (Nominal voltage) [ph] 1 1
SKU: 339,9010-0340 Categories: , Tags: , , , Brand:
Weight 187.4 lbs
Dimensions 30 × 31.9 × 38 in
Product

9010-0339(ED 260 Drying & Heating Chamber, 260L, 230V/50-60Hz), 9010-0340(ED 260 Drying & Heating Chamber, 260L, 240V/60Hz)
